6MHz, 600mA Synchronous Step-Down Regulator,SGM6032 Replace TPS62623.
SGM6032
SGM6032.pdf
SGM6032.pdfFEATURES
? 600mA Output Current Capability
? 22μA Typical Quiescent Current
? 6MHz Fixed Frequency Operation
? Best-in-Class Load Transient Response
? Best-in-Class Efficiency
? 2.5V to 5.5V Input Voltage Range
? Output Voltages: 0.6V, 0.8V, 1.0V, 1.1V, 1.15V, 1.2V,
1.5V, 1.6V, 1.8V, 2.5V, 2.8V, 3.0V and 3.3V
? Low Ripple Light-Load PFM Mode
? Internal Soft-Start
? Input Under-Voltage Lockout (UVLO)
? Thermal Shutdown and Overload Protection
? Output Discharge
? Available in Green TDFN-2×2-6L and
WLCSP-1.21×0.81-6B Packages
? -40℃ to +85℃ Operating Temperature Range

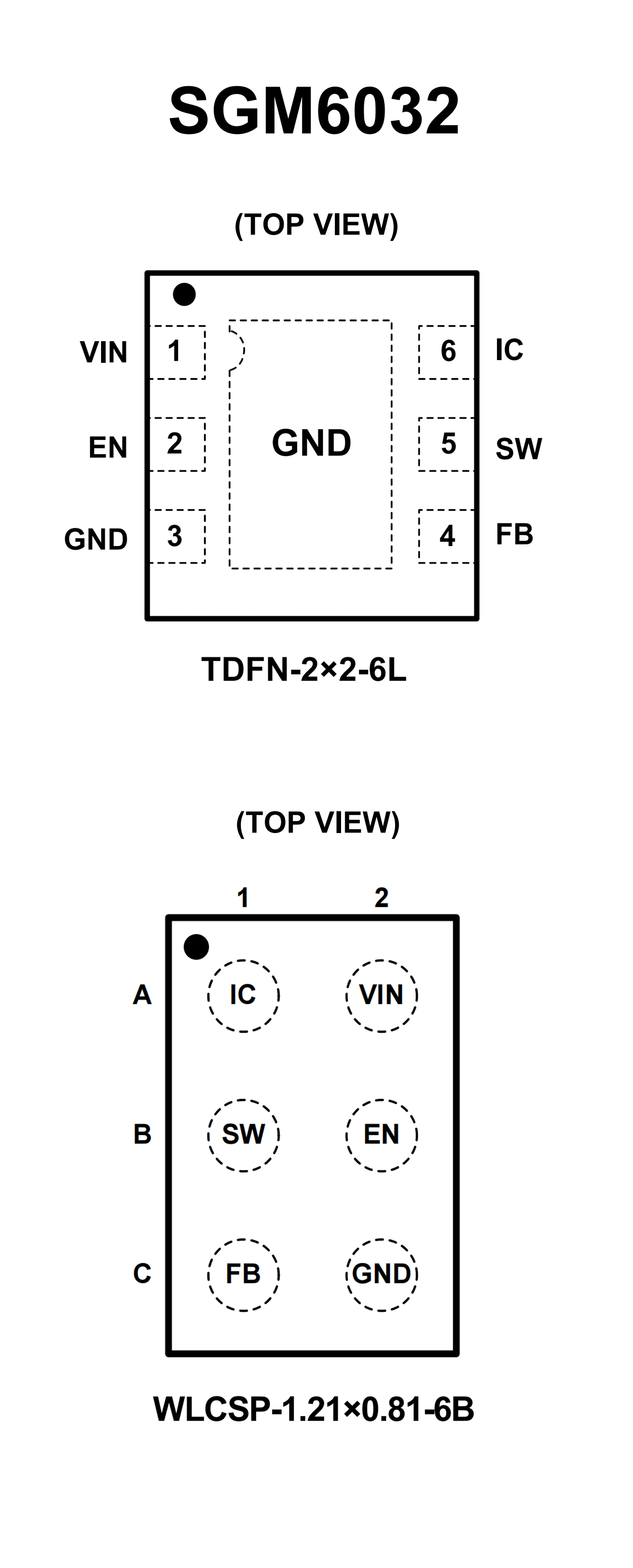

PIN CONFIGUTION
優勢替代
FEATURES
? Wide Input Voltage Range from 2.3 V to 5.5 V
? 6 MHz Regulated Frequency Operation
? 90% Efficiency at 6 MHz Operation
? 31 μA Quiescent Current
? Best in Class Load and Line Transient
? ±2% Total DC Voltage Accuracy
? Automatic PFM/PWM Mode Switching
? Low Ripple Light-Load PFM Mode
? Internal Soft Start, 120-μs Start-Up Time
? Integrated Active Power-Down Sequencing
(TPS62624 only)
? Current Overload and Thermal Shutdown Protection
? Three Surface-Mount External Components Required
(One MLCC Inductor, Two Ceramic Capacitors)
? Complete Sub 1-mm Component Profile Solution
? Total Solution Size < 12 mm2
? Available in a 6-Pin NanoFree? (WCSP)
Regular and Ultra-Thin Packaging

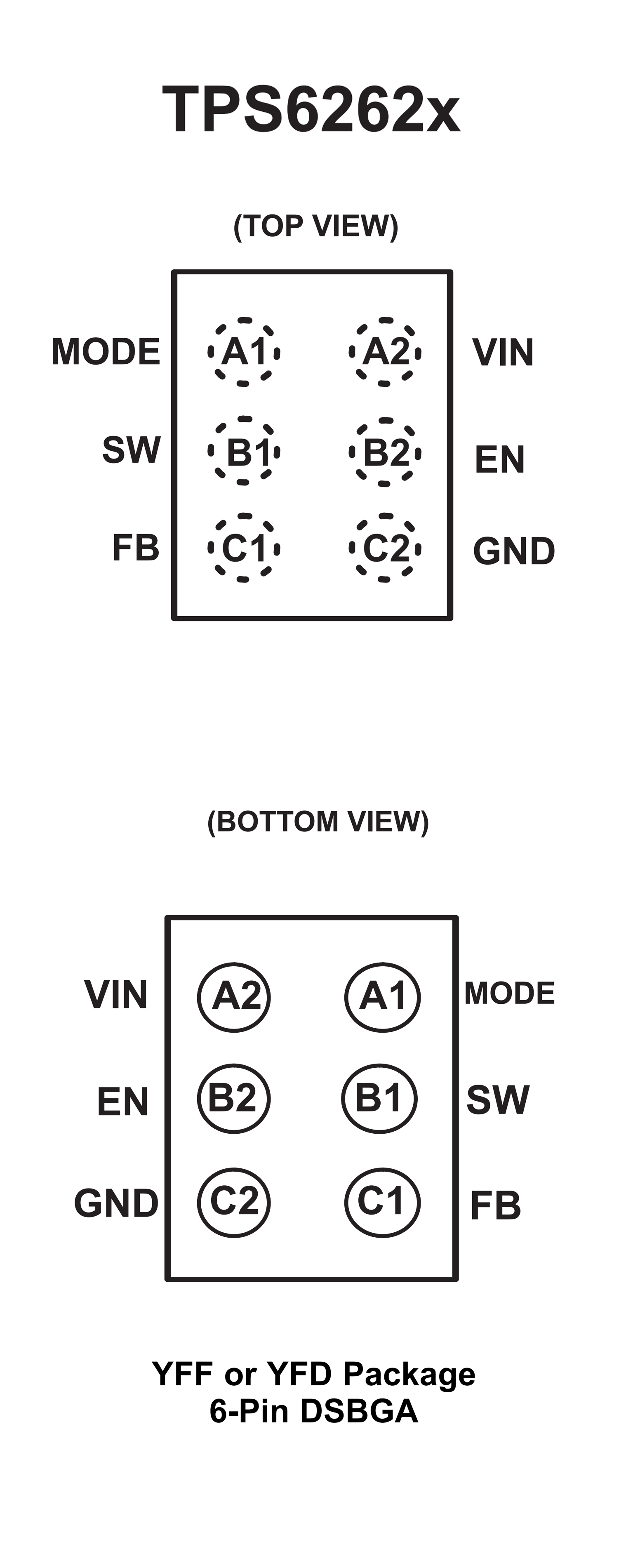

PIN CONFIGUTION
