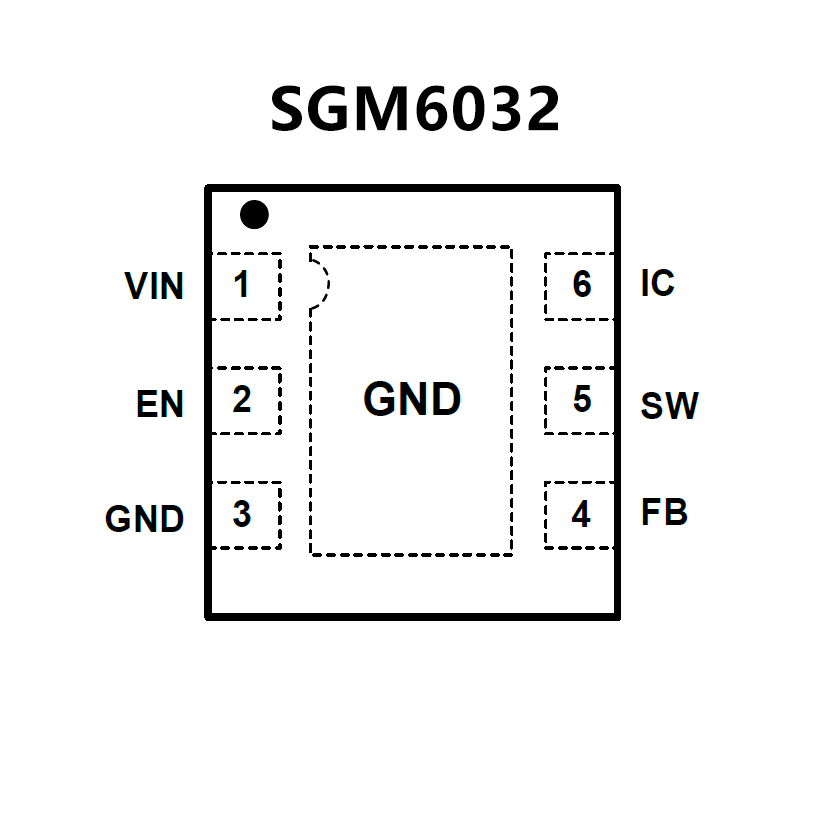

SGM6032-1.8YG.pdf? 600mA Output Current Capability
? 22μA Typical Quiescent Current
? 6MHz Fixed Frequency Operation
? Best-in-Class Load Transient Response
? Best-in-Class Efficiency
? 2.5V to 5.5V Input Voltage Range
? Output Voltages: 0.6V, 0.8V, 1.0V, 1.1V, 1.15V, 1.2V,
1.5V, 1.6V, 1.8V, 2.5V, 2.8V, 3.0V and 3.3V
? Low Ripple Light-Load PFM Mode
? Internal Soft-Start
? Input Under-Voltage Lockout (UVLO)
? Thermal Shutdown and Overload Protection
? Output Discharge
? Available in Green TDFN-2×2-6L and
WLCSP-1.21×0.81-6B Packages
? -40℃ to +85℃ Operating Temperature Range

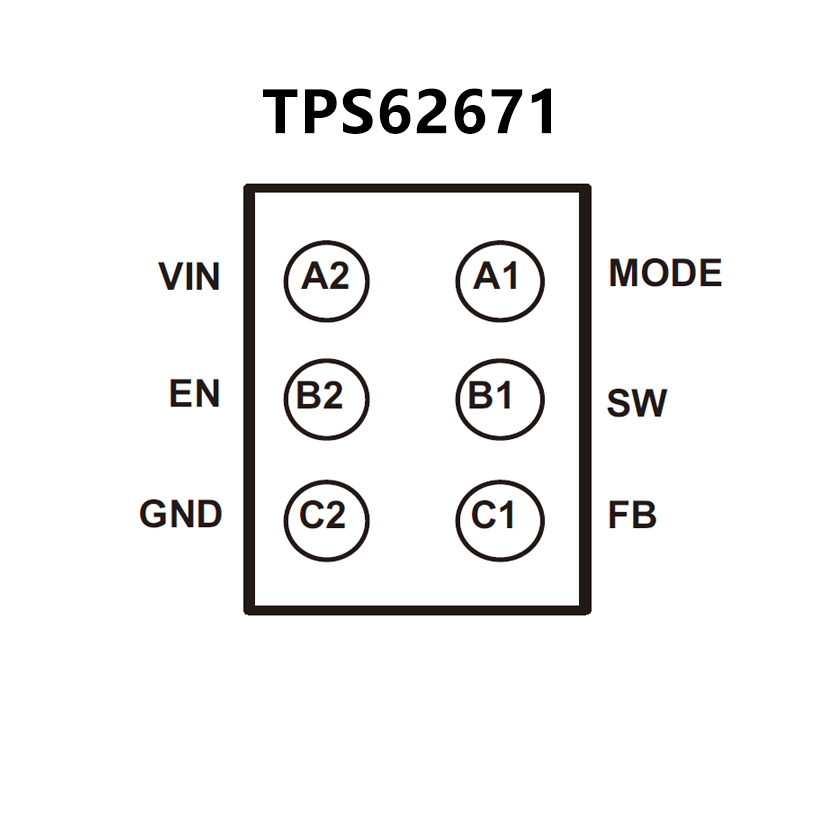

? 92% Efficiency at 6MHz Operation
? 17μA Quiescent Current
? Wide VIN Range From 2.3V to 4.8V
? 6MHz Regulated Frequency Operation
? Spread Spectrum, PWM Frequency Dithering
? Best in Class Load and Line Transient
? ±2% Total DC Voltage Accuracy
? Low Ripple Light-Load PFM Mode
? ≥35dB VIN PSRR (1kHz to 10kHz)
? Simple Logic Enable Inputs
? Supports External Clock Presence Detect Enable
Input
? Three Surface-Mount External Components
Required (One 0603 MLCC Inductor, Two 0402
Ceramic Capacitors)
? Complete Sub 0.33-mm Component Profile
Solution
? Total Solution Size <10 mm2
? Available in a 6-Pin NanoFree? (CSP)
Ultra-Thin Packaging, 0.4 mm Max. Height
