SGM61007.pdf? 2.3V to 5.5V Input Voltage Range
? Output Current Capability: 600mA
? 22μA Typical Quiescent Current
? 5.8MHz Fixed-Frequency Operation
? Best-in-Class Load Transient Response
? Best-in-Class Efficiency
? Low Ripple Light-Load PFM and PSM Mode
? Forced PWM and PFM Mode Selectable
? Internal Soft-Start
? Input Under-Voltage Lockout (UVLO)
? Thermal Shutdown and Overload Protection

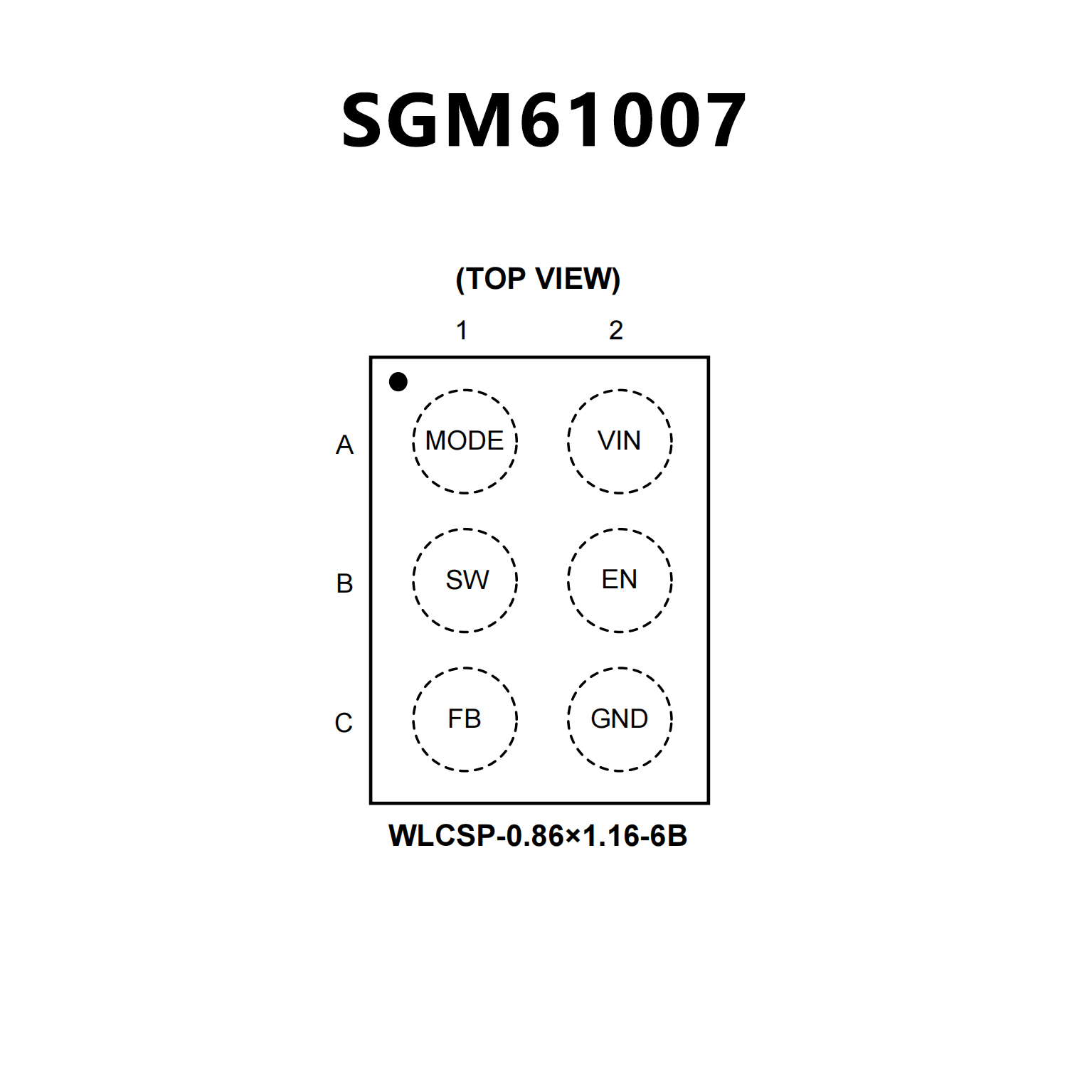

? Available in a Green WLCSP-0.86×1.16-6B Package
? 600 mA or 1 A Output Current Capability
? 24 μA Typical Quiescent Current
? 6 MHz Fixed-Frequency Operation
? Best-in-Class Load Transient Response
? Best-in-Class Efficiency
? 2.3 V to 5.5 V Input Voltage Range
? Low Ripple Light-Load PFM Mode
? Forced PWM and External Clock Synchronization
? Internal Soft-Start
? Input Under-Voltage Lockout (UVLO)
? Thermal Shutdown and Overload Protection
? Optional Output Discharge

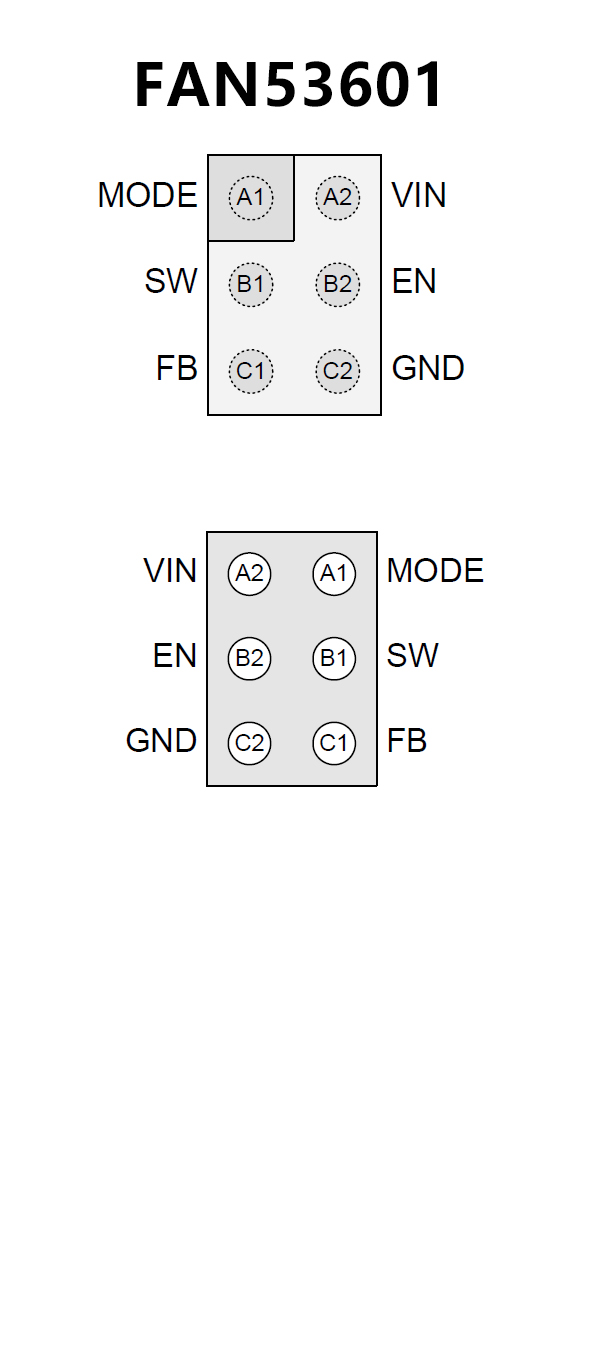

? 6-Bump WLCSP, 0.4 mm Pitch
