? 2.5V to 5.5V Input Voltage Range
? Adjustable Output Voltage from 0.6V to VIN
? Up to 95% Efficiency
? Low RDSON Switches (102mΩ/57mΩ)
? Power-Save Mode for Light Load Efficiency
? 42μA (TYP) Operating Quiescent Current
? 100% Duty Cycle for Low Dropout Operation
? 1.5MHz PWM Switching Frequency
? Power Good Output (SGM61020P Only)
? Over-Current Protection
? Thermal Shutdown Protection
? Input Under-Voltage Lockout (UVLO) Protection
? -40℃ to +125℃ Operating Temperature Range

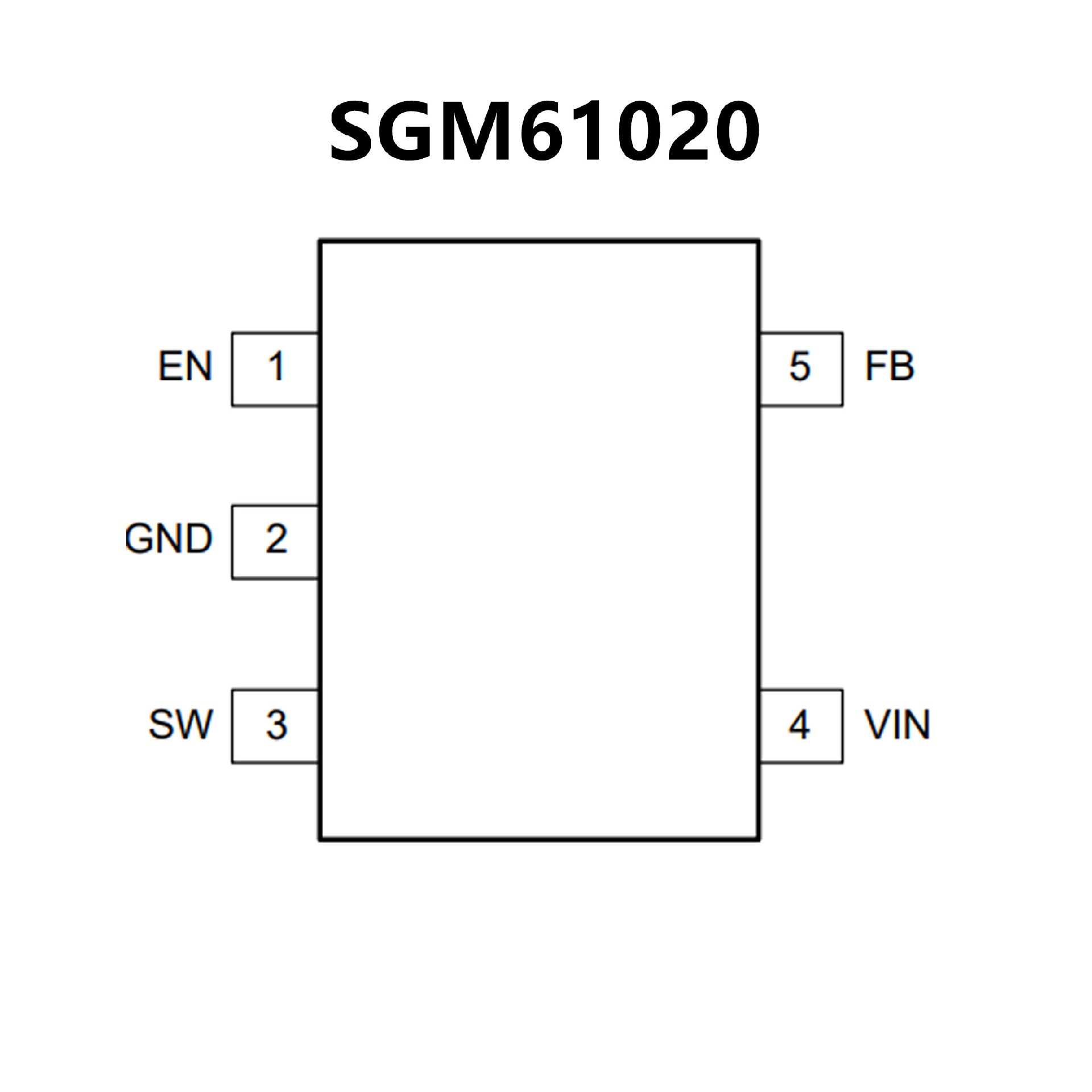

? Small Packaging:SGM61020: Available in Green
SOT-23-5 andSOT-563-6 PackagesSGM61020P:
Available in a Green SOT-563-6Package

? Built-in Low RDS(ON) Power-MOSFETS
? Efficiency Up to 95%
? 2.5V to 5.5V Input Voltage Range
? Adjustable Output Voltage Range from 0.6V to VIN
? Fixed 1.5MHz Switching Frequency
? 1A Continuous Load Current
?100% Duty Cycle Low Dropout Operation
? 45μA Low Quiescent Current
? <1μA Shutdown Current
? Internal Compensation
? Cycle-by-Cycle Current Limit
? Short Circuit Protection
? OTP Protection
? Available in SOT-23-5 and TSOT23-5 Packages
