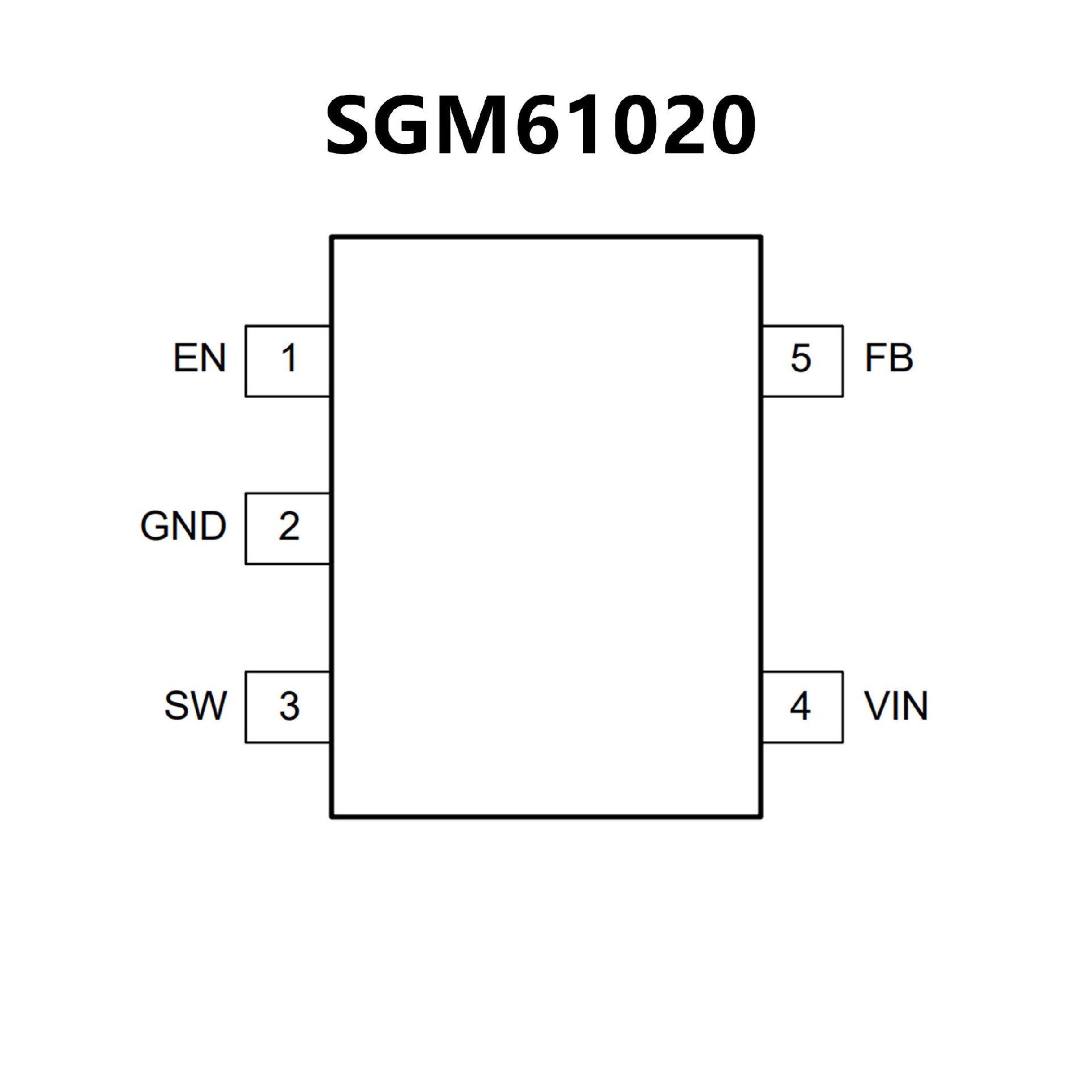

SGM61020.pdf? 2.5V to 5.5V Input Voltage Range
? Adjustable Output Voltage from 0.6V to VIN
? Up to 95% Efficiency
? Low RDSON Switches (102mΩ/57mΩ)
? Power-Save Mode for Light Load Efficiency
? 42μA (TYP) Operating Quiescent Current
? 100% Duty Cycle for Low Dropout Operation
? 1.5MHz PWM Switching Frequency
? Power Good Output (SGM61020P Only)
? Over-Current Protection
? Thermal Shutdown Protection
? Input Under-Voltage Lockout (UVLO) Protection
? -40℃ to +125℃ Operating Temperature Range
? Small Packaging:
SGM61020: Available in Green
SOT-23-5 andSOT-563-6 Packages
SGM61020P: Available in a Green SOT-563-6Package

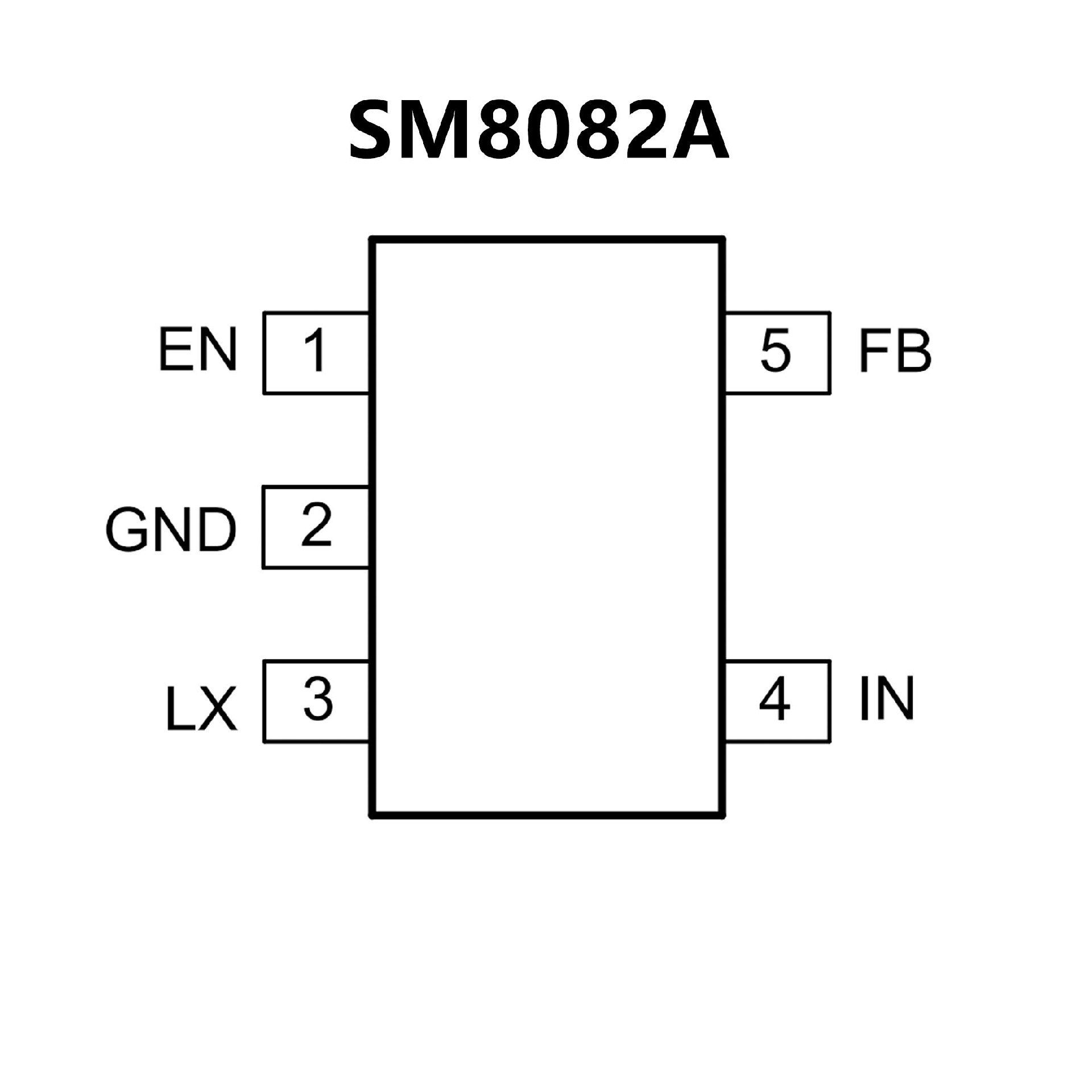

? 2.5V to 5.5V Input Voltage Range
? 70μA Low Quiescent Current
? Low RDS(ON) for Internal Switches
(Top/Bottom)130mΩ /90mΩ
? High Switching Frequency 1.5MHz
Minimizesthe External Components
? Internal Soft-start Limits the Inrush Current
? 100% Dropout Operation
? Hic-cup for Short Circuit Protection
? Output Auto Discharge Function
? RoHS Compliant and Halogen Free
? Compact Package: SOT23-5
