SGM61020.pdf? 2.5V to 5.5V Input Voltage Range
? Adjustable Output Voltage from 0.6V to VIN
? Up to 95% Efficiency
? Low RDSON Switches (102mΩ/57mΩ)
? Power-Save Mode for Light Load Efficiency
? 42μA (TYP) Operating Quiescent Current
? 100% Duty Cycle for Low Dropout Operation
? 1.5MHz PWM Switching Frequency
? Power Good Output (SGM61020P Only)
? Over-Current Protection
? Thermal Shutdown Protection
? Input Under-Voltage Lockout (UVLO) Protection
? -40℃ to +125℃ Operating Temperature Range
? Small Packaging:
SGM61020: Available in Green SOT-23-5 and
SOT-563-6 Packages
SGM61020P: Available in a Green SOT-563-6
Package
? Forced PWM to reduce output voltage ripple
? Up to 95% efficiency
? Low RDS(ON) switches: 100 mΩ / 60 mΩ
? 2.5-V to 5.5-V input voltage range
? Adjustable output voltage from 0.6 V to VIN
? 100% duty cycle for lowest dropout
? 1.5-MHz typical switching frequency
? Power good output
? Over current protection
? Internal soft startup
? Thermal shutdown protection
? Available in SOT563 package

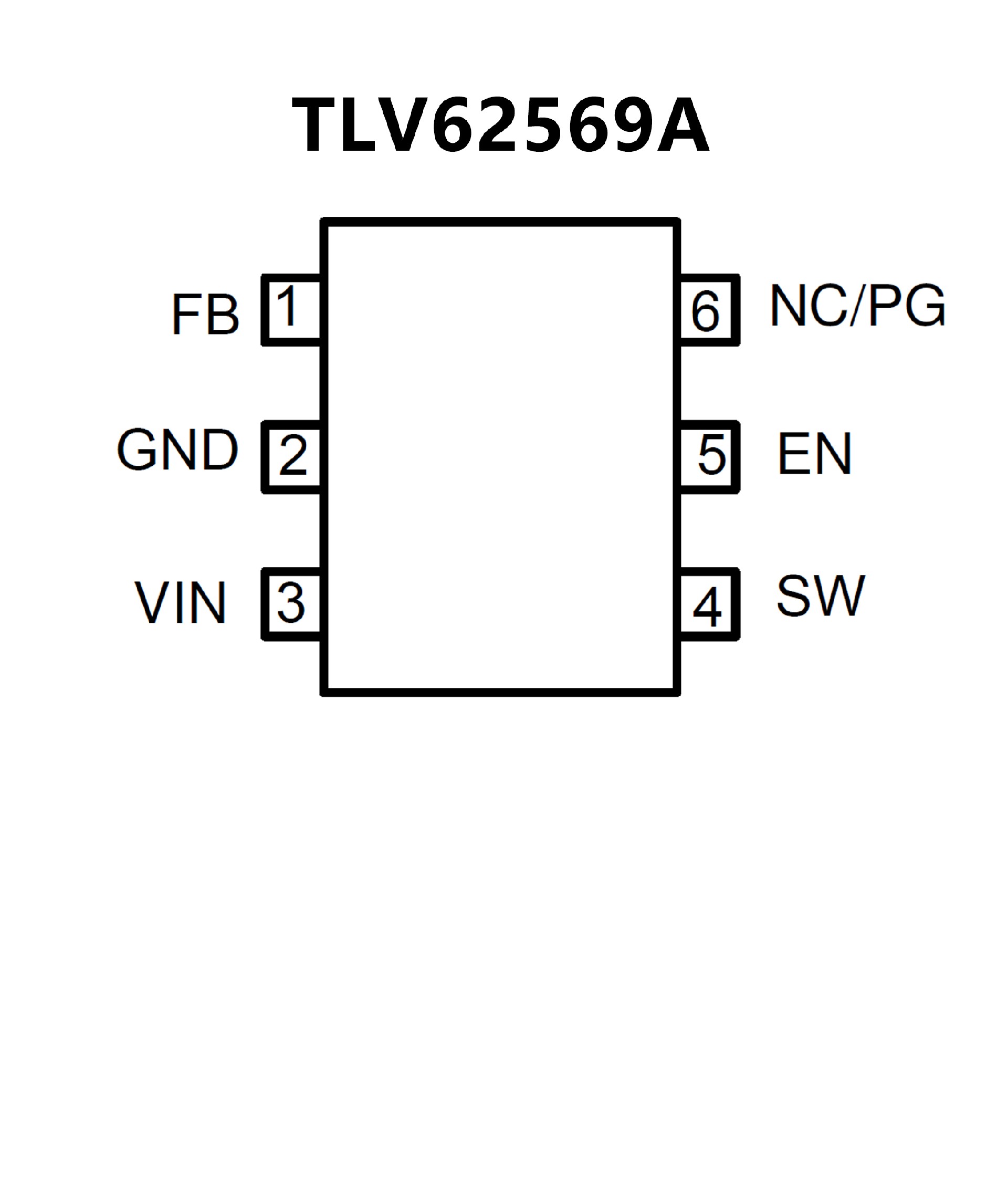

? Pin-to-pin compatible with TLV62568, TLV62569
? Create a custom design with the WEBENCH?
Power Designer
