2.7-6V, 6A Automotive Step-Down Converter in 3mm×2mm QFN Package with Wettable Flanks, P2P TPS62816-Q1.
SGM61063Q.pdf優(yōu)勢(shì)替代
FEATURES
? AEC-Q100 qualified for automotive applications
– Device temperature grade 1:
–40°C to +125°C TA
? Functional Safety-Capable
– Documentation available to aid functional safety
system design
? Input voltage range: 2.7 V to 6 V
? Quiescent current: 26 μA typical
? Output voltage from 0.6 V to 5.5 V
? Output voltage accuracy ±1% (PWM operation)
? Adjustable soft start
? Forced PWM or PWM/PFM operation
? Adjustable switching frequency of
1.8 MHz to 4 MHz
? Precise ENABLE input allows
– User-defined undervoltage lockout
– Exact sequencing
? 100% duty cycle mode
? Active output discharge
? Spread spectrum clocking — optional
? Power-good output with window comparator
? Package with wettable flanks
? TJ = –40°C to 150°C

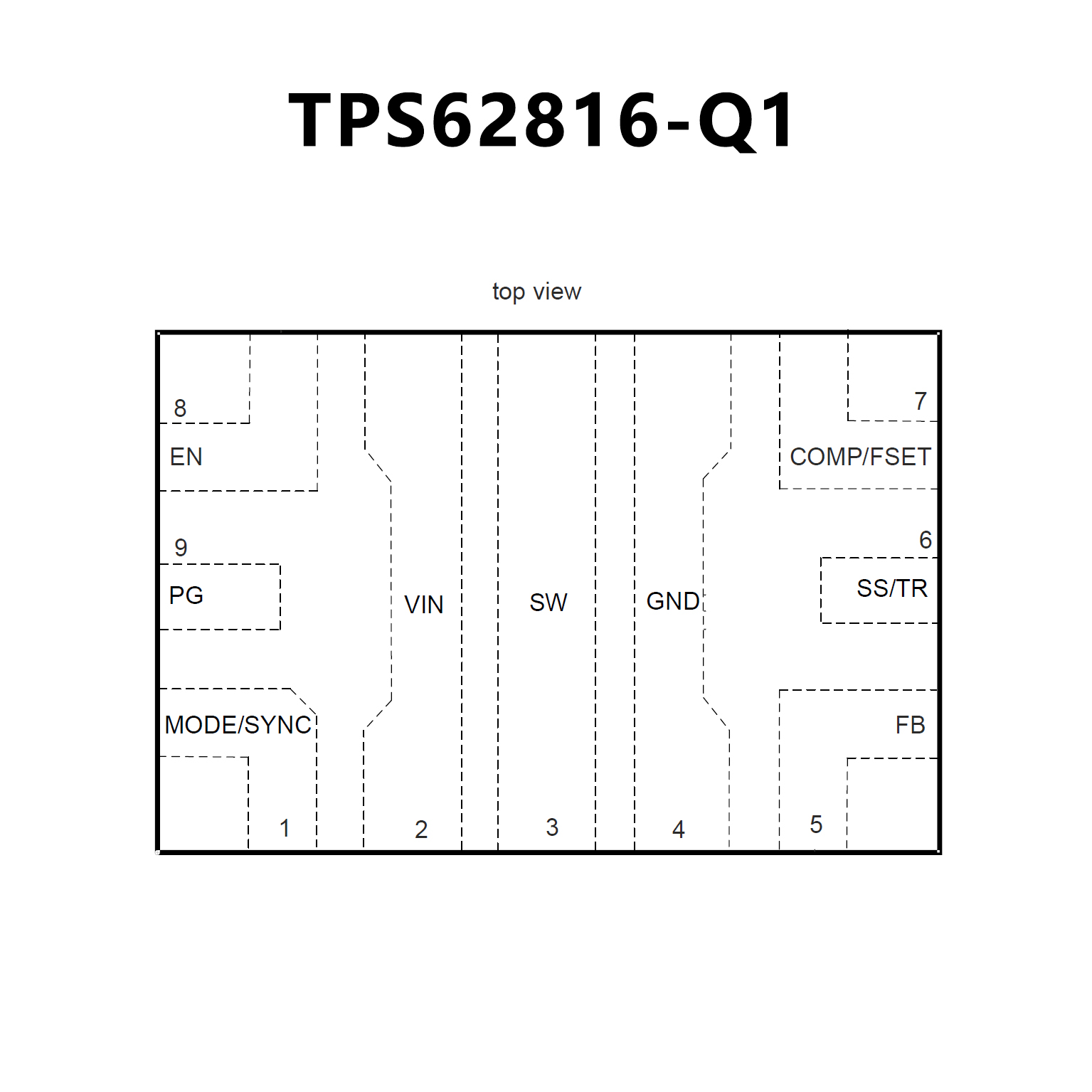

PIN CONFIGUTION
