SGM61103.pdf? AHP-COT Control Topology
? Input Voltage Range: 3V to 17V
? Output Voltage Range: 1.2V to 10V
? Quiescent Current: 28μA (TYP)
? Shutdown Current: 450nA (TYP)
? Switching Frequency: Up to 1MHz
? EN Pin with Precise Threshold
? EN_HYS Pin for Additional Hysteresis Programming
? 100% Duty Cycle Mode
? Power Good Indicator
? Output Discharge

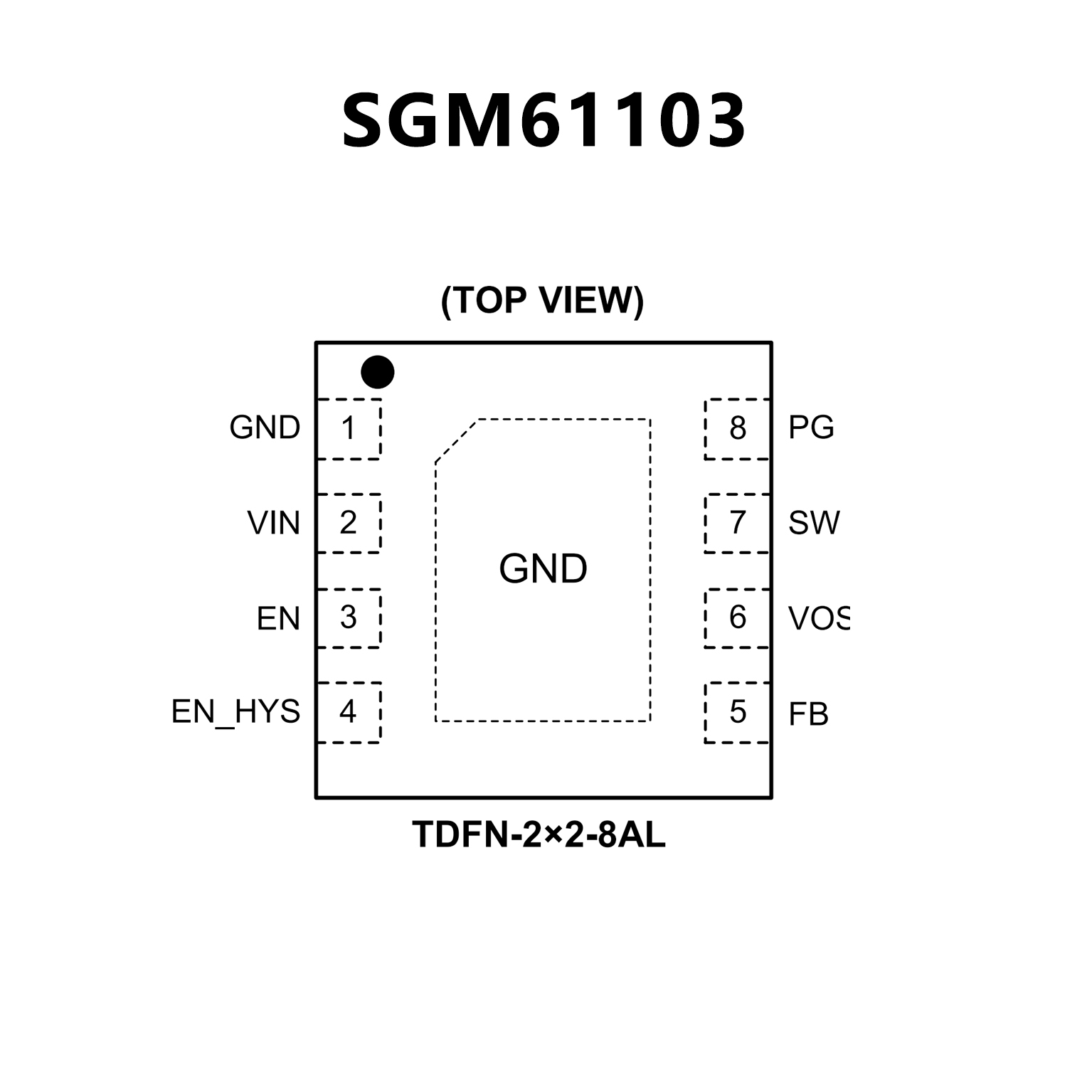

? Available in a Green TDFN-2×2-8AL Package
? Wide Input Voltage Range 3 V to 17 V
? Input Supply Voltage Supervisor (SVS) With
Adjustable Threshold and Hysteresis Consuming
Typical 6-μA Quiescent Current
? Wide Output Voltage Range 1.2 V to 10 V
? Typical 13-μA Quiescent Current
? 350-nA Typical Shutdown Current
? Seamless Power Save Mode Transition
? DCS-Control? Scheme
? Low Output Ripple Voltage
? Up to 1-MHz Switching Frequency
? Highest Efficiency over Wide VIN and VOUT Range
? Pin to Pin Compatible with TPS62160/70
? 100% Duty Cycle Mode
? Power Good Open Drain Output
? Output Discharge Function

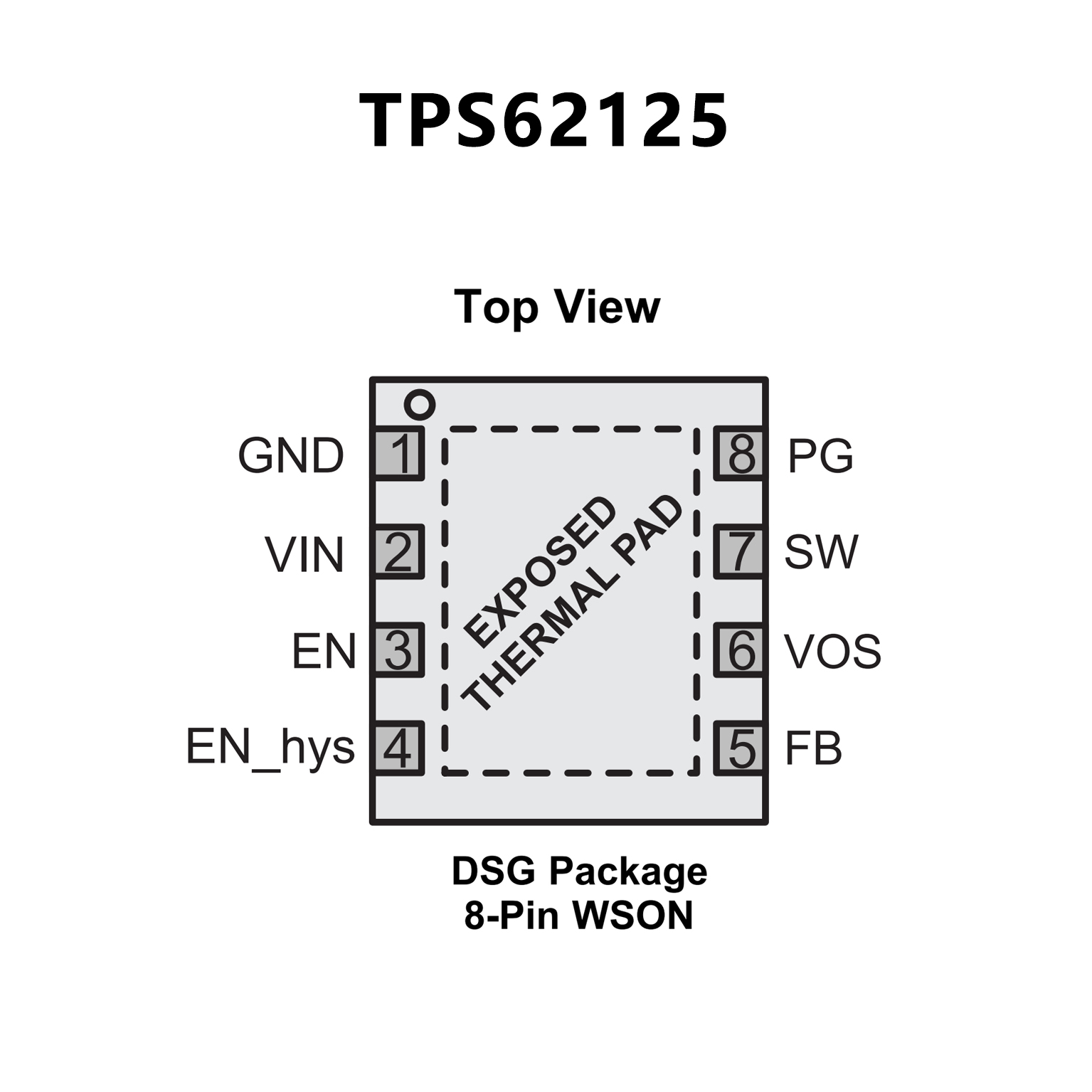

? Small 2-mm × 2-mm 8-pin WSON Package
