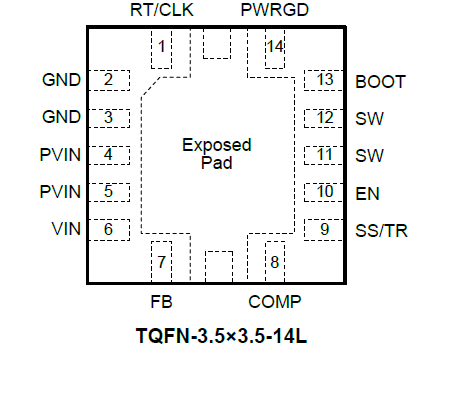

SGM61164.pdf? 1.8V to 18V Range for PVIN
? 4.5V to 18V Range for VIN
? Low RDSON Integrated Switches (27mΩ/18mΩ)
? Split Rails for Supply (VIN) and Power (PVIN)
? Fixed 200kHz to 2MHz Switching Frequency
? External Clock Synchronization
? Voltage Tracking Capability
? 0.8V Internal Voltage Reference
? ±1% VREF Accuracy
? 3.3μA (TYP) Shutdown Quiescent Current
? Monotonic Start-Up with Pre-Biased Outputs
? Adjustable Soft-Start Time
? Power Sequencing Capability
? Under-Voltage/Over-Voltage Power Good Output
? Adjustable Input Under-Voltage Lockout (UVLO)
? -40℃ to +125℃ Operating Temperature Range
? Integrated 26mΩ / 19mΩ MOSFETs
? Split Power Rail: 1.6V to 17V on PVIN
? 200kHz to 1.6MHz Switching Frequency
? Synchronizes to External Clock
? 0.8V ±1% Voltage Reference Over Temperature
? Low 2uA Shutdown Quiscent Current
? Monotonic Start-Up into Prebiased Outputs
? –40°C to 150°C Operating Junction Temperature Range
? Adjustable Slow Start/Power Sequencing
? Power Good Output Monitor for Undervoltage & Overvoltage
? Adjustable Input Undervoltage Lockout
? Supported by SwitcherPro? Software Tool
