SGM61230.pdf? Wide 4.5V to 28V Input Voltage Range
? 3A Continuous Output Current
? Integrated 70mΩ/39mΩ Power MOSFETs
? 3μA Shutdown Current
? 30μA Quiescent Current
? 5ms Internal Soft-Start
? Fixed 400kHz Switching Frequency
? PWM and Pulse Skip Modes
? Peak Current Mode Control
? Internal Loop Compensation
? Over-Current Protection for Both MOSFETs
? Output Over-Voltage Protection
? Adjustable Under-Voltage Lockout
? Thermal Shutdown with Auto Recovery

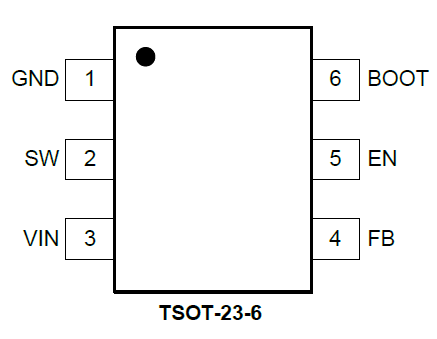

? Available in a Green TSOT-23-6 Package
? 4.5-V to 28-V Wide Input Voltage Range
? Integrated 85-mΩ and 40-mΩ MOSFETs for 3-A,
Continuous Output Current
? Low 2-μA Shutdown, 45-μA Quiescent Current
? Internal 5-mS Soft-Start
? Fixed 400-kHz Switching Frequency
? Frequency Spread Spectrum to Reduce EMI
? Advanced Eco-mode? Pulse Skip
? Peak Current Mode Control
? Internal Loop Compensation
? Overcurrent Protection for Both MOSFETs with
Hiccup Mode Protection
? Over Voltage Protection
? Thermal Shutdown

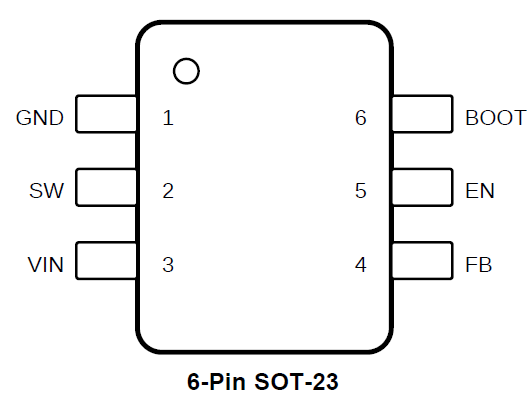

? SOT-23 (6) Package
