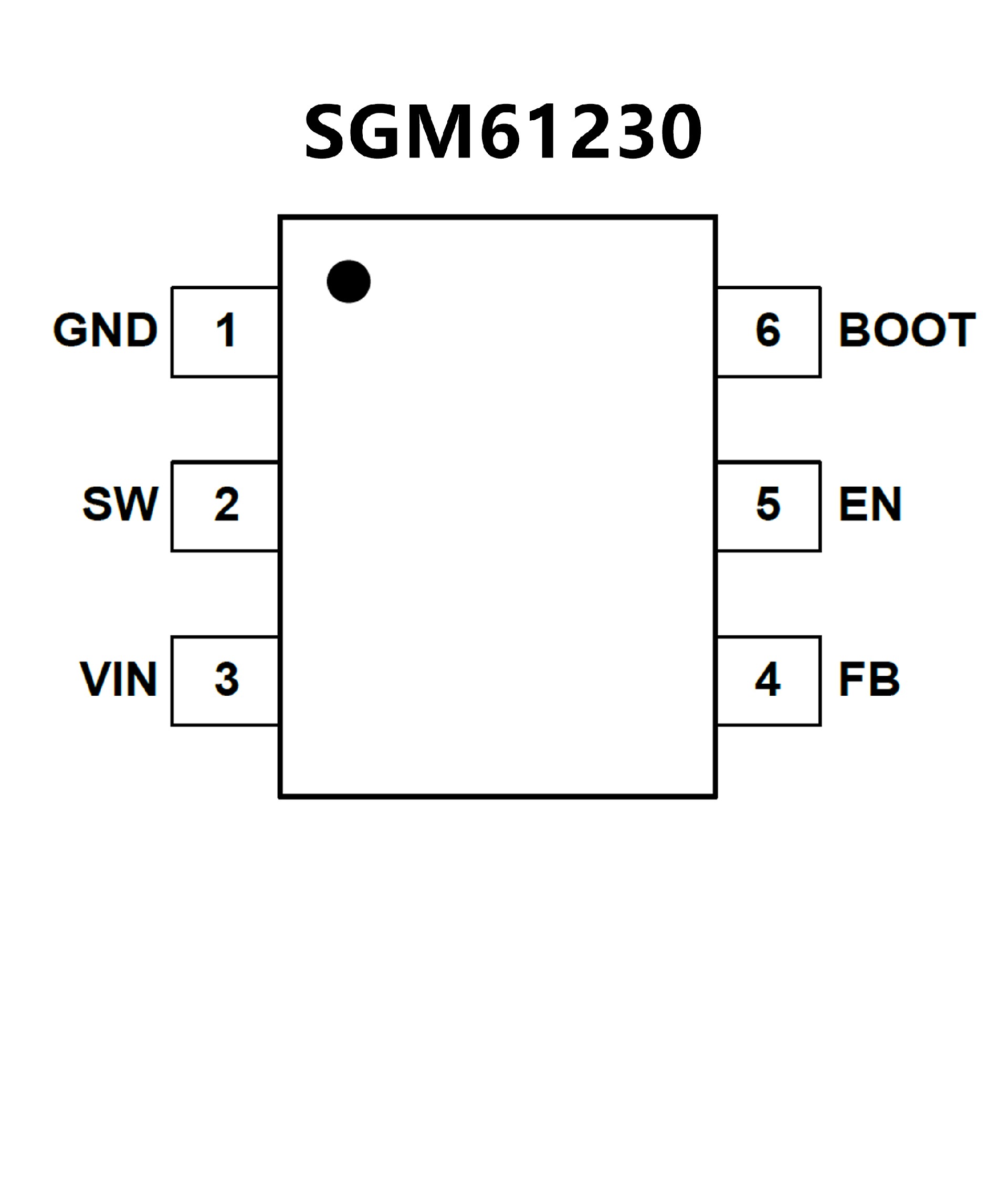

SGM61230.pdf? Wide 4.5V to 28V Input Voltage Range
? 3A Continuous Output Current
? Integrated 66mΩ/36mΩ Power MOSFETs
? Low Quiescent Current: 25μA (TYP)
? Shutdown Current: 2μA (TYP)
? 5ms Internal Soft-Start Time
? Fixed 410kHz Switching Frequency
? Pulse Skip Mode and PWM Mode
? Peak Current Mode Control
? Internal Loop Compensation
? Over-Current Protection for Both MOSFETs
? Output Over-Voltage Protection
? Adjustable Input Under-Voltage Lockout
? Thermal Shutdown with Auto Recovery
? Available in a Green TSOT-23-6 Package
? Input voltage range: 4.5 V to 24 V
? Output voltage range: 0.8 V to 16 V
? 3-A maximum continuous output current
? Fixed 500-kHz switching frequency
? Support up to 97% duty cycle
? Integrated 70-mΩ and 35-mΩ MOSFETs
? Typical 3-μA shutdown current
? Typical 98-μA quiescent current
? Internal 5-ms soft-start
? Internal loop compensation for ease use
? Cycle-by-cycle current limit for both high-side and
low-side MOSFETs
? Non-latched UVP, UVLO and TSD protections
? SOT-23 (6) package

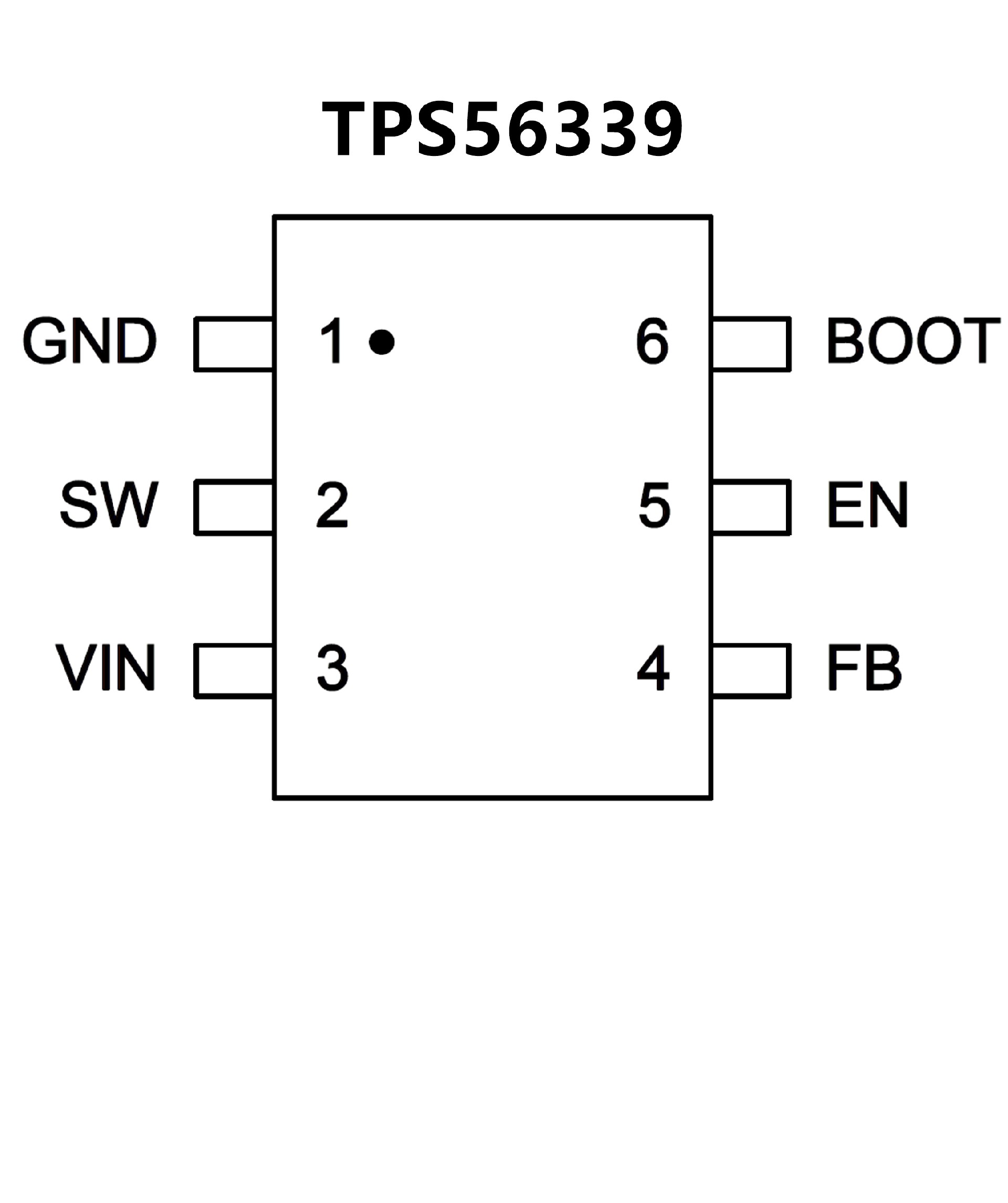

? Create a custom design using TPS56339 with the
WEBENCH? Power Designer
