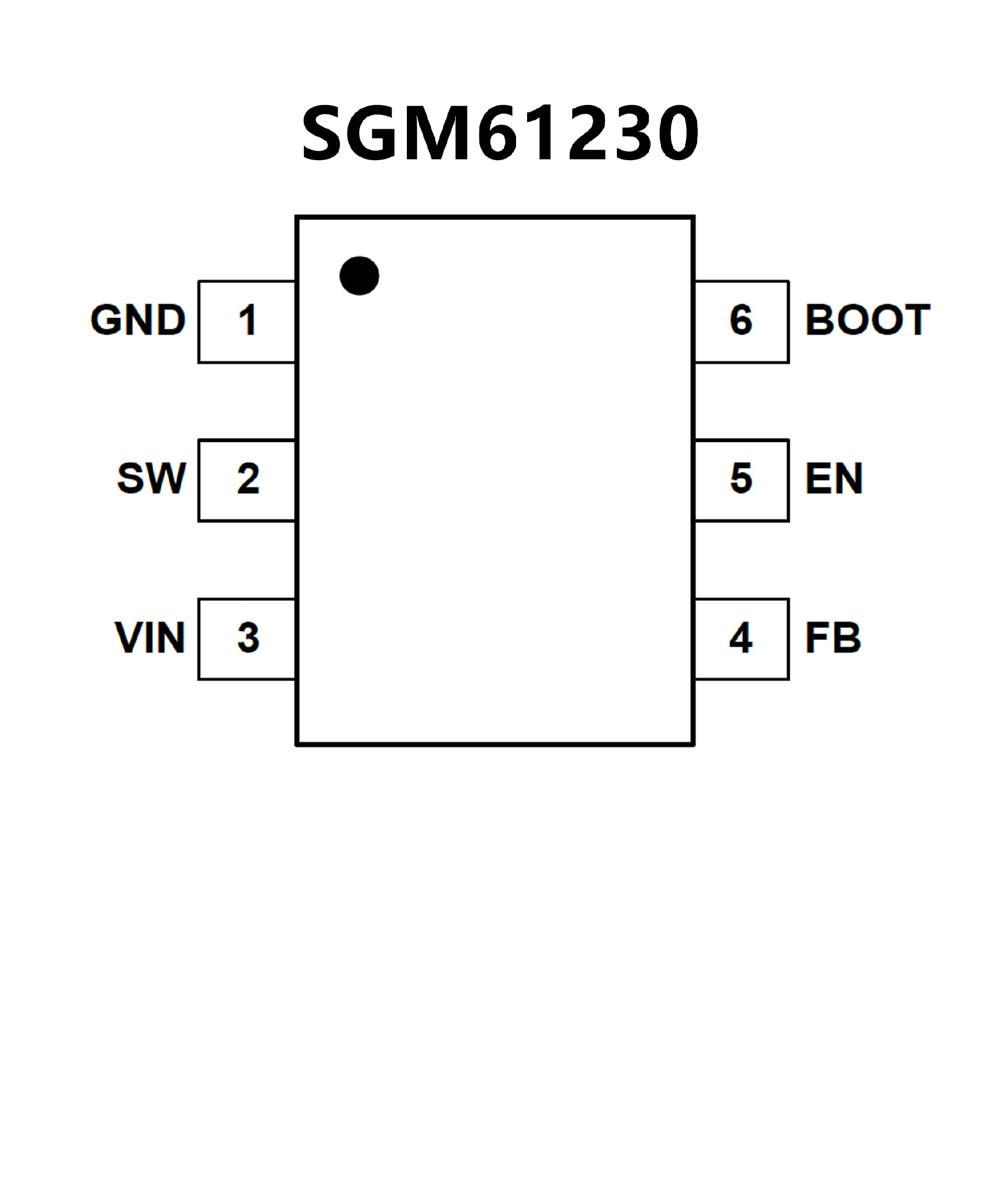

SGM61230.pdf? Wide 4.5V to 28V Input Voltage Range
? 3A Continuous Output Current
? Integrated 66mΩ/36mΩ Power MOSFETs
? Low Quiescent Current: 25μA (TYP)
? Shutdown Current: 2μA (TYP)
? 5ms Internal Soft-Start Time
? Fixed 410kHz Switching Frequency
? Pulse Skip Mode and PWM Mode
? Peak Current Mode Control
? Internal Loop Compensation
? Over-Current Protection for Both MOSFETs
? Output Over-Voltage Protection
? Adjustable Input Under-Voltage Lockout
? Thermal Shutdown with Auto Recovery
? Available in a Green TSOT-23-6 Package

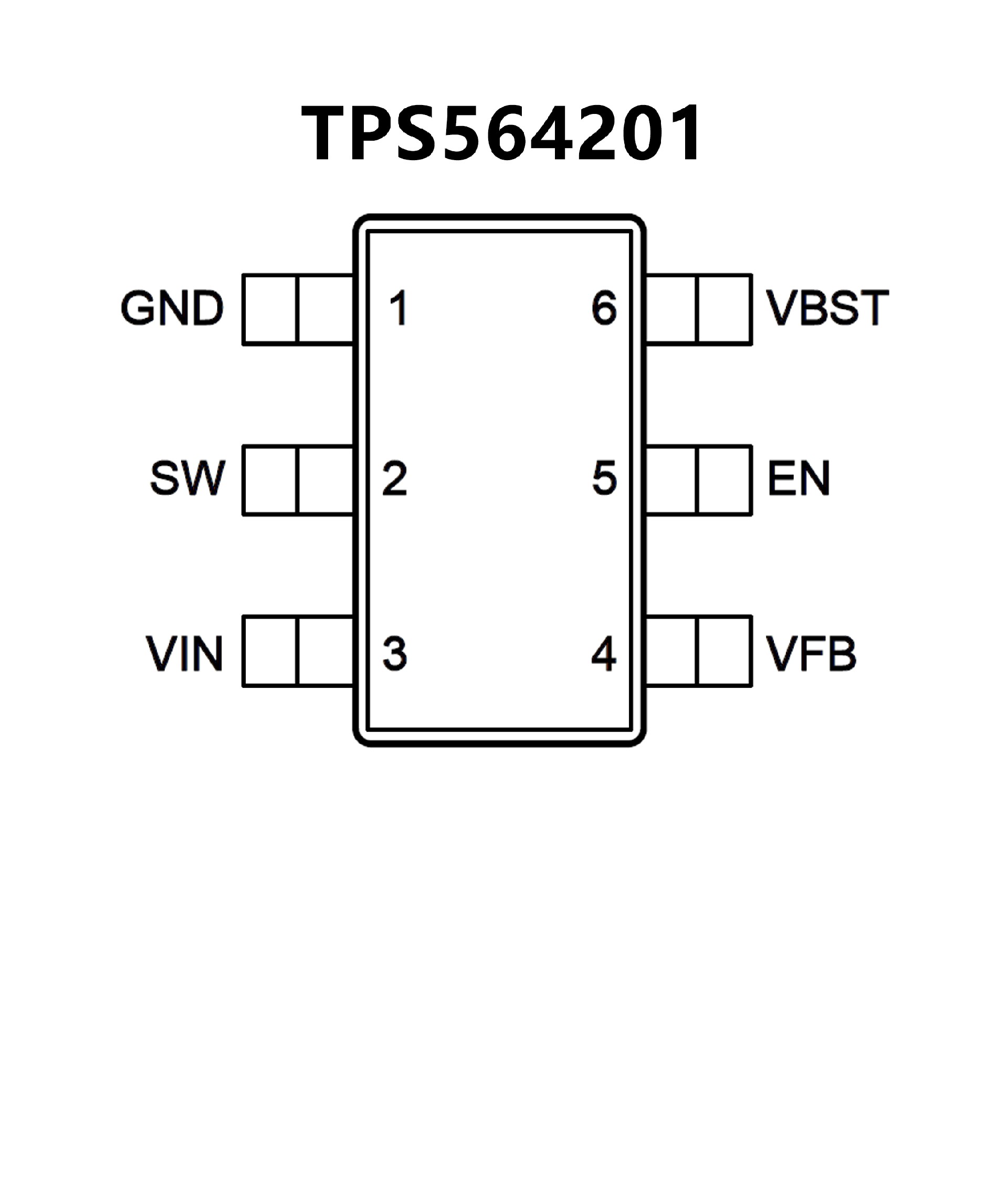

? TPS564201 4-A Converter Integrated 50-mΩ and
22-mΩ FETs
? D-CAP2? Mode Control with Fast Transient
Response
? Input Voltage Range: 4.5 V to 17 V
? Output Voltage Range: 0.76 V to 7 V
? Pulse Skip Mode
? 560-kHz Switching Frequency
? Low Shutdown Current Less than 5 μA
? 1.6% Feedback Voltage Accuracy (25oC)
? Startup from Pre-Biased Output Voltage
? Cycle-by-Cycle Overcurrent Limit
? Hiccup-mode Overcurrent Protection
? Non-Latch UVP and TSD Protections
? Fixed Soft Start: 1.0 ms
? Create a Custom Design Using the TPS564201
With the WEBENCH? Power Designer
