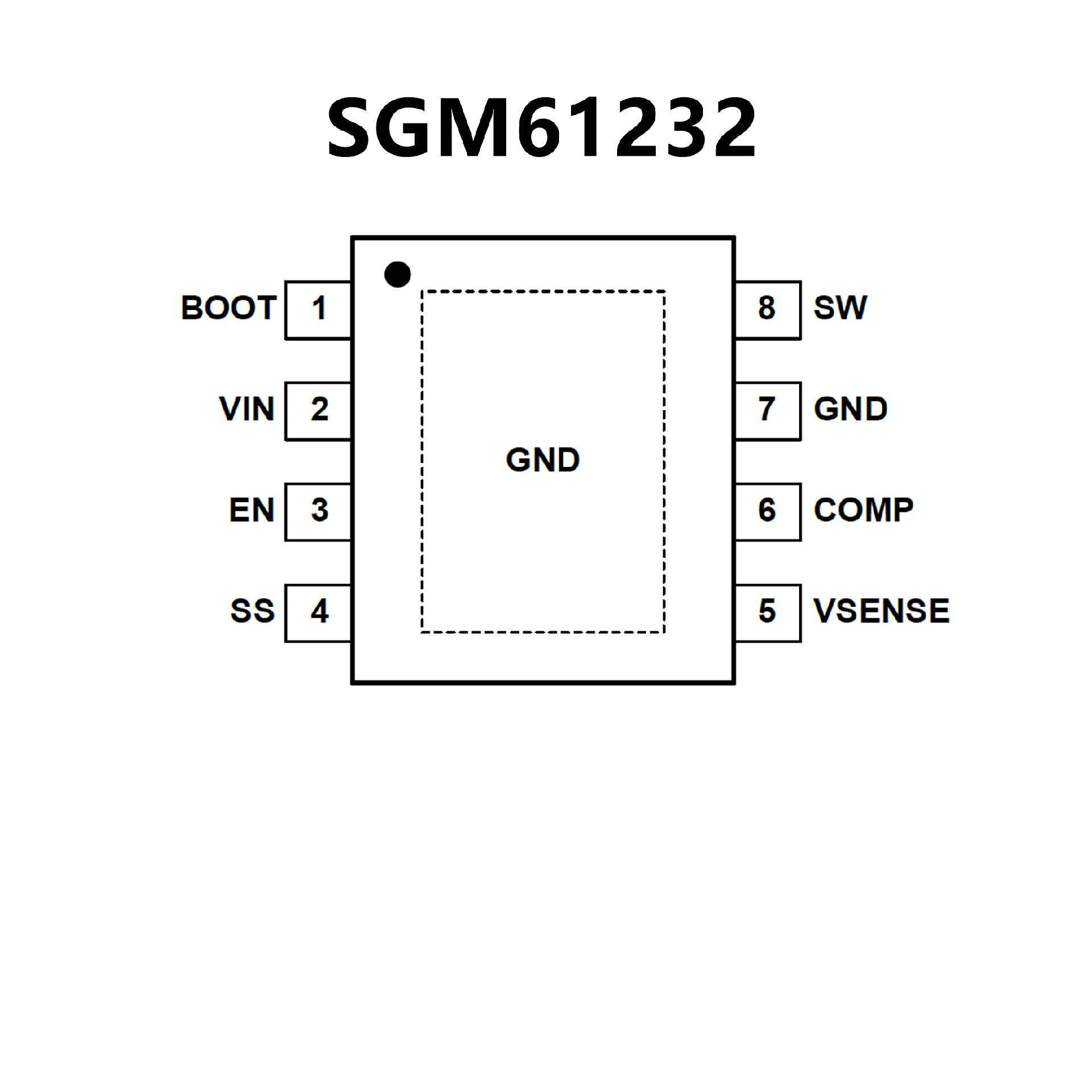

SGM61232.pdf? 4V to 28V Input Voltage Range
? 0.8V Internal Voltage Reference
? 0.8V to 25V Adjustable Output Voltage Range
? Integrated 77mΩ High-side MOSFET
Supports up to 3A Continuous Output Current
? Fixed 540kHz Switching Frequency
? Typical 1.2μA Shutdown Quiescent Current
? High Light Load Efficiency
? Adjustable Soft-Start to Limit Inrush Current
? Programmable UVLO Threshold
? Over-Voltage Transient Protection
? Cycle-by-Cycle Current Limit
? Frequency Fold-Back Protection
? Thermal Shutdown Protection
? Available in a Green SOIC-8 (Exposed Pad) Package

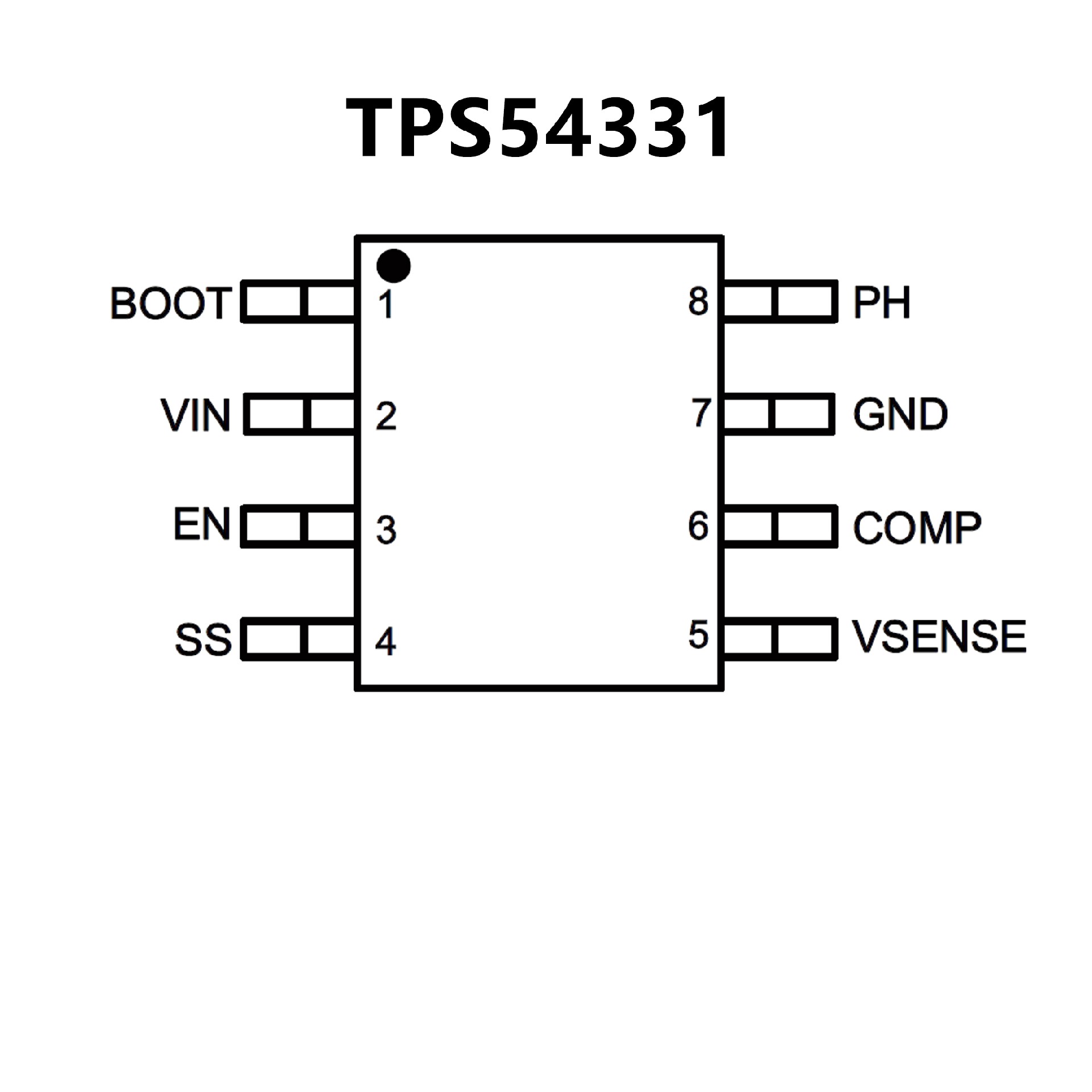

? 3.5 to 28-V Input Voltage Range
? Adjustable Output Voltage Down to 0.8 V
? Integrated 80-m? High-Side MOSFET Supports
up to 3-A Continuous Output Current
? High Efficiency at Light Loads With a Pulse
Skipping Eco-mode
? Fixed 570 kHz Switching Frequency
? Typical 1-μA Shutdown Quiescent Current
? Adjustable Slow-Start Limits Inrush Currents
? Programmable UVLO Threshold
? Overvoltage Transient Protection
? Cycle-by-Cycle Current Limit, Frequency Fold
Back, and Thermal Shutdown Protection
? Available in Easy-to-Use SOIC8 Package or
Thermally Enhanced SOIC8 PowerPADTM
Package
? Create a Custom Design with WEBENCH Tools
