SGM61235.pdf? Wide 4.5V to 28V Input Voltage Range
? 0.594V to 7V Output Voltage Range
? 3A Continuous Output Current
? Integrated 62mΩ/32mΩ Power MOSFETs
? Low Quiescent Current: 45μA (TYP)
? Shutdown Current: 3μA (TYP)
? 5ms Internal Soft-Start Time
? Pseudo-Fixed 700kHz Switching Frequency
? Adaptive Constant On-Time Mode Control
? Pulse-Skip Mode (SGM61235A)
? Continuous Current Mode (SGM61235B)
? Hiccup Current-Protection Mode
? Output Over-Voltage Protection
? Adjustable Input Under-Voltage Lockout
? Thermal Shutdown with Auto Recovery
? Available in a Green TSOT-23-6 Package

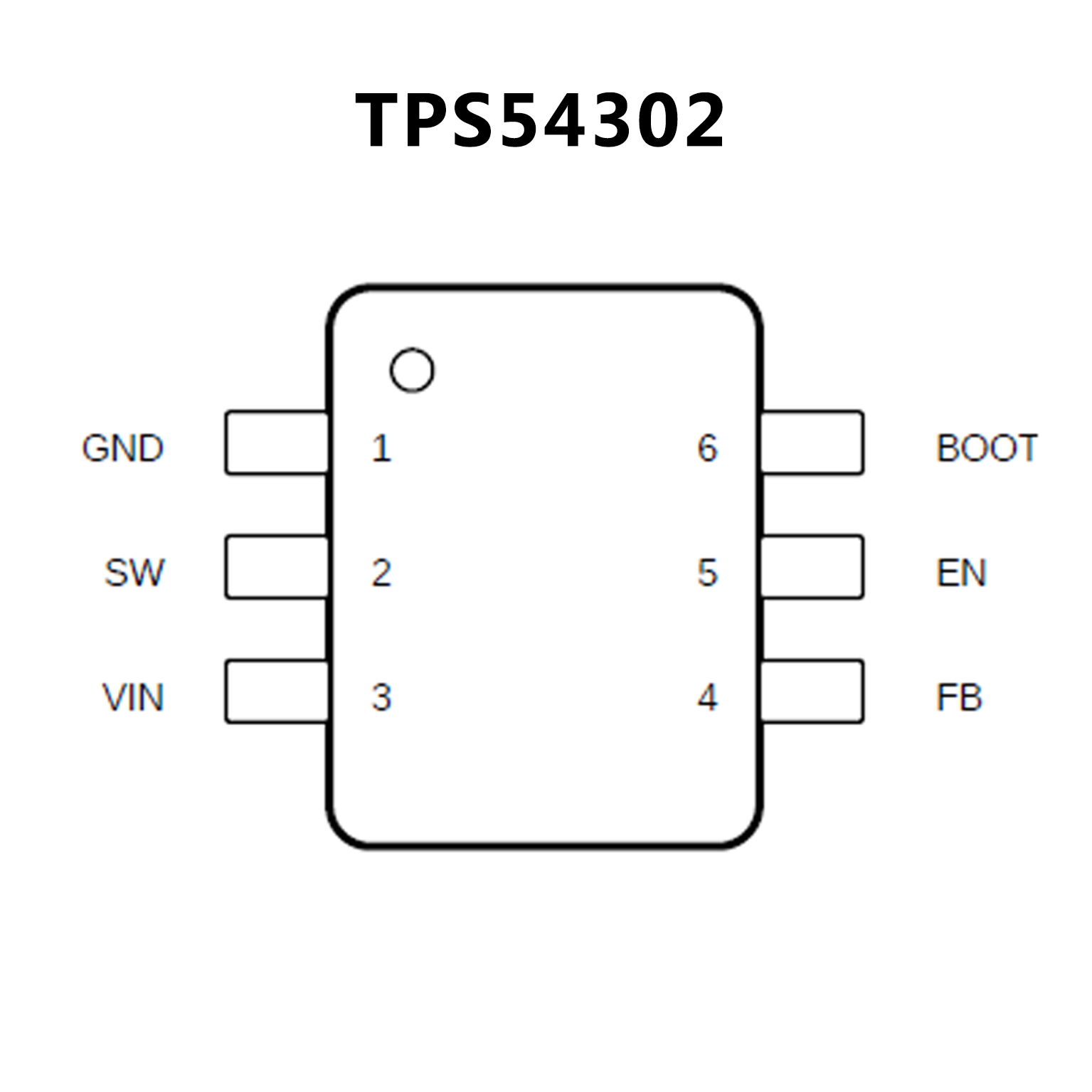

? 4.5-V to 28-V Wide Input Voltage Range
? Integrated 85-mΩ and 40-mΩ
MOSFETs for 3-A, Continuous Output Current
? Low 2-μA Shutdown, 45-μA Quiescent Current
? Internal 5-mS Soft-Start
? Fixed 400-kHz Switching Frequency
? Frequency Spread Spectrum to Reduce EMI
? Advanced Eco-mode? Pulse Skip
? Peak Current Mode Control
? Internal Loop Compensation
? Overcurrent Protection for Both
MOSFETs with Hiccup Mode Protection
? Over Voltage Protection
? Thermal Shutdown
? SOT-23 (6) Package
