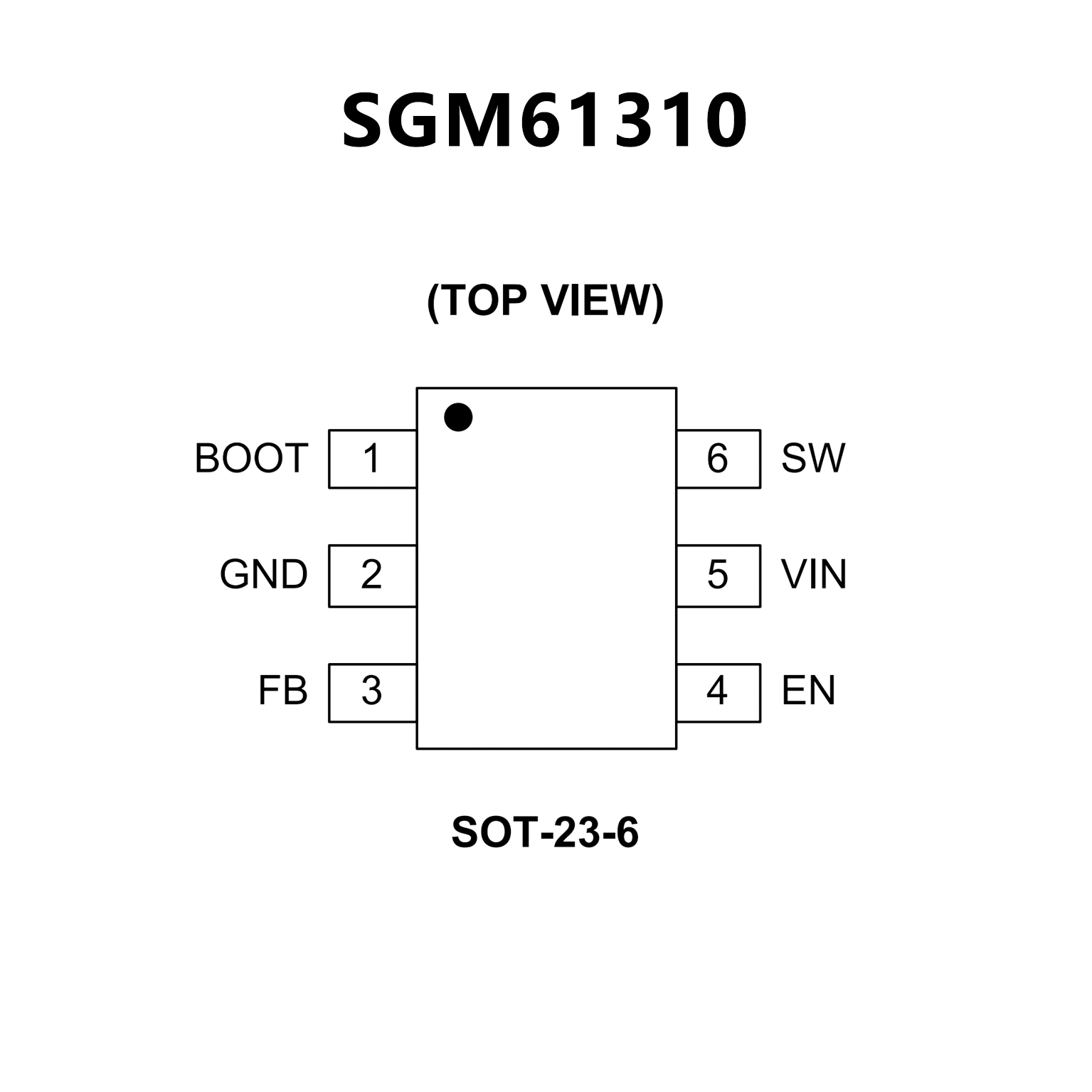

SGM61310.pdf? Documentation Available to Aid Functional
Safety System Design
? Wide 4V to 36V Input Voltage Range
? Up to 1A Continuous Output Current
? Minimum Switching On-Time: 60ns
? 700kHz Fixed Switching Frequency
? 98% Maximum Duty Cycle
? Monotonic Startup with Pre-Biased Output
? Internal Short-Circuit Protection with Hiccup Mode
? Precision Enable
? Integrated Synchronous Rectification
? Internal Compensation for Ease of Use
? Pin-to-Pin Compatible with SGM61410 and SGM61306
? SGM61310A: PSM at Light Load Condition
? SGM61310B: FPWM at Light Load Condition
? -40℃ to +125℃ Operating Temperature Range
? Available in a Green SOT-23-6 Package

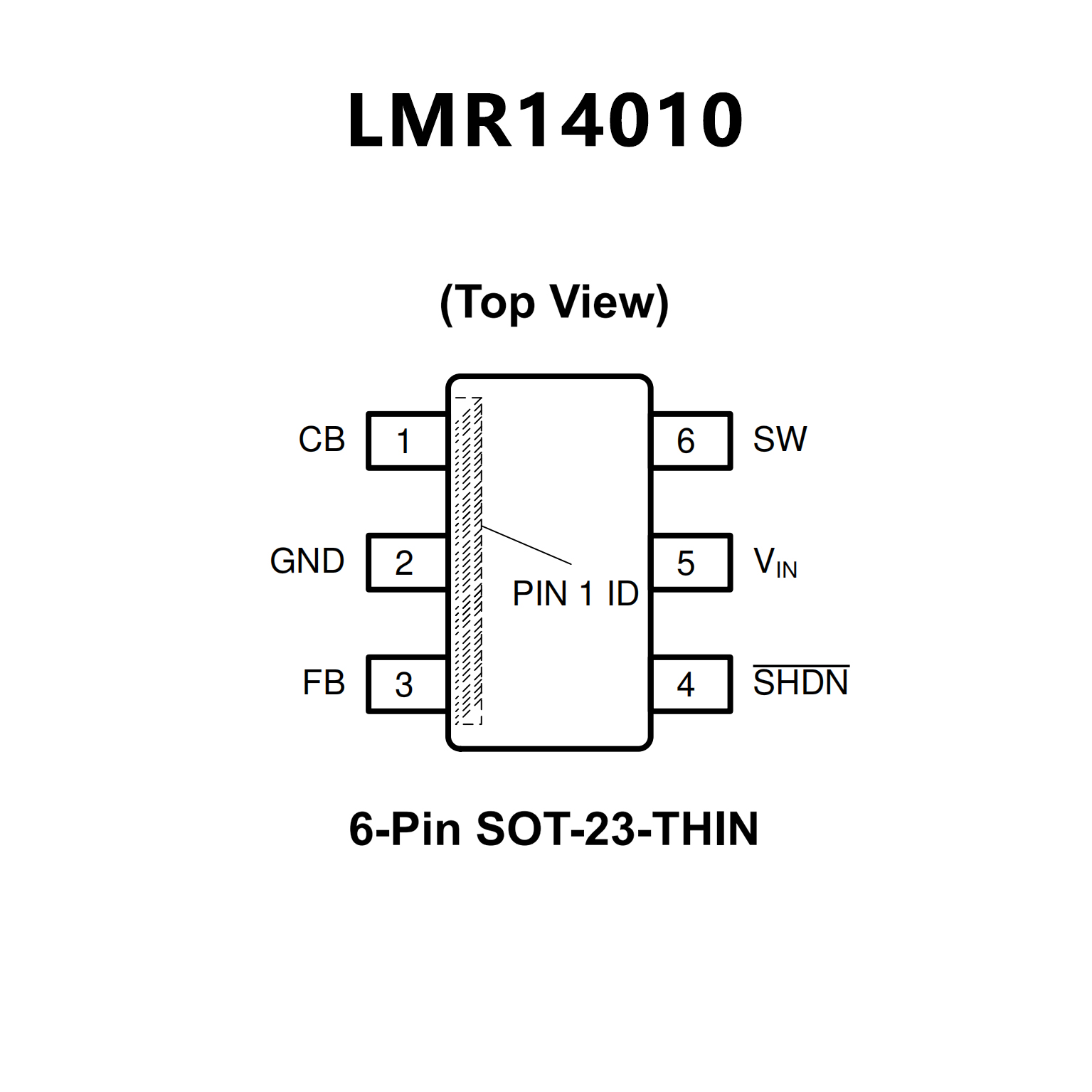

? Input voltage range: 4V to 40V with Transient
protection to 45V
? 0.7MHz switching frequency
? Ultra-high efficiency at light load with Eco-mode
? Low dropout operation
? Output current up to 1A
? Precision enable input
? Overcurrent protection
? Internal compensation
? Internal soft start
? Small overall design size (TSOT-6L package)
? Create a custom design using the LMR14010A
with the WEBENCH? Power Designer
