SGM61410.pdf? Wide 5V to 42V Operating Input Voltage Range
? 0.8V Internal Reference
? Low Quiescent Current: 14μA (TYP)
? Shutdown Current: 0.6μA (TYP)
? Current Output up to 600mA
? 1.2MHz Switching Frequency
? Internal Compensation and Soft-Start
? Simple Design and Minimal External Components
? Up to 95% Efficiency at 12V/400mA
? 0.8V to 20V Adjustable Output Voltage
? Current Limit and Short-Circuit Protection
? Output Over-Voltage Protection and ThermalShutdown
? Power-Save Mode and PWM Mode Operation
? Monotonic Startup with Pre-biased Output
? 90% Maximum Duty Cycle

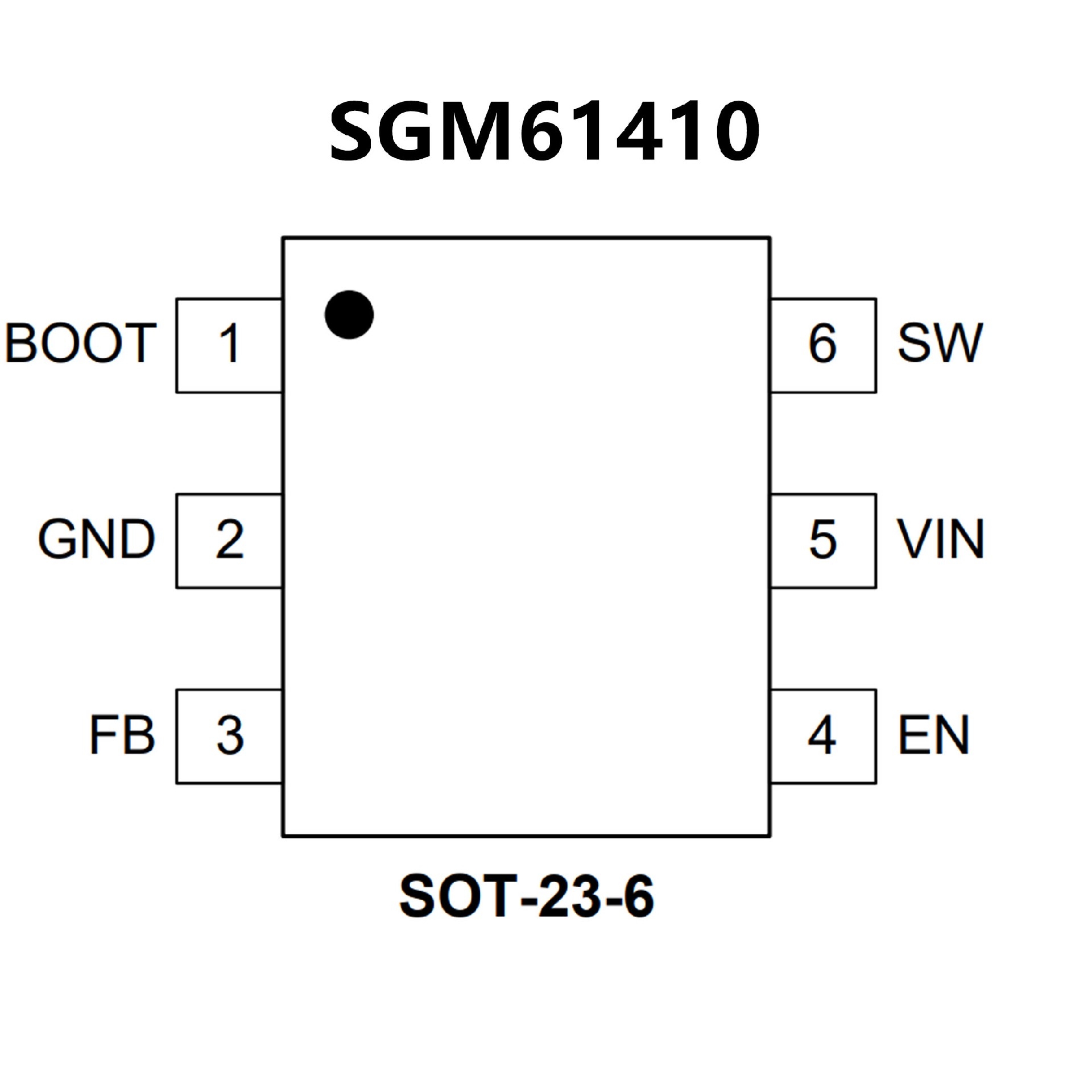

? Available in a Green SOT-23-6 Package
? -40℃ to +125℃ Operating Temperature Range
? 4.7V to 40V operating input range
600mA output current
? Up to 93% efficiency
? High efficiency (>78%) at light load
? Internal Soft-Start
? 800kHz switching frequency
? Input under voltage lockout
? Available in SOT23-6 package
? Current run-away protection
? Short circuit protection
? Thermal protection
