Step-down DC/DC, 4~45V, 0.6A, 1.4MHz, VFB0.8V, SOT23-6, SGM61410 Replace LM2842.
SGM61410
SGM61410.pdf
SGM61410.pdfFEATURES
? 1μA Shutdown Current (12μA Quiescent Current)
? Wide 4.5V to 45V Operating Input Voltage Range
? Synchronously Rectified 1A??? Current Output.
? SGM61410: 1.2MHz Switching Frequency
? SGM61411: 600kHz Switching Frequency
? Compensation Inside
? Internal Soft-Start
? Output Adjustable from 0.8V to 20V
? Cycle-by-cycle current limit and Short-circuit protection
? Output OVP and Thermal Shutdown
? Available in Green SOT-23-6 Package
? -40℃ to +125℃ Operating Temperature Range

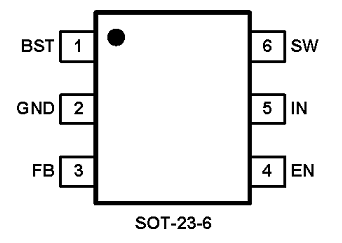

PIN CONFIGUTION
優勢替代
FEATURES
? Input Voltage Range of 4.5V to 42V
? Output Current Options of 100 mA, 300 mA and 600 mA
? Feedback Pin Voltage of 0.765V
? 550 kHz (X) or 1.25 MHz (Y) Switching Frequency
? Low Shutdown IQ, 16 μA Typical
? Short Circuit Protected
? Internally Compensated
? Soft-Start Circuitry
? Small Overall Solution Size (SOT-6L Package)

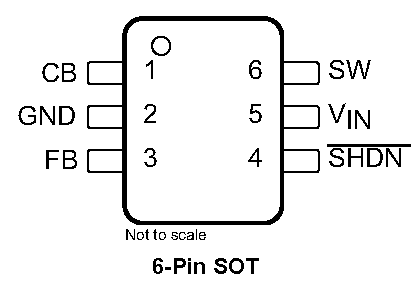

PIN CONFIGUTION
