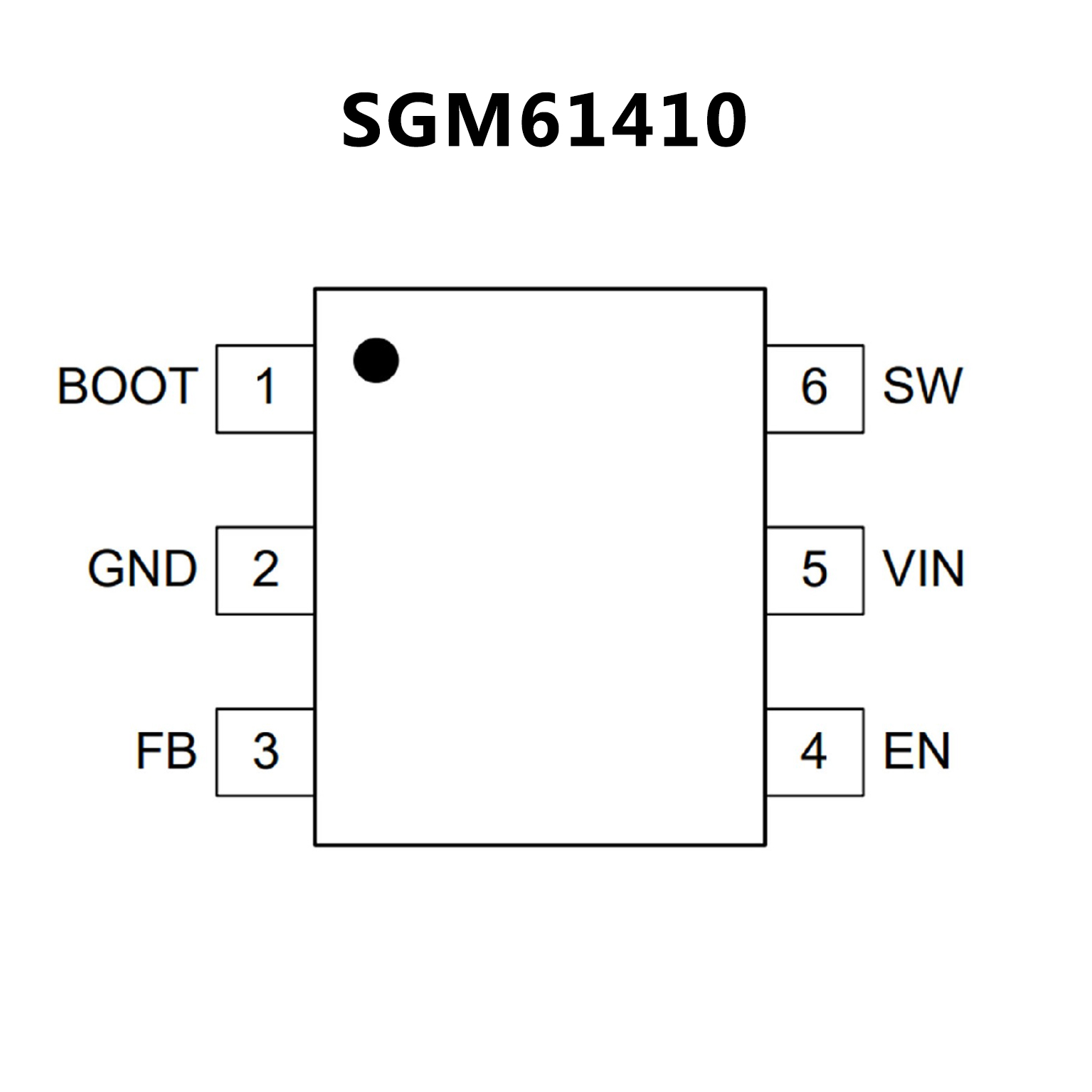

SGM61410.pdf? Wide 5V to 45V Operating Input Voltage Range
? Low Quiescent Current: 14μA (TYP)
? 0.8μA (TYP) Shutdown Current
? Current Output up to 600mA
? Internal Synchronous Rectifier
? 1.2MHz Switching Frequency
? Compensation Inside and Internal Soft-Start
? Up to 95% Efficiency at 12V/400mA
? 0.8V to 20V Adjustable Output Voltage
? Current Limit and Short-Circuit Protection
? Output Over-Voltage Protection and ThermalShutdown
? Available in Green SOT-23-6 Package
? -40℃ to +125℃ Operating Temperature Range
? New product available:
LMR43610 3 to 36-V, 1-A, 200-kHz to 2.2-MHz
synchronous converter
? For faster time to market:
TLVM23615 3 to 36-V, 1.5-A, 200-kHz to 2.2-MHz
power module

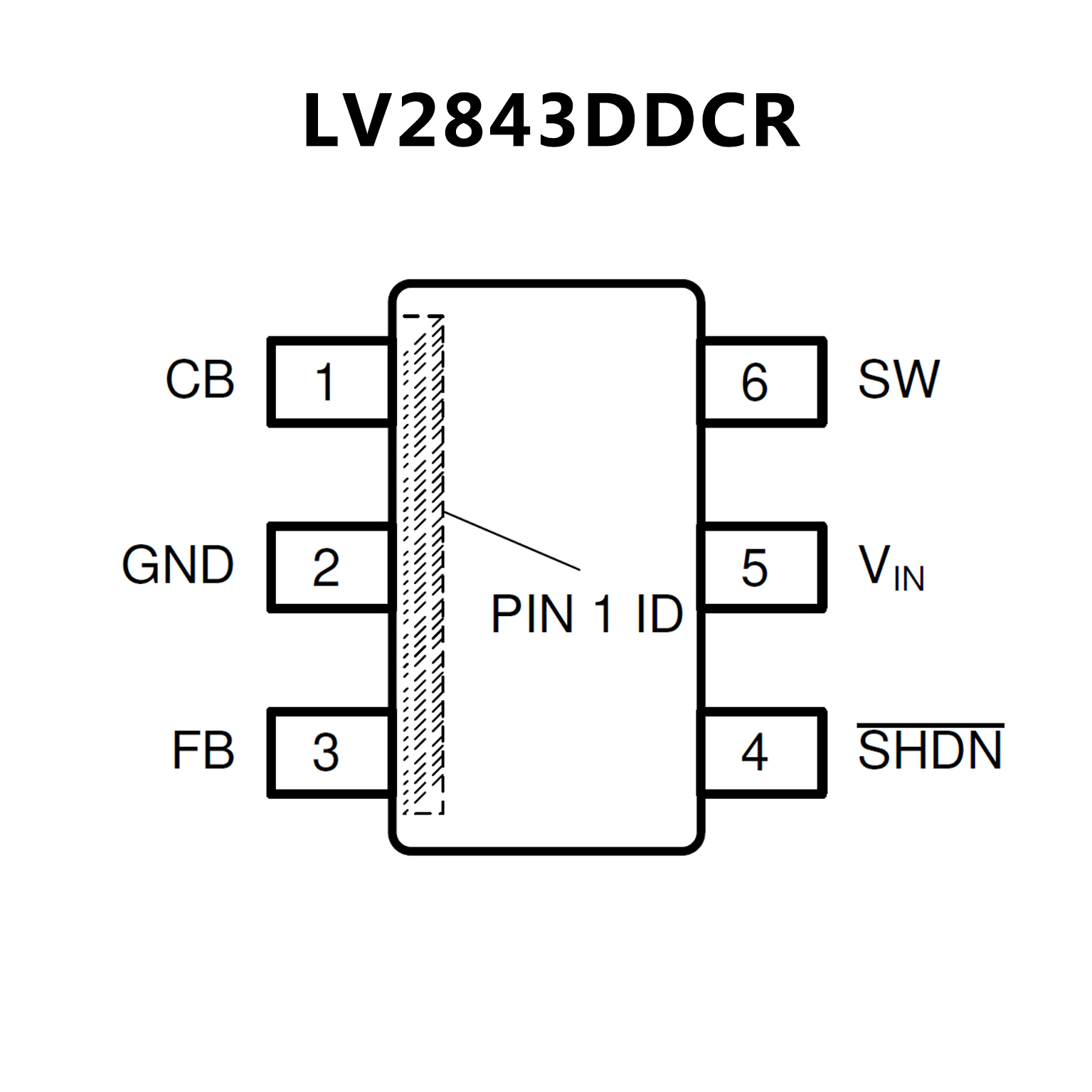

? Input range 4 V to 40 V with 45-V transients
? 0.7-MHz switching frequency
? Ultra-high efficiency for light load with Eco-mode
? Low dropout operation
? Output current up to 1A
? Precision enable input
? Overcurrent protection
? Internal compensation
? Internal soft start
? Small overall solution size (TSOT-6L package)
