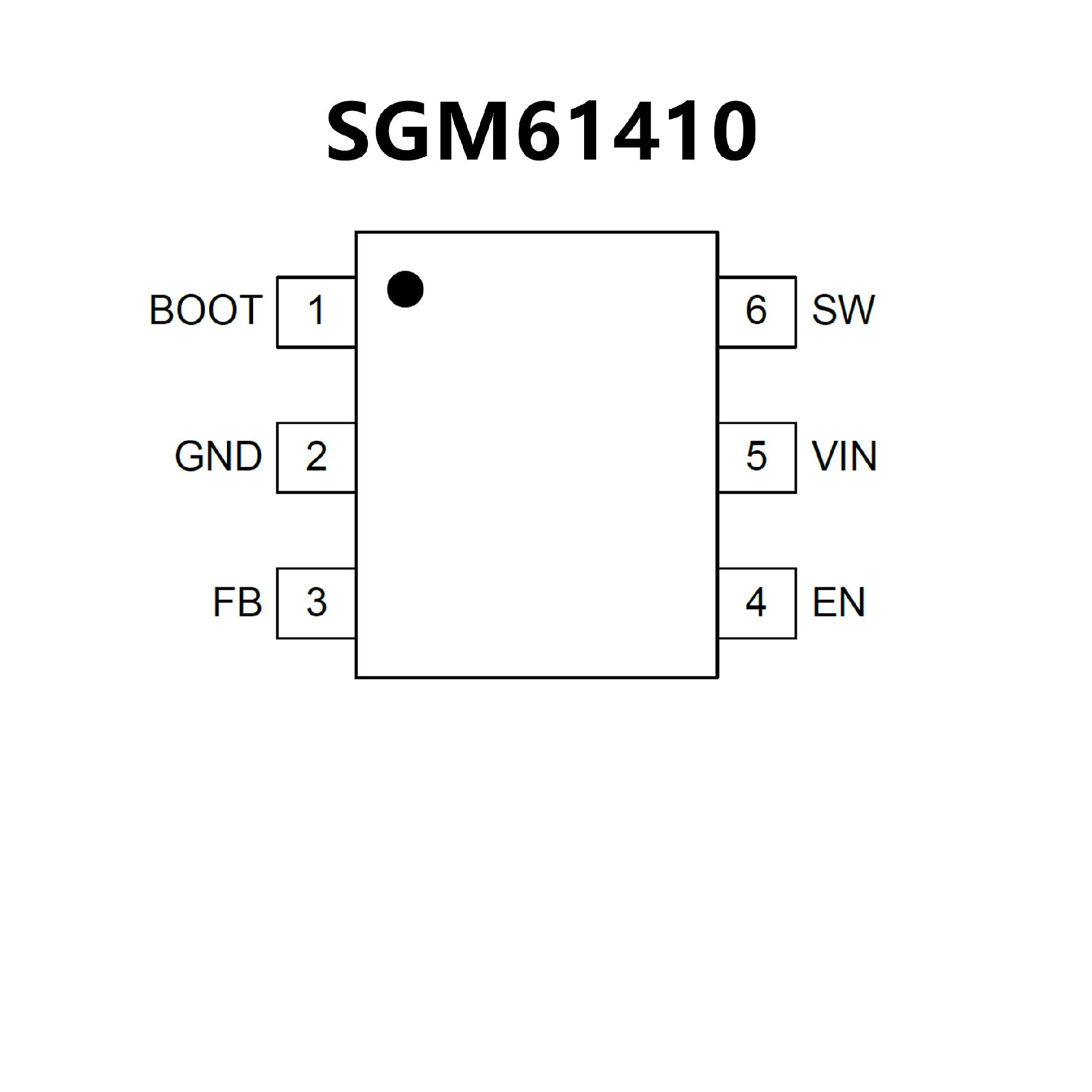

SGM61410.pdf? Wide 5V to 42V Operating Input Voltage Range
? 0.8V Internal Reference
? Low Quiescent Current: 14μA (TYP)
? Shutdown Current: 0.6μA (TYP)
? Current Output up to 600mA
? 1.2MHz Switching Frequency
? Internal Compensation and Soft-Start
? Simple Design and Minimal External Components
? Up to 95% Efficiency at 12V/400mA
? 0.8V to 20V Adjustable Output Voltage
? Current Limit and Short-Circuit Protection
? Output Over-Voltage Protection and Thermal Shutdown
? Power-Save Mode and PWM Mode Operation
? Monotonic Startup with Pre-biased Output
? 90% Maximum Duty Cycle
? Available in a Green SOT-23-6 Package
? -40℃ to +125℃ Operating Temperature Range
? Up to 96% Typical Efficiency

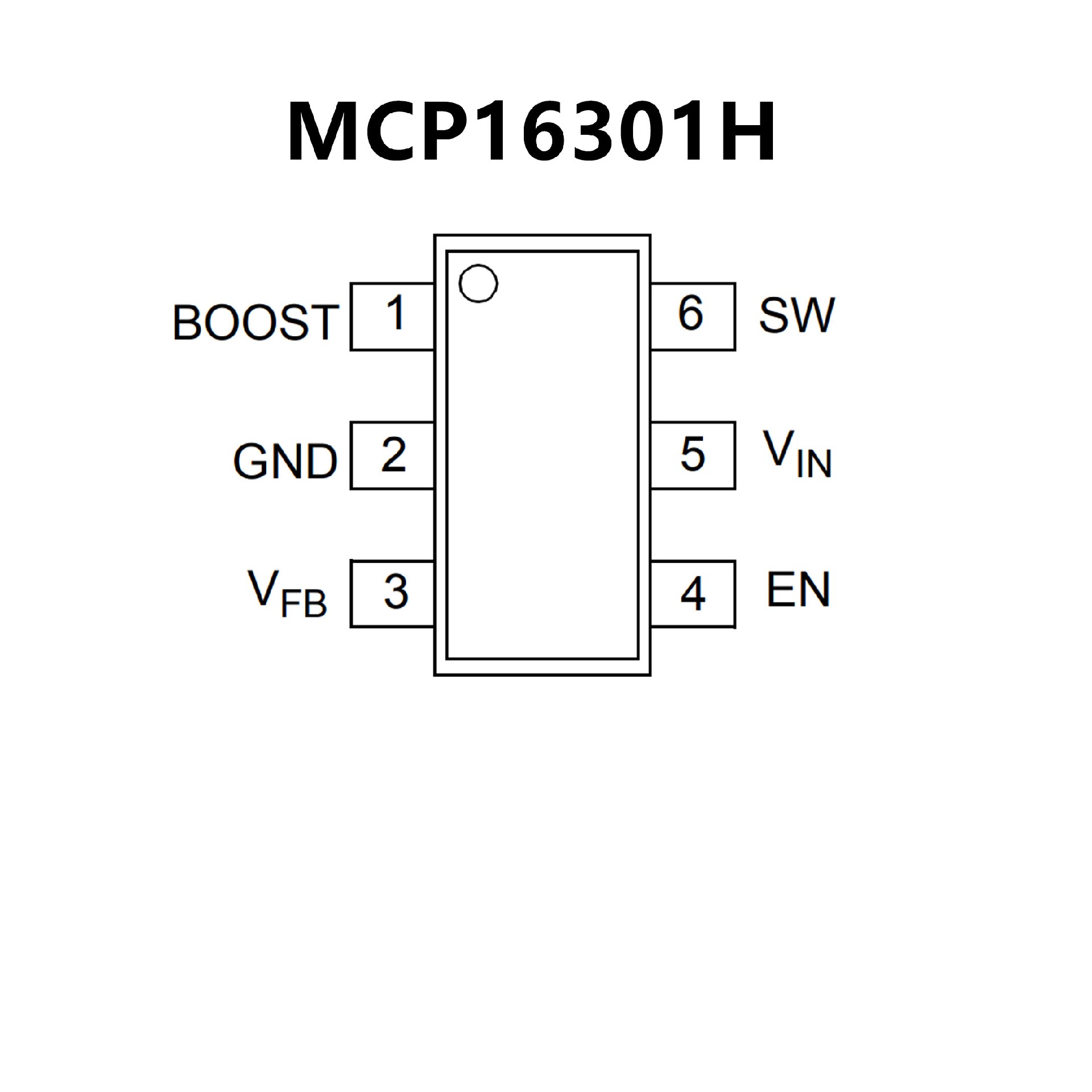

? Input Voltage Range:
4.0V to 30V (MCP16301)
4.7V to 36V (MCP16301H)
? Output Voltage Range: 2.0V to 15V
? 2% Output Voltage Accuracy
? Qualification: AEC-Q100 Rev G, Grade 1
(-40°C to +125°C)
? Integrated N-Channel Buck Switch: 460 m?
? Minimum 600 mA Output Current Over All Input
Voltage Range (See Figure 2-6 for Maximum
Output Current vs. VIN):
up to 1A output current at 3.3V, 5V and 12V
VOUT, SOT-23 package at +25°C ambient
temperature
? 500 kHz Fixed Frequency
? Adjustable Output Voltage
? Low Device Shutdown Current
? Peak Current Mode Control
? Internal Compensation
? Stable with Ceramic Capacitors
? Internal Soft-Start
? Cycle-by-Cycle Peak Current Limit
? Undervoltage Lockout (UVLO): 3.5V
? Overtemperature Protection
? Available Package: SOT-23-6
