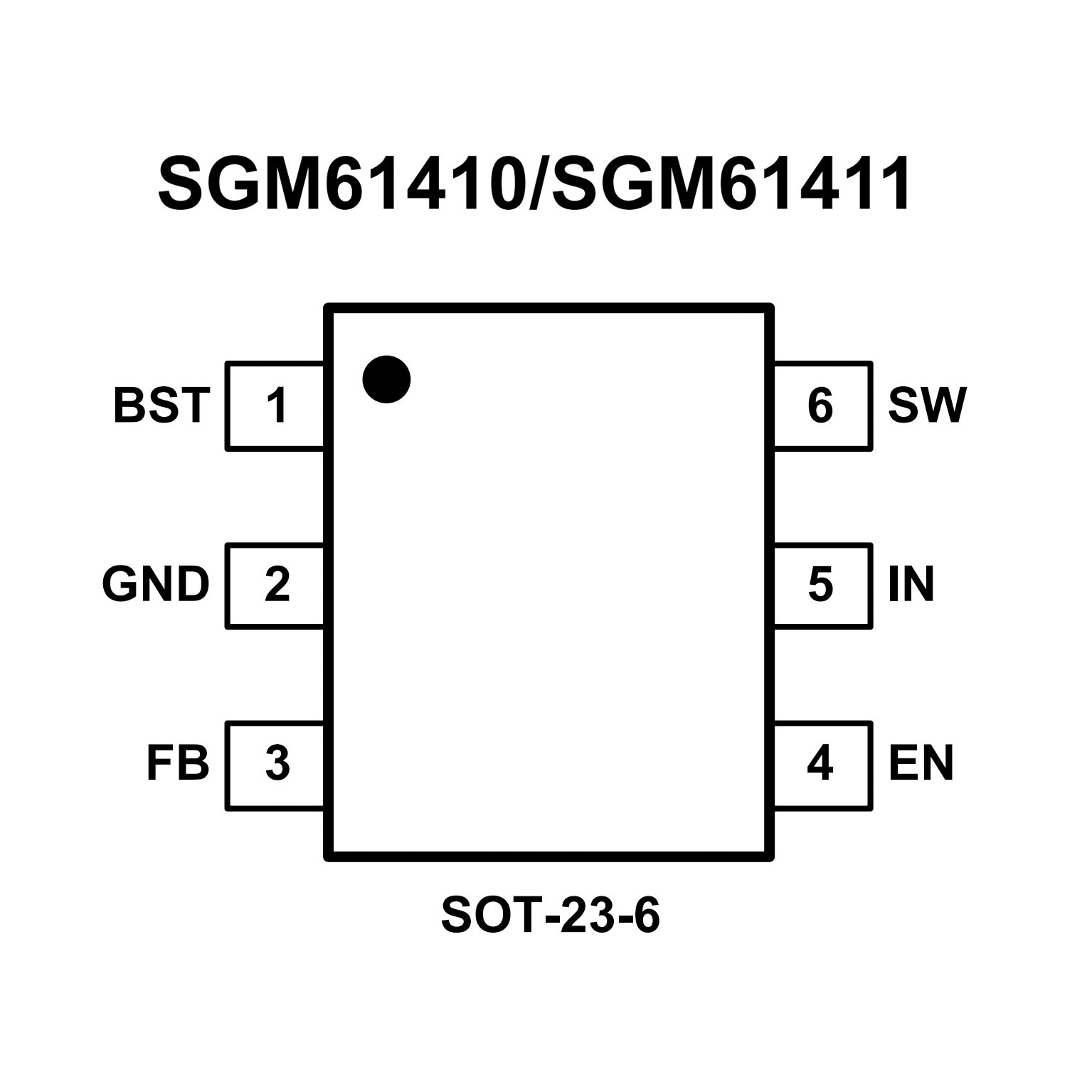

SGM61410.pdf? 1μA Shutdown Current (12μA Quiescent Current)
? Wide 4.5V to 45V Operating Input Voltage Range
? Synchronously Rectified 1A??? Current Output.
? SGM61410: 1.2MHz Switching Frequency
? Compensation Inside
? Internal Soft-Start
? Output Adjustable from 0.8V to 20V
? Cycle-by-cycle current limit and Short-circuit protection
? Output OVP and Thermal Shutdown
? Available in Green SOT-23-6 Package
? -40℃ to +125℃ Operating Temperature Range

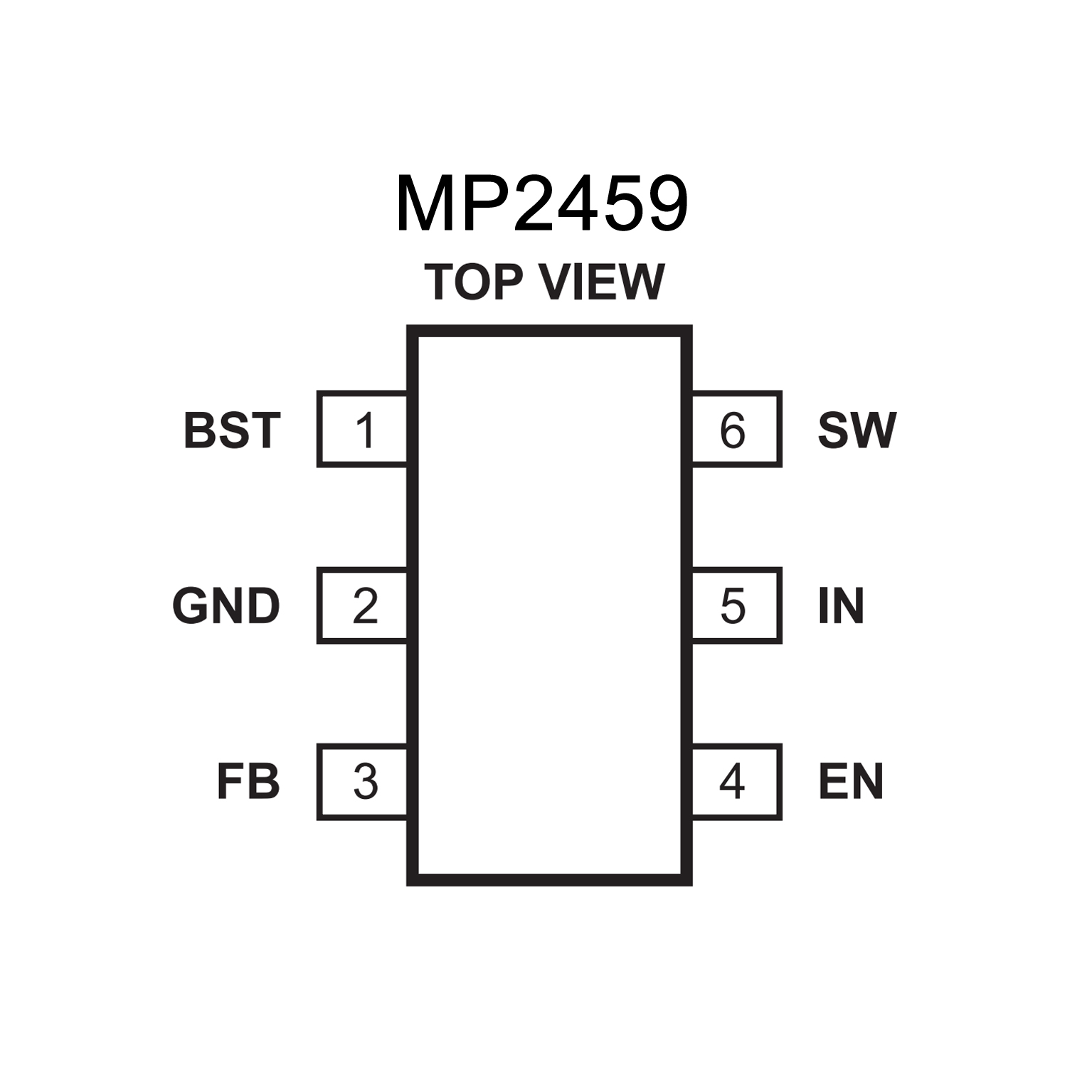

? 0.5A Peak Output Current
? 15 Internal Power MOSFET
? Stable with Low-ESR Ceramic Output Capacitors
? Up to 90% Efficiency
? 0.1μA Shutdown Mode
? Fixed 480kHz Frequency
? Thermal Shutdown
? Cycle-by-Cycle Over-Current Protection
? Wide 4.5V-to-55V Operating Input Range
? Output Adjustable from 0.81V to 0.95*VIN
? Available in a TSOT23-6 Package
