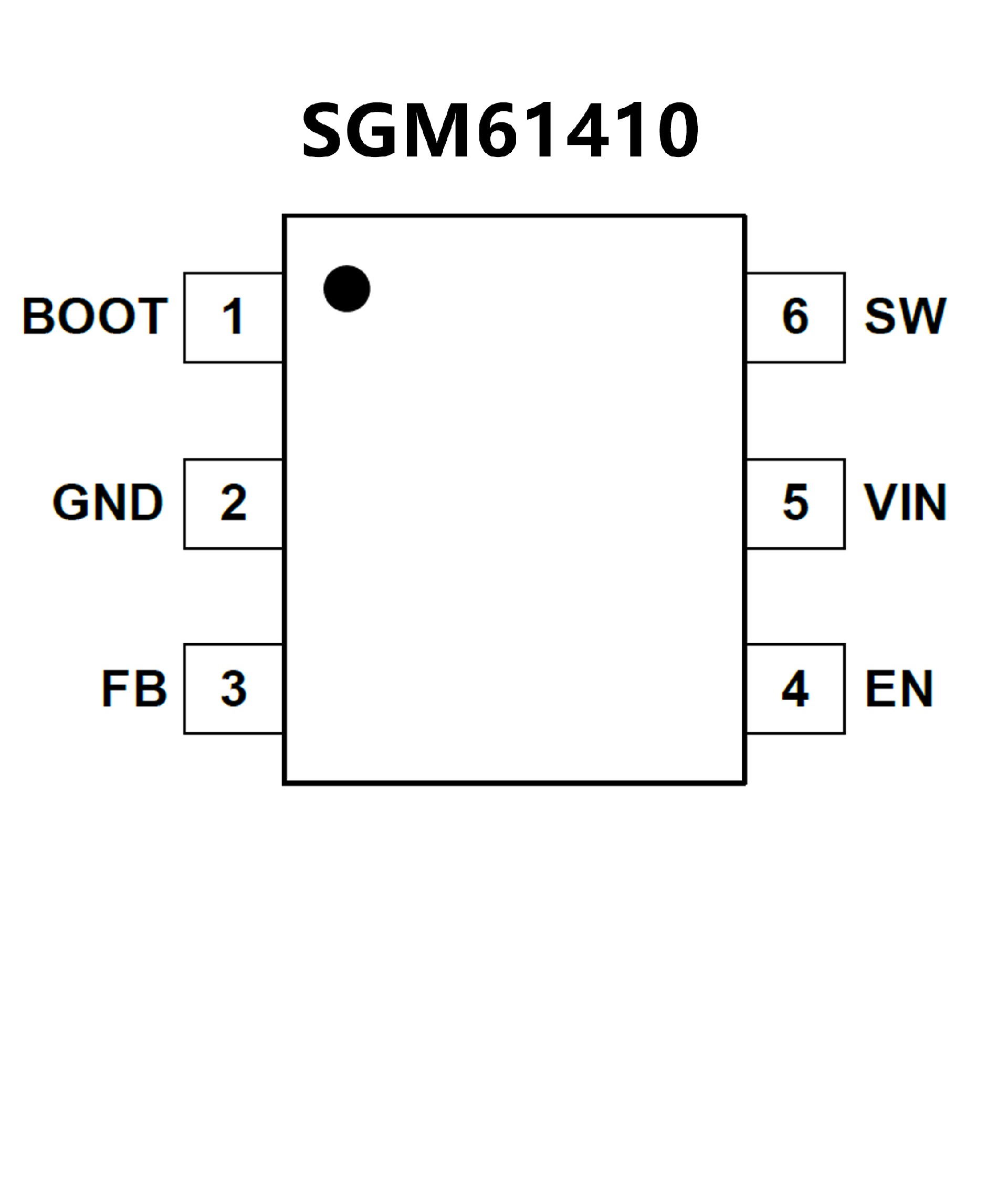

SGM61410.pdf? Wide 5V to 42V Operating Input Voltage Range
? 0.8V Internal Reference
? Low Quiescent Current: 14μA (TYP)
? Shutdown Current: 0.6μA (TYP)
? Current Output up to 600mA
? 1.2MHz Switching Frequency
? Internal Compensation and Soft-Start
? Simple Design and Minimal External Components
? Up to 95% Efficiency at 12V/400mA
? 0.8V to 20V Adjustable Output Voltage
? Current Limit and Short-Circuit Protection
? Output Over-Voltage Protection and Thermal
Shutdown
? Power-Save Mode and PWM Mode Operation
? Monotonic Startup with Pre-biased Output
? 90% Maximum Duty Cycle
? Available in a Green SOT-23-6 Package
? -40℃ to +125℃ Operating Temperature Range
? Configured for Rugged Industrial Applications
Input Voltage Range: 4 V to 36 V
600-mA Continuous Output Current
Minimum Switching-On Time: 60 ns
98% Maximum Duty Cycle
Support Startup with Pre-Biased Output
Short Circuit Protection with Hiccup Mode
±1.5% Tolerance Voltage Reference over
Temperature from –40°C to 125°C
Precision Enable
? Small Solution Size and Ease of Use
Integrated Synchronous Rectification
Internal Compensation for Ease of Use
SOT-23-6 Package
? Various Options in Pin-to-Pin Compatible Package
1.1-MHz and 2.1-MHz Frequency Options
PFM and Forced PWM (FPWM) Options
Fixed 3.3-V Output Option

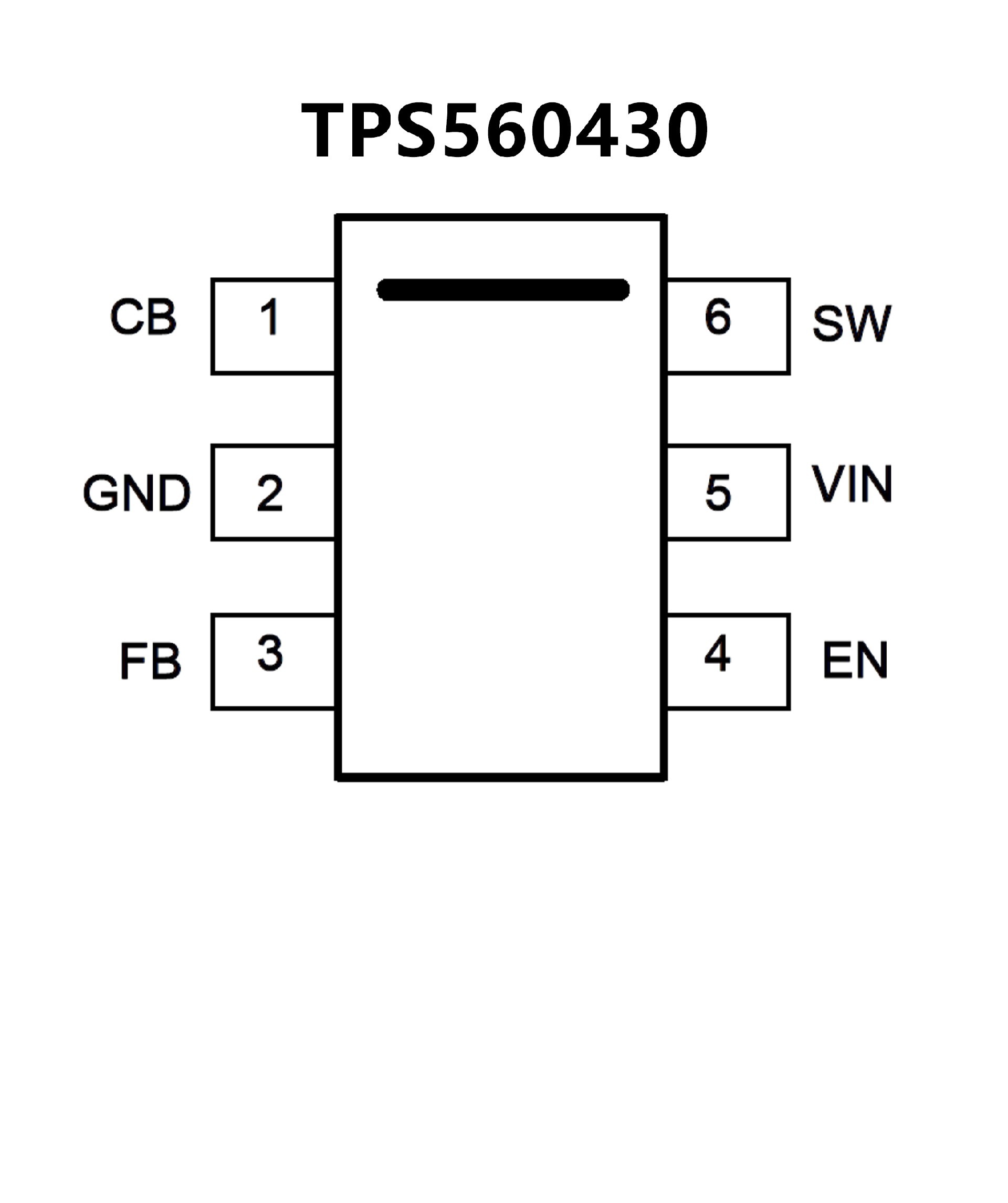

? Create a Custom Design Using the TPS560430
With the WEBENCH? Power Designer
