1.2MHz, 1.2A, 42V Synchronous Step-Down Converter, SGM61412 Replace GMR2810.
SGM61412
SGM61412.pdf
FEATURES
? Wide 4.5V to 42V Input Voltage Range
? Current Output up to 1.2A
? 1.2MHz Switching Frequency
? 0.83V Internal Reference
? SGM61412A:PSM and PWM Mode
? SGM61412B: PFM and PWM Mode
? Low Quiescent Current: 55μA (TYP)
? Ultra-Low Shutdown Current: 1.2μA (TYP)
? 0.83V to 20V Adjustable Output Voltage
? Internal Compensation and Soft-Start
? Precision Enable Function with UVLO Setting
? Monotonic Startup with Pre-biased Output
? Thermal Shutdown Protection
? Available in a Green TSOT-23-6 Package
? -40℃ to +125℃ Operating Temperature Range

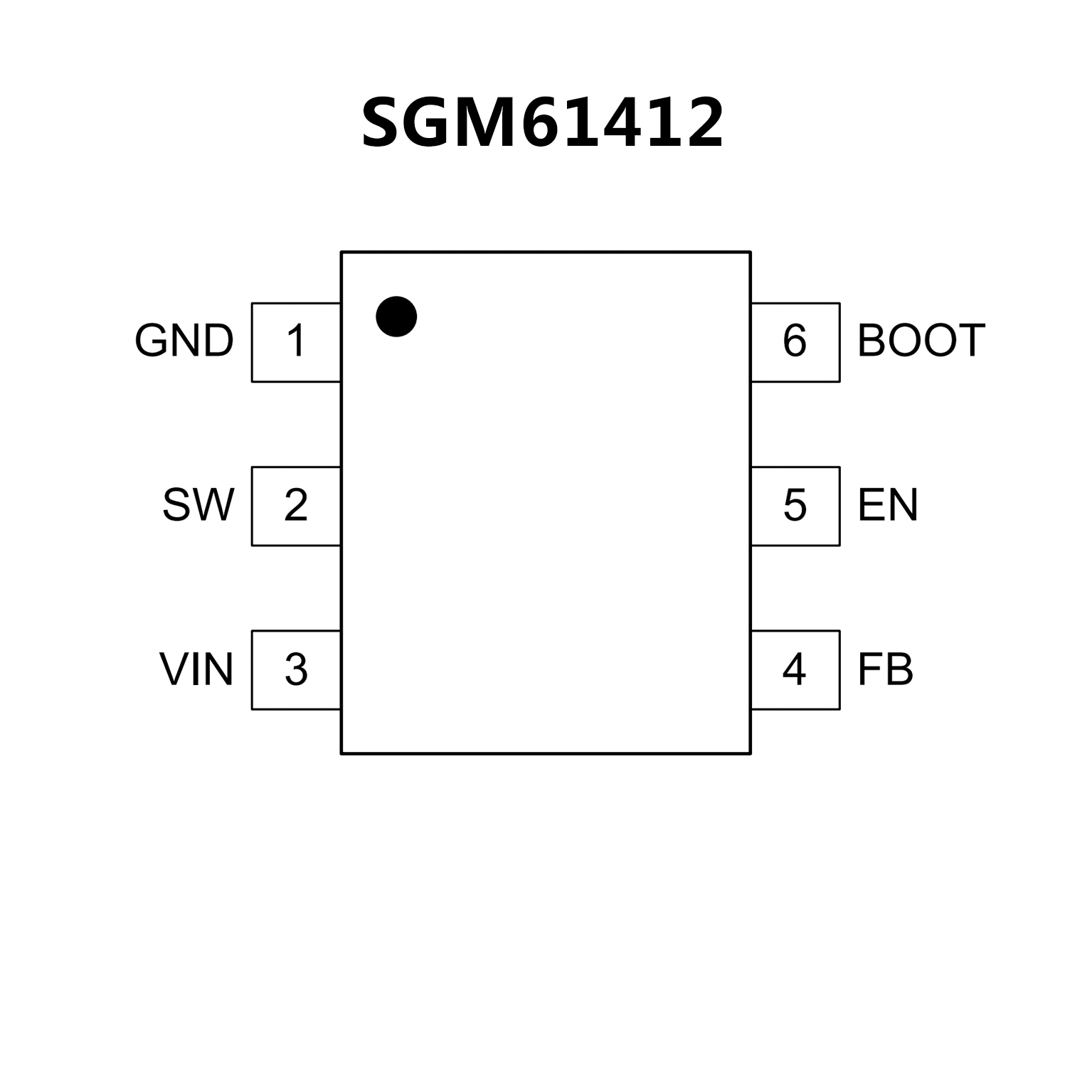

PIN CONFIGUTION
