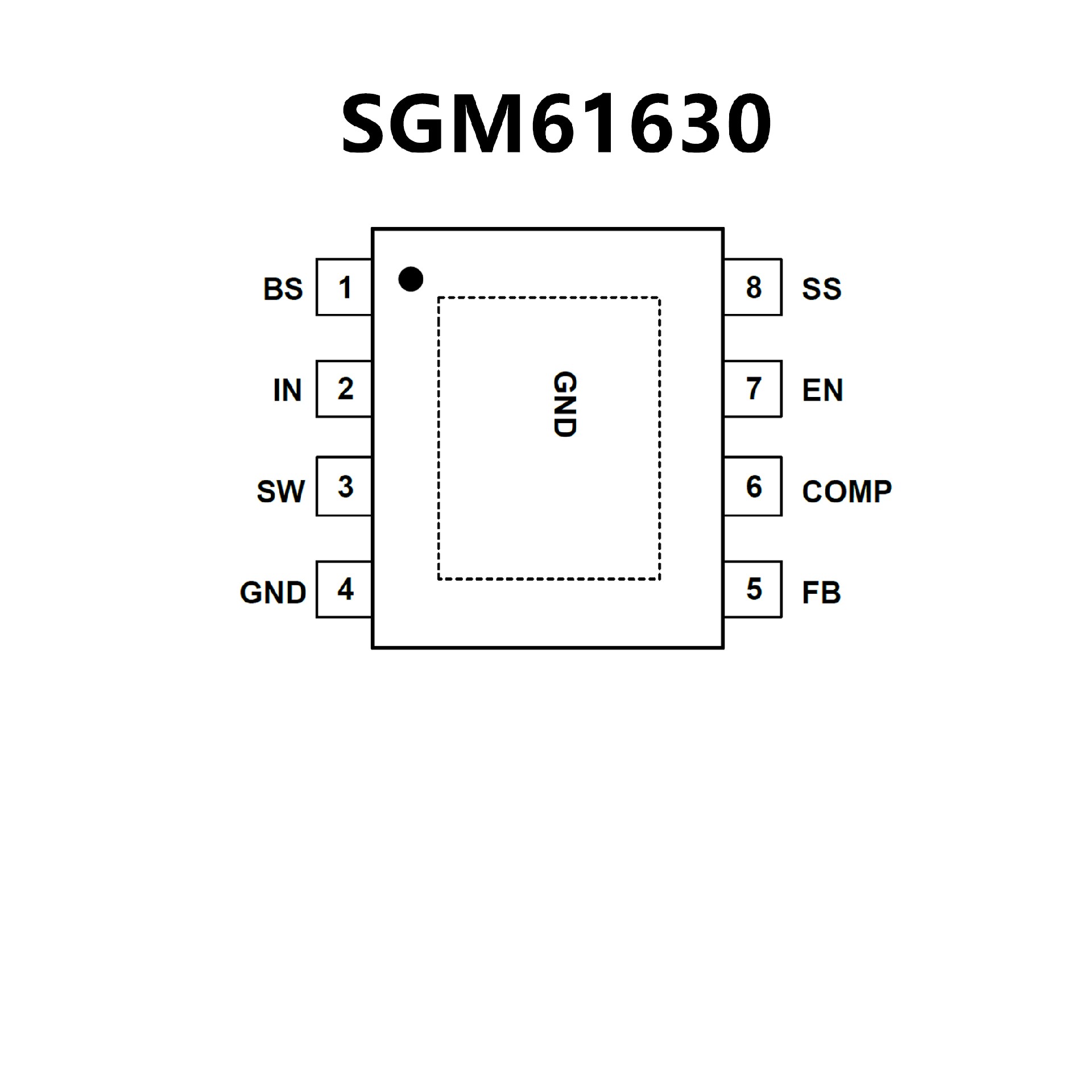

SGM61630.pdf? 3A Output Current
? High Efficiency: Up to 94%
? 4.5V to 28.5V Input Voltage Range
? < 18μA Shutdown Supply Current
? 100mΩ Internal Power MOSFET Switch
? Fixed 385kHz Switching Frequency
? Output Adjustable from 0.8V to 25V
? Cycle-by-Cycle Current Limit Protection
? Thermal Shutdown Protection
? Under-Voltage Lockout
? Stable with Low ESR Ceramic Capacitors
? -40℃ to +85℃ Operating Temperature Range
? Available in a Green SOIC-8 (Exposed Pad) Package
? New product available: LM76003 60-V, 3.5-A, 2.2-
MHz synchronous converter
? 4.3-V to 60-V input range
? 3-A continuous output current
? Ultra-low 40-μA operating quiescent current
? 155-mΩ high-side MOSFET
? Current mode control
? Adjustable switching frequency from 200 kHz to
2.5 MHz
? Frequency synchronization to external clock
? Internal compensation for ease of use
? High duty cycle operation supported
? Precision enable input
? 1-μA shutdown current
? Thermal, overvoltage and short protection
? 8-pin HSOIC with PowerPAD? package
? Create a custom design using the LM76003 with
the WEBENCH? Power Designer

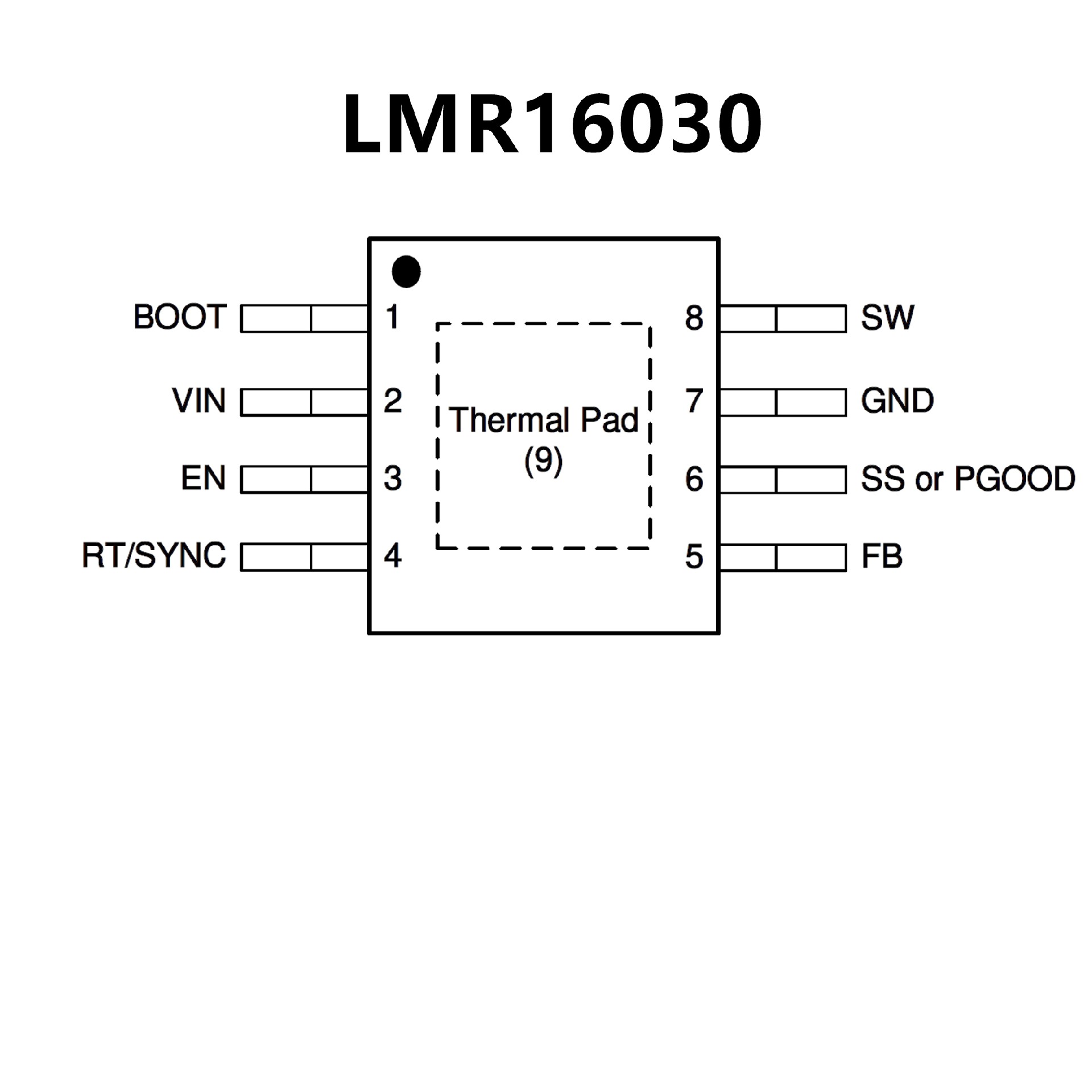

? Create a custom design using the LM16030 with
the WEBENCH? Power Designer
