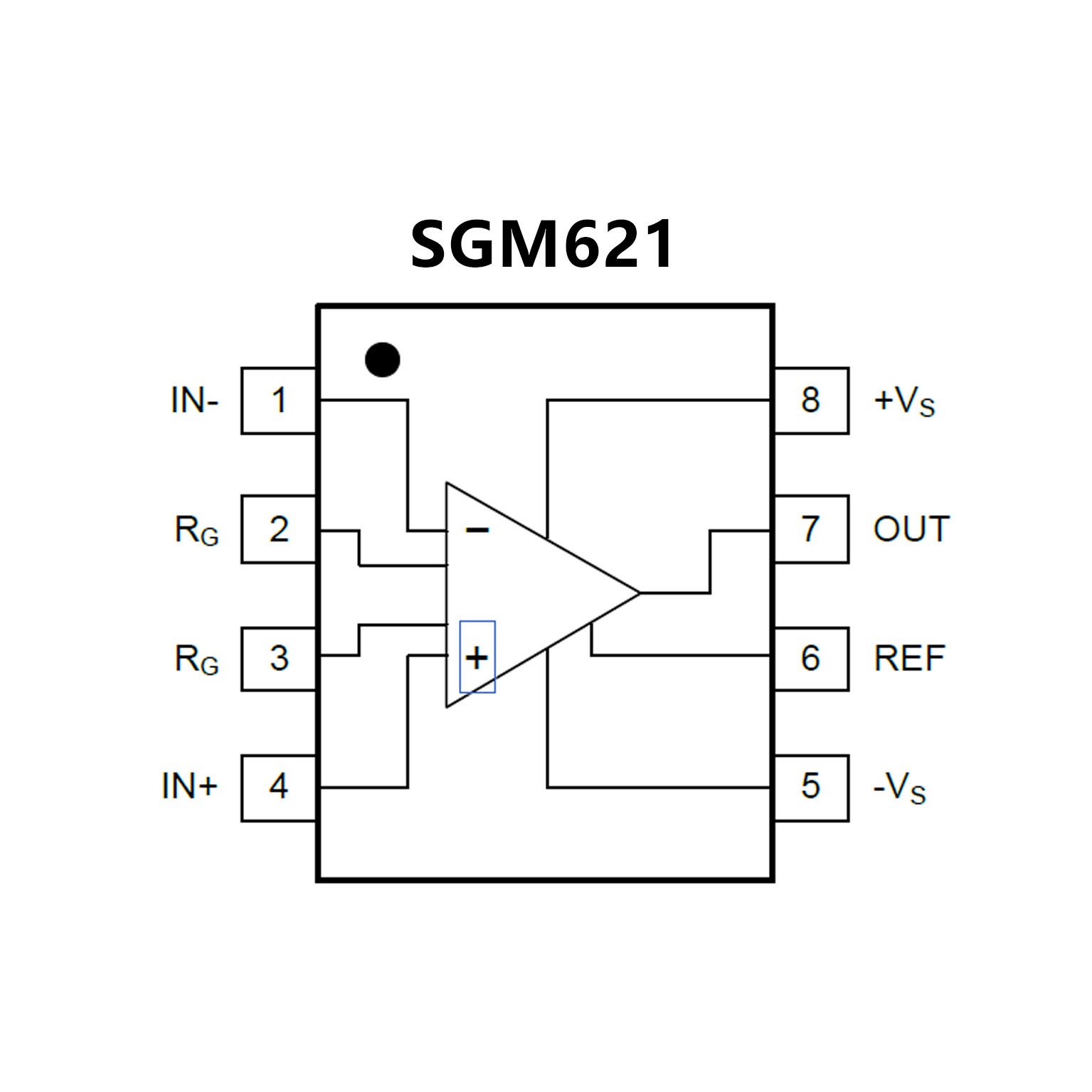

SGM621.pdf? Single External Resistor Gain Set (Set Gain from 1 to 10000)
? Input Offset Voltage: 150μV (MAX)
? Input Bias Current: 15nA (TYP)
? Common Mode Rejection Ratio: 105dB (TYP) (G = 10)
? Input Voltage Noise: 6nV/√Hz at 1kHz
? 0.1Hz to 10Hz Voltage Noise: 0.4μVP-P
? Bandwidth: 140kHz (G = 100)
? Settling Time to 0.01%: 10μs (G = 100)
? Rail-to-Rail Output
? Support Single or Dual Power Supplies: 4.6V to 36V or ±2.3V to ±18V
? Low Power Supply Current: 1.3mA (TYP)
? -40℃ to +125℃ Operating Temperature Range
? Available in Green SOIC-8 and MSOP-8 Packages

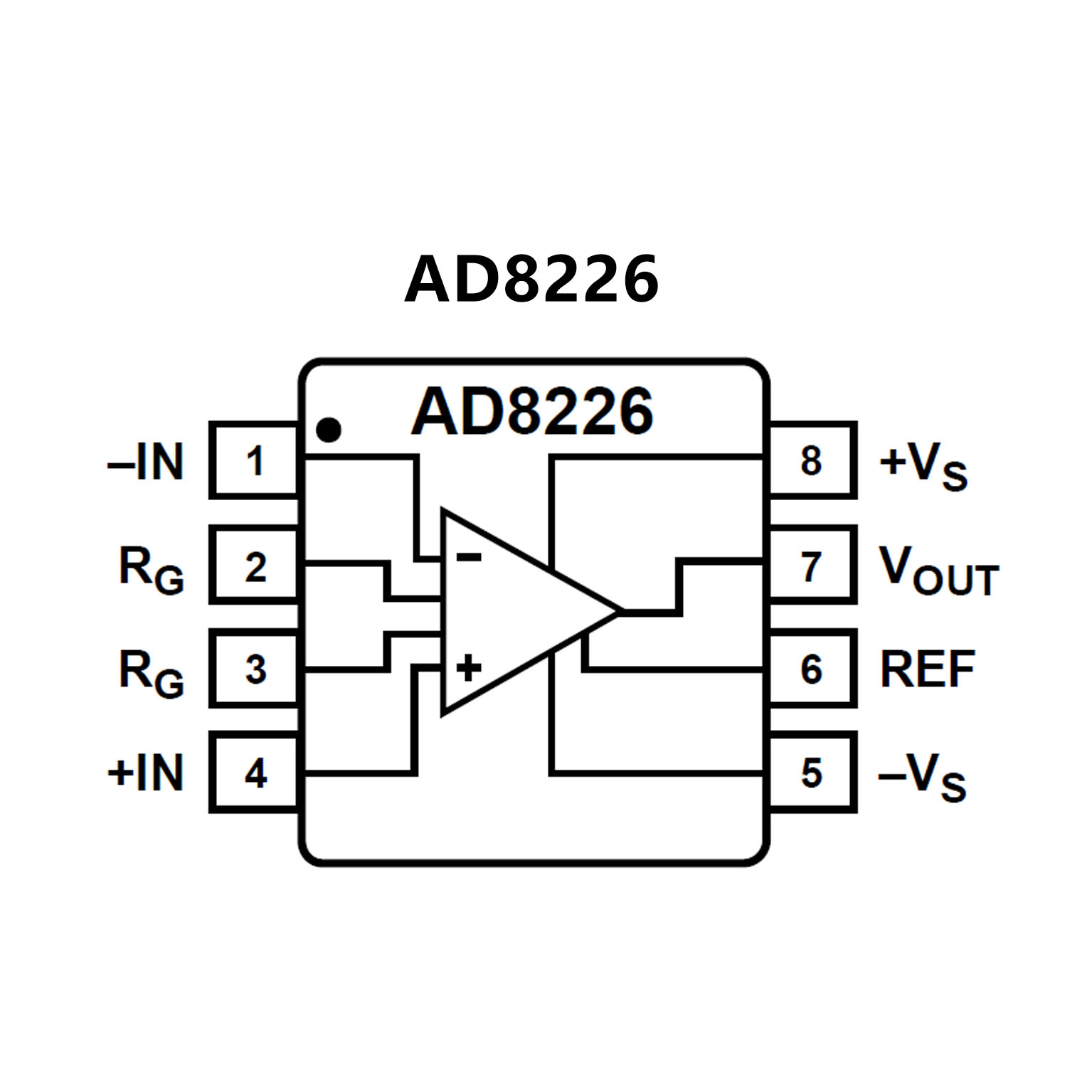

? Gain set with 1 external resistor
? Gain range: 1 to 1000
? Input voltage goes below ground
? Inputs protected beyond supplies
? Very wide power supply range
? Single supply: 2.2 V to 36 V
? Dual supplies: ±1.35 V to ±18 V
? Bandwidth (G = 1): 1.5 MHz
? CMRR (G = 1): 90 dB minimum for BR models
? Input noise: 22 nV/√Hz
? Typical supply current: 350 μA
? Specified temperature: ?40°C to +125°C
? 8-lead SOIC and MSOP packages
