SGM65231.pdf? High Bandwidth Data Path (up to 500MHz)
? 5V Tolerant I/Os with Device
Powered Up or Powered Down
? Low and Flat On-Resistance (RON)
Characteristics Over Operating Range: 4.5Ω (TYP)
? Rail-to-Rail Switching on Data I/O Ports
0V to 5V Switching with 3.3V VCC
0V to 3.3V Switching with 2.5V VCC
? Bidirectional Data Flow
? Low Input/Output Capacitance
Minimizes Loading and Signal Distortion
? Data and Control Inputs Provide
Undershoot Clamp Diodes
? Low Power Consumption: ICC = 0.5mA (TYP)
? VCC Operating Range from 2.3V to 3.6V
? Data I/Os Support 0V to 5V Signaling Levels:
(0.8V, 1.2V, 1.5V, 1.8V, 2.5V, 3.3V, 5V)
? Control Input Can Be Driven
by TTL or 5V/3.3V CMOS Outputs
? IOFF Supports Partial-Power-Down Mode Operation
? Available in Green TQFN-4.5×3.5-20L
and TSSOP-20 Packages

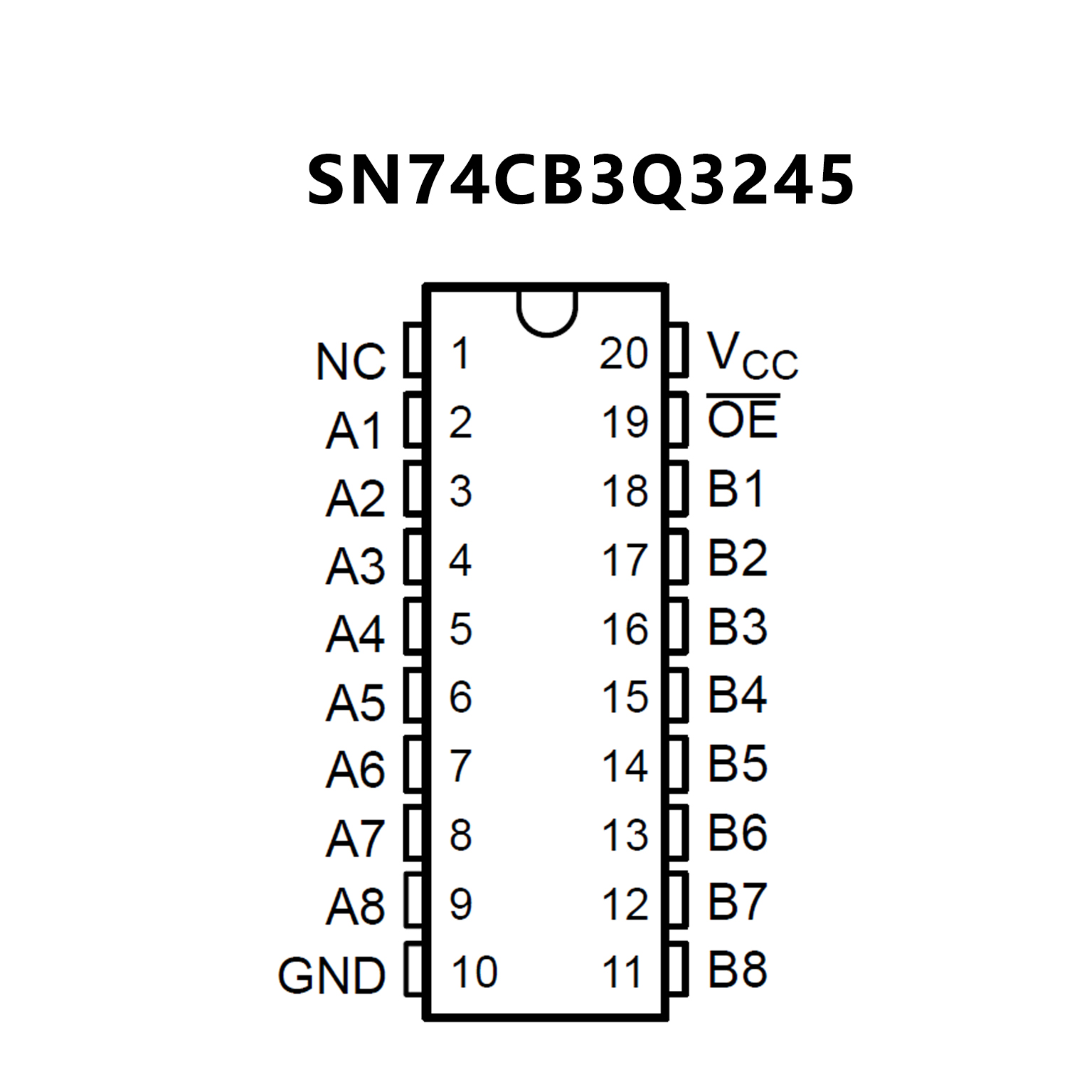

? High-Bandwidth Data Path(up to 500 MHz (1))
? Equivalent to IDTQS3VH384 Device
? 5-V Tolerant I/Os With Device
Powered Up or Powered Down
? Low and Flat ON-State Resistance
(ron) Characteristics Over Operating
Range(ron = 4 ? Typ)
? Rail-to-Rail Switching on Data I/O Ports
0- to 5-V Switching With 3.3-V VCC
0- to 3.3-V Switching With 2.5-V V
? Bidirectional Data Flow With
Near-Zero Propagation Delay
? Low Input/Output Capacitance
Minimizes Loading and Signal Distortion
(Cio(OFF) = 3.5 pF Typ)
? Fast Switching Frequency (fOE = 20 MHz Max)
? Data and Control Inputs Provide
Undershoot Clamp Diodes
? Low Power Consumption (ICC = 1 mA Typical)
? VCC Operating Range From 2.3 V to 3.6 V
? Data I/Os Support 0- to 5-V Signaling
Levels (0.8 V, 1.2 V, 1.5 V, 1.8 V, 2.5 V, 3.3 V, 5 V)
? Control Inputs Can Be Driven by TTL or
5-V/3.3-V CMOS Outputs
? Ioff Supports Partial-Power-Down Mode Operation
? Latch-Up Performance Exceeds
100 mA Per JESD 78, Class II
? ESD Performance Tested Per JESD 22
2000-V Human-Body Model(A114-B, Class II)
1000-V Charged-Device Model (C101)
? Supports Both Digital and Analog Applications:
PCI Interface, Differential Signal Interface,
Memory Interleaving, Bus Isolation,
Low-Distortion Signal Gating
