SGM6602-12YG.pdf? Input Voltage Range: 1.8V to
5.5V, 1.6V after Start-Up
? Output Voltage Up to 20V
? Integrated Isolation Switch
? 900mA (TYP) Switch Current
? Up to 85% Efficiency at 3.6V Input and 12V Output
? Less than 1μA Ultra-Low Shutdown Current
? Power-Save Operation Mode at Light Load
? Internal 5ms Soft-Start Time
? True Disconnection between
Input and Output
during Shutdown
? Output Short-Circuit Protection
? Output Over-Voltage Protection
? Thermal Shutdown Protection
? -40℃ to +85℃ Operating Temperature Range

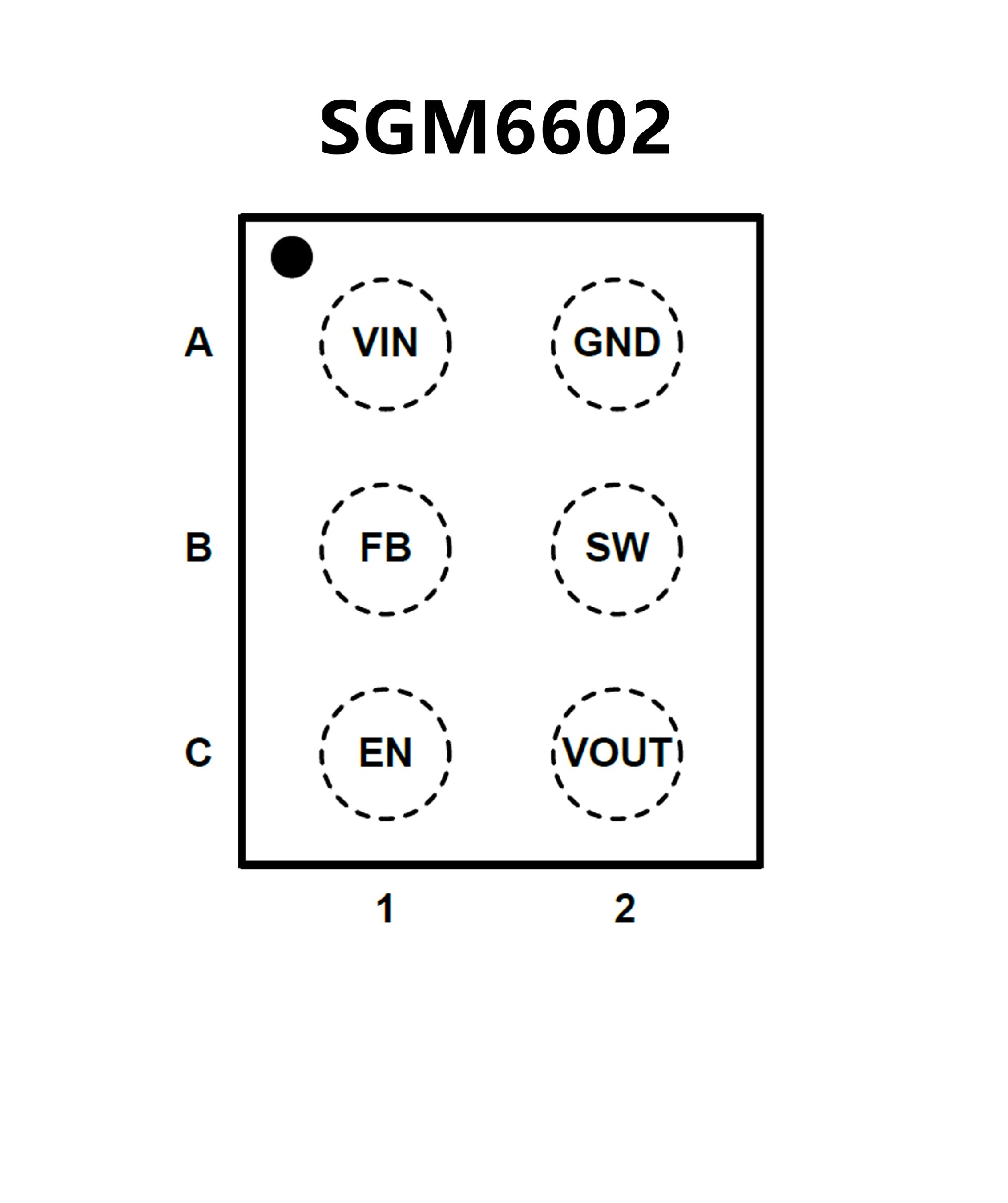

? Available in Green WLCSP-0.8×1.2-6B and
TDFN-2×2-6L Packages
? Input Voltage Range: 1.8 V to 5.5 V, 1.6 V after Startup
? Output Voltage Up to 28 V
? Integrated Power Diode and Isolation Switch
? 900-mA (typical) Switch Current
? Up to 85% Efficiency at 3.6-V Input and 12-V Output
? 500-nA Ultra-low Shutdown Current
? ±2% Output Voltage Accuracy
? Power Save Operation Mode at Light Load
? Internal 10-ms Soft Start Time
? True Disconnection between Input and
Output during Shutdown
? Output Short Circuit Protection
? Output Over-Voltage Protection
? Thermal Shutdown Protection

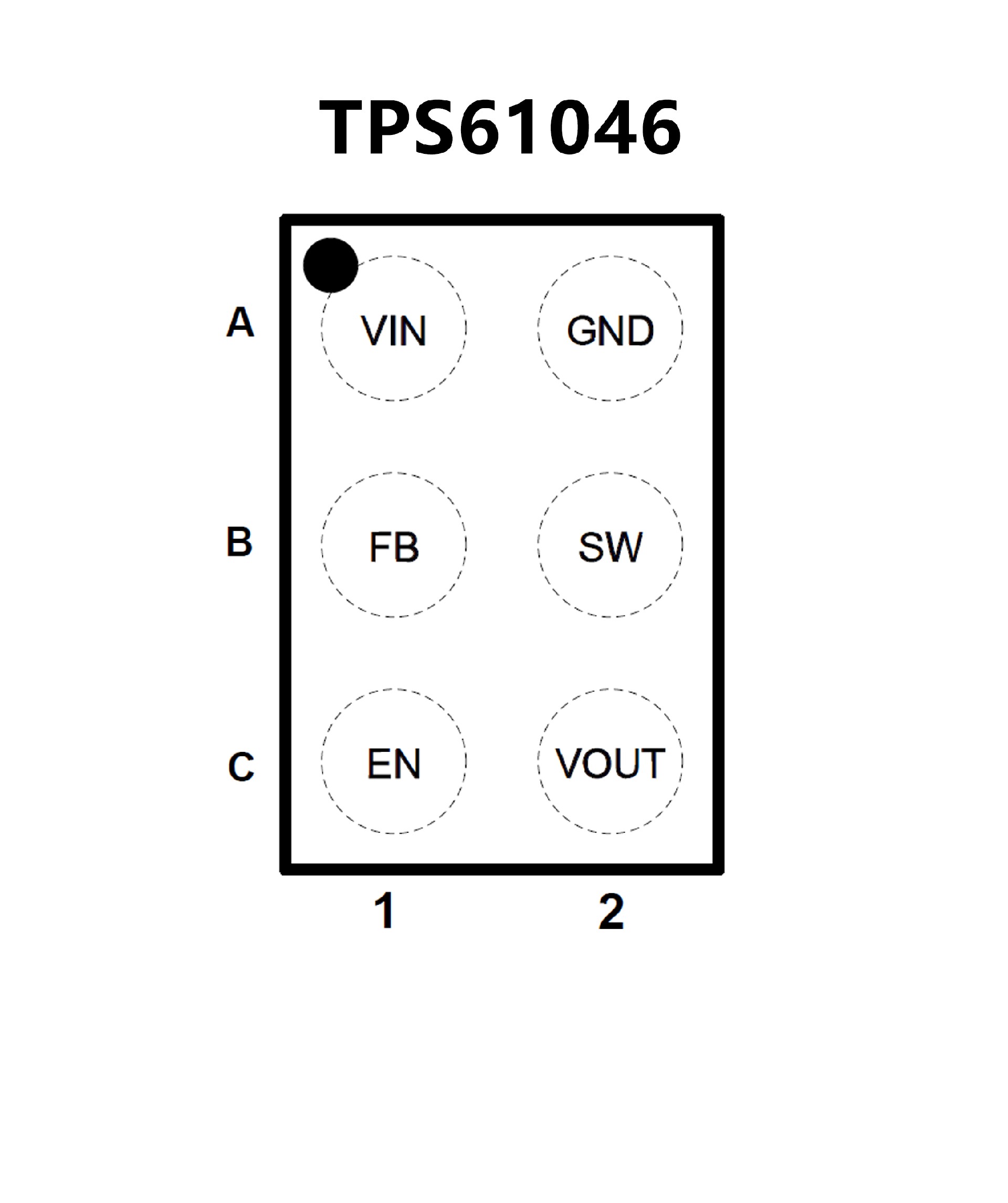

? 0.80-mm × 1.20-mm WCSP package
