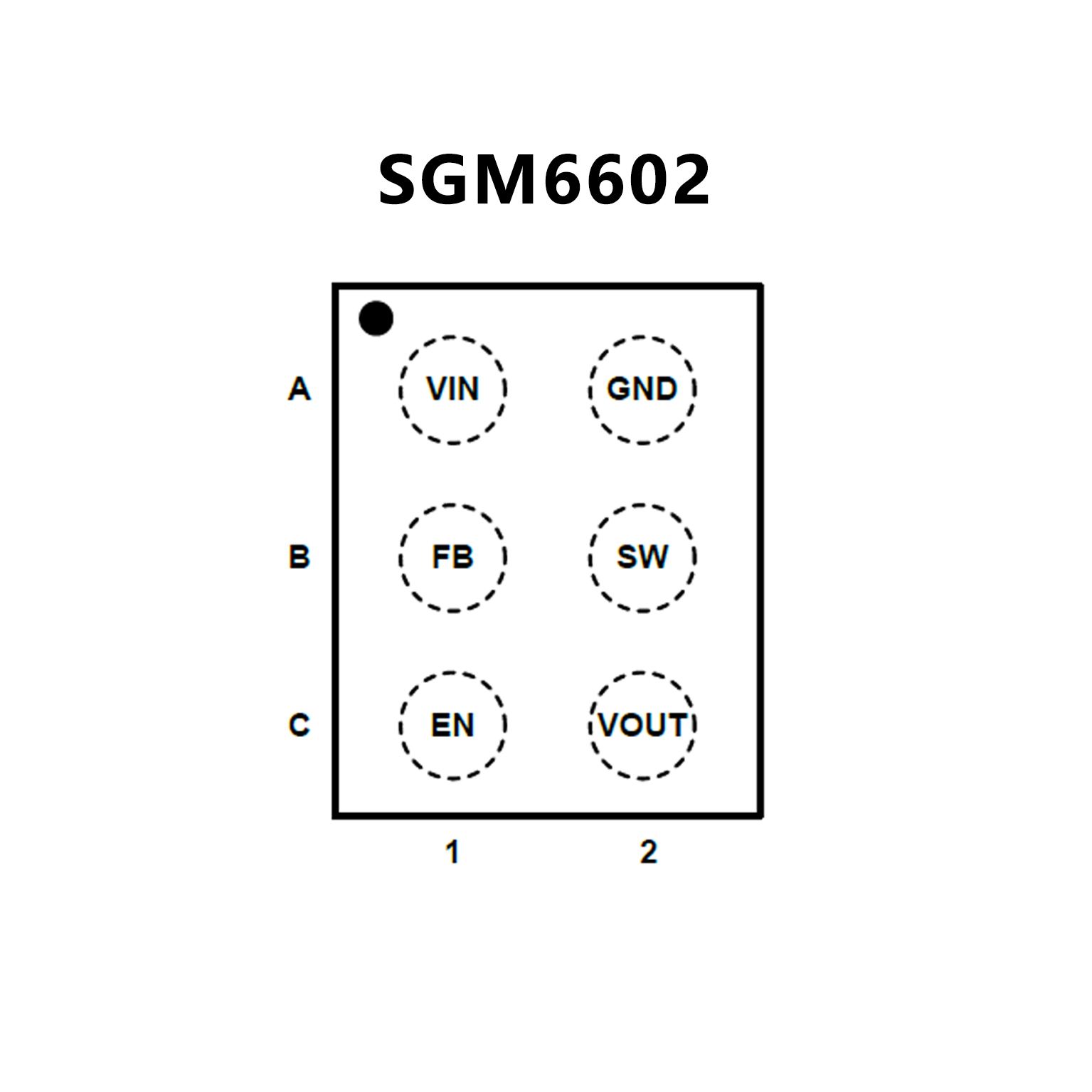

SGM6602.pdf? Input Voltage Range: 1.8V to 5.5V, 1.6V after Start-Up
? Output Voltage Up to 20V
? Integrated Isolation Switch
? 900mA (TYP) Switch Current
? Up to 85% Efficiency at 3.6V Input and 12V Output
? Less than 1μA Ultra-Low Shutdown Current
? Power-Save Operation Mode at Light Load
? Internal 5ms Soft-Start Time
? True Disconnection between
Input and Output during Shutdown
? Output Short-Circuit Protection
? Output Over-Voltage Protection
? Thermal Shutdown Protection
? -40℃ to +85℃ Operating Temperature Range
? Available in Green WLCSP-0.8×1.2-6B and
TDFN-2×2-6L Packages

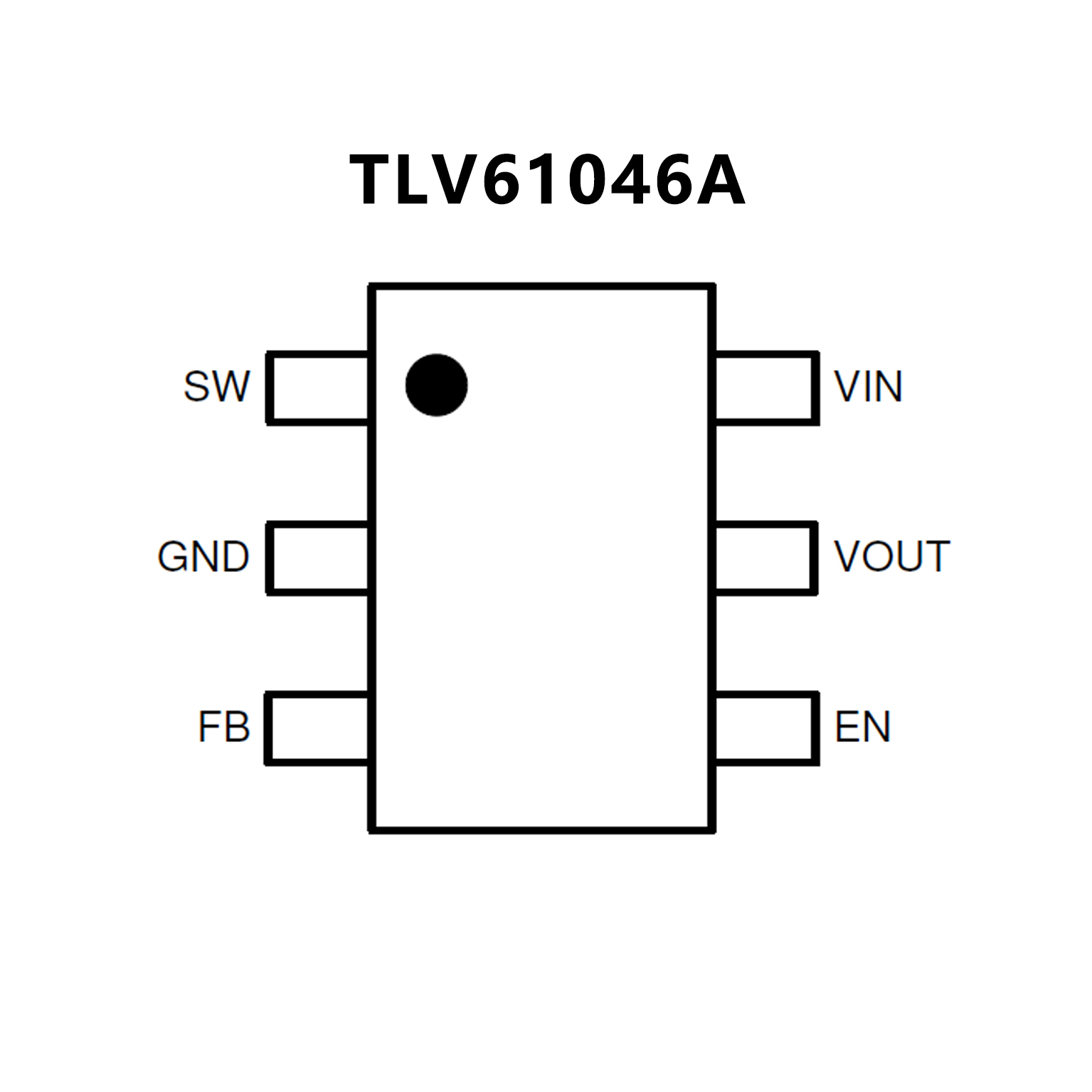

? Input voltage range: 1.8 V to
5.5 V, down to 1.6 V after start-up
? Output voltage up to 28 V
? Integrated power diode and isolation switch
? 980-mA (typical) switch current
? Up to 85% efficiency at 3.6-V input and 12-V output
? ±2.5% output voltage accuracy
? Power save operation mode at light load
? Internal 7-ms soft start time
? True disconnection between
input and output during shutdown
? Output short circuit protection
? Output overvoltage protection
? Thermal shutdown protection
? 3-mm × 3-mm SOT23-6 package
? Create a custom design using the
TLV61046A with the WEBENCH? Power Designer
