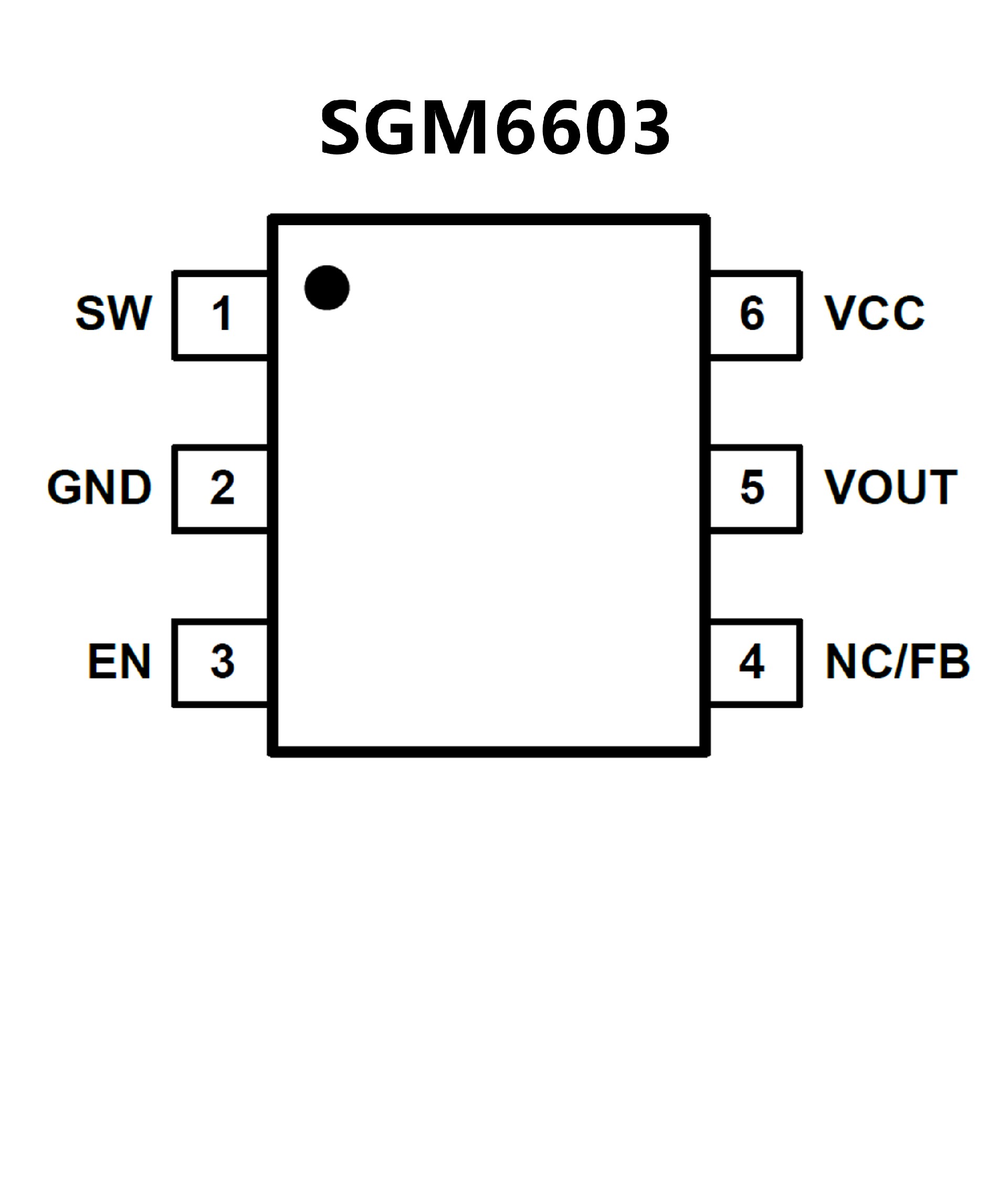

SGM6603.pdf? 90% Efficient Synchronous Boost Converter
? Device Quiescent Current: 30μA (TYP)
? Less than 1μA Shutdown Current
? Input Voltage Range: 0.9V to 5.5V
? 3.3V and 5.0V Fixed Output Voltages
? Adjustable Output Voltage Up to 5.5V
? Output Voltage Clamping: 6V
? Power-Save Mode for Improved Efficiency at Low
Output Power
? Load Disconnect During Shutdown
? Over-Temperature Protection
? Available in Green SOT-23-6 Package
? -40℃ to +85℃ Operating Temperature Range

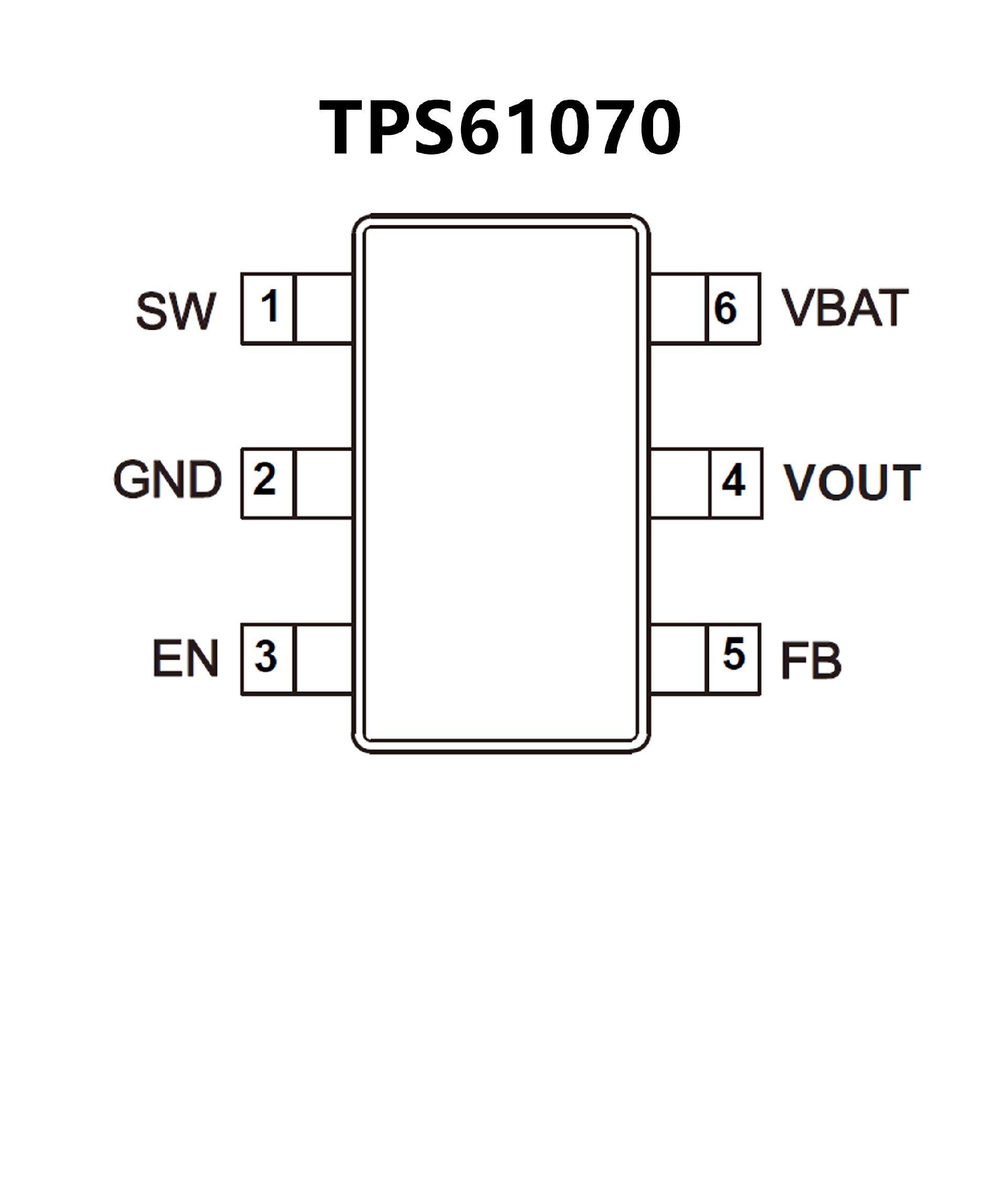

? 90% Efficient Synchronous Boost Converter
75-mA Output Current at 3.3 V From 0.9-V Input
150-mA Output Current at 3.3 V From 1.8-V Input
? Device Quiescent Current: 19 μA (Typ)
? Input Voltage Range: 0.9 V to 5.5 V
? Adjustable Output Voltage Up to 5.5 V
? Power-Save Mode Version Available for
Improved Efficiency at Low Output Power
? Load Disconnect During Shutdown
? Overtemperature Protection
? Small 6-Pin Thin SOT23 Package
