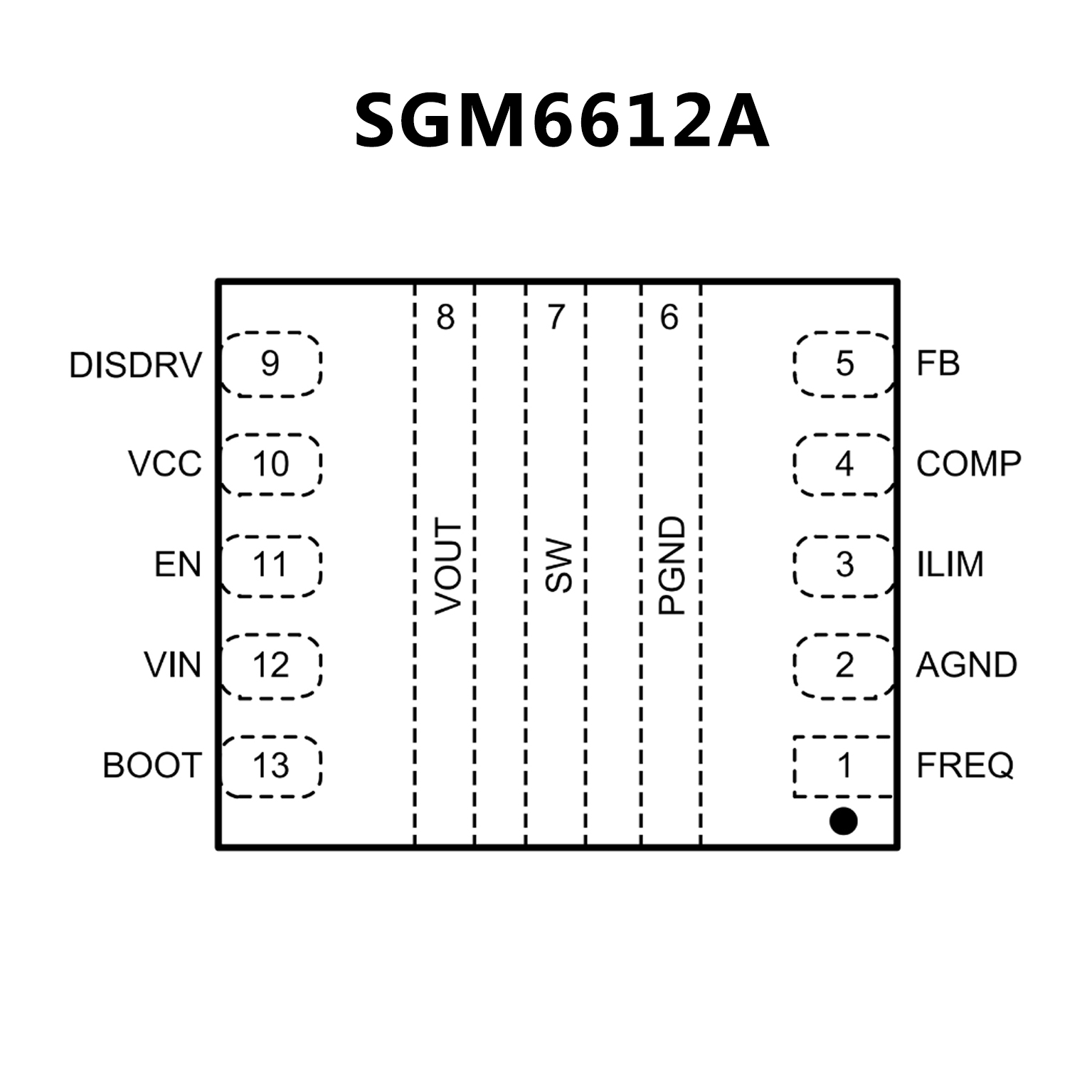

SGM6612A.pdf? Input Voltage Range: 2.7V to 16V
? Output Voltage Range: 4.5V to 20V
? Up to 10A Resistor-Programmable Current Limit
? 15mΩ Low RDSON Internal MOSFETs
? Up to 95% Efficiency at VIN = 7.2V, VOUT = 16V, IOUT = 2A
? Up to 2.2MHz Resistor-Programmable Switching Frequency
? Gate Driver for Load Disconnect
? Hiccup Short Protection
? Over-Voltage Protection
? Auto PFM Mode at Light Load
? Available in a Green TQFN-3×3.5-13L Package

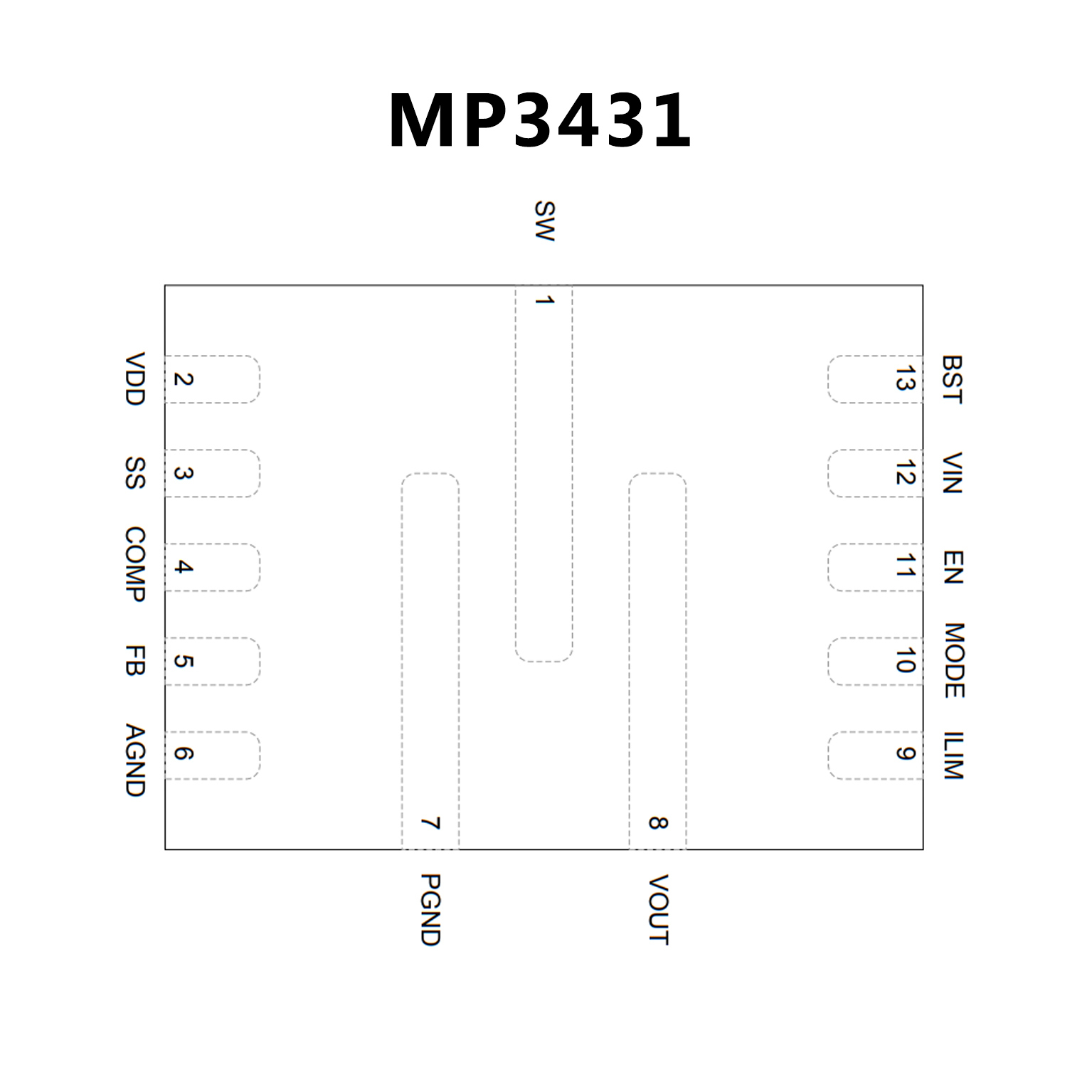

? 2.7V to 13V Start-Up Voltage
? 0.8V to 13V Operation Voltage
? Up to 16V Output Voltage
? Supports 30W Average Power Load and
40W Peak Power Load from 3.3V
? Programmable Input Current Limit
? 21.5A Internal Switch Current Limit
? Integrated 6.5mΩ and 10mΩ Power MOSFET
? >95% Efficiency for 3.6V VIN to 9V/3A
? Selectable PSM, >23kHz USM, and FCCM
in Light-Load Condition
? 600kHz Fixed Switching Frequency
? Adaptive COT for Fast Transient Response
? External Soft Start and Compensation Pins
? Programmable UVLO and Hysteresis
? 150°C Over-Temperature Protection (OTP)
? Available in a QFN-13 (3mmx4mm) Package
