Microprocessor Supervisory Circuit,SGM706B-MXS8G Replace VT39110322.
SGM706B-MXS8G
SGM706B-MXS8G.pdf
SGM706B-MXS8G.pdfFEATURES
? Ultra-Low Supply Current: < 1μA (TYP)
? Precision Supply-Voltage Monitor
4.63V for SGM706B-L
4.38V for SGM706B-M
4.0V for SGM706B-J
3.08V for SGM706B-T
2.93V for SGM706B-S
2.63V for SGM706B-R
? Guaranteed nRESET Valid at VCC = 1V
? Reset Pulse Width: 200ms (TYP)
? Debounced TTL/CMOS-Compatible
? Manual Reset Input
? Watchdog Timer with 1.6s (TYP) Timeout
? 1.25V Threshold Detector for
Power-Fail or Low-Battery Warning
? -40℃ to +125℃ Operating Temperature Range
? Available in Green UTDFN-1.5×1.5-8L,
SOIC-8 and MSOP-8 Packages

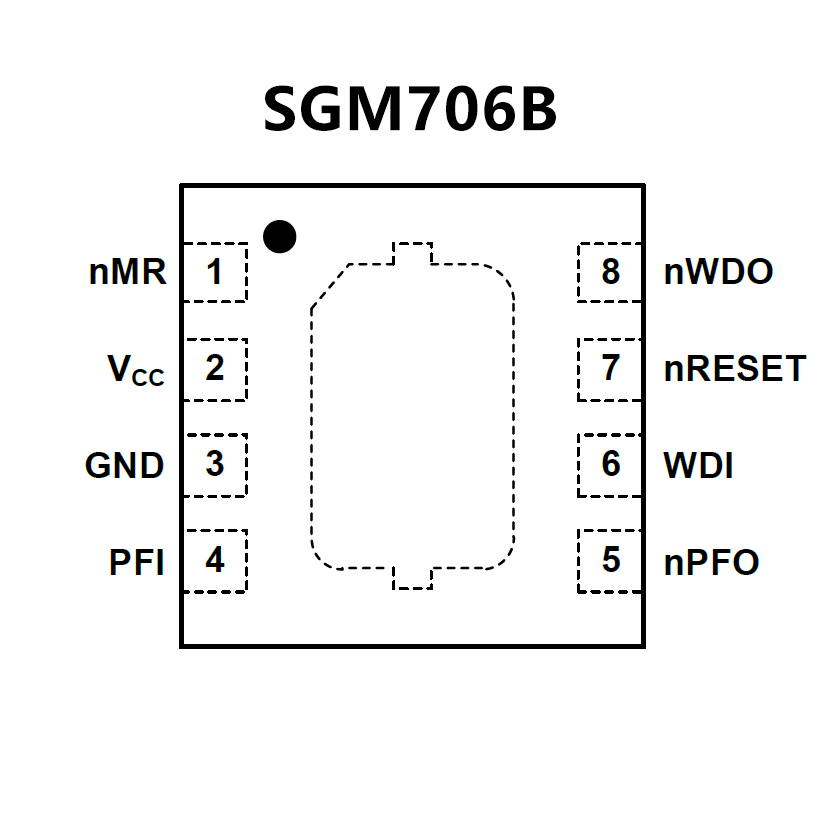

PIN CONFIGUTION
