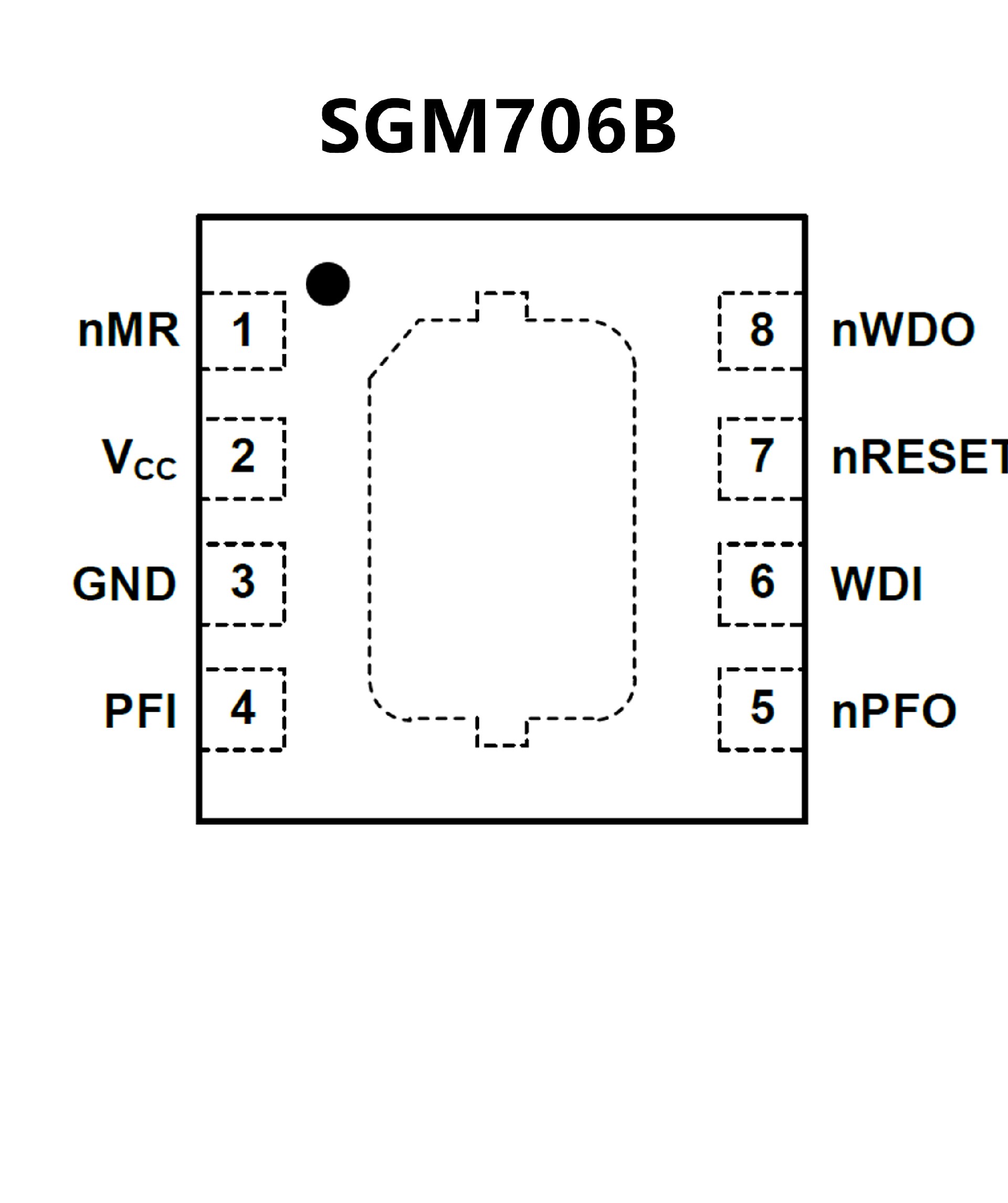

SGM706B-SXS8G.pdf? Ultra-Low Supply Current: < 1μA (TYP)
? Precision Supply-Voltage Monitor
4.63V for SGM706B-L
4.38V for SGM706B-M
4.0V for SGM706B-J
3.08V for SGM706B-T
2.93V for SGM706B-S
2.63V for SGM706B-R
? Guaranteed nRESET Valid at VCC = 1V
? Reset Pulse Width: 200ms (TYP)
? Debounced TTL/CMOS-Compatible
? Manual Reset Input
? Watchdog Timer with 1.6s (TYP) Timeout
? 1.25V Threshold Detector for Power-Fail or
Low-Battery Warning
? -40℃ to +125℃ Operating Temperature Range
? Available in Green UTDFN-1.5×1.5-8L, SOIC-8 and
MSOP-8 Packages

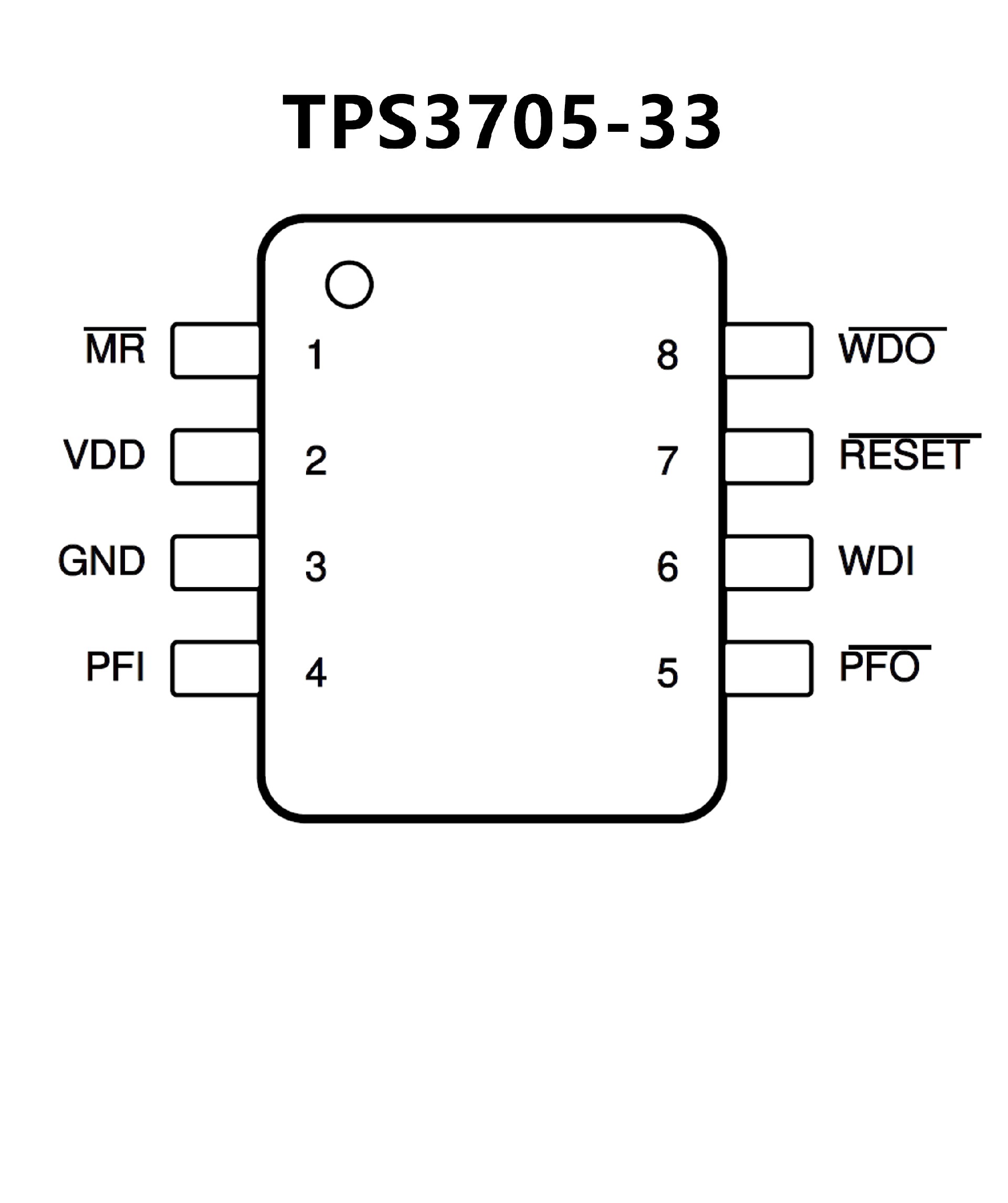

? Power-on reset generator with fixed delay
time of200 ms (no external capacitor needed)
? Precision supply voltage monitor: 2.5 V, 3 V,
3.3 V, and 5 V
? Pin-for-pin compatible with the MAX705 through
MAX708 Series
? Integrated watchdog time (TPS3705-xx Only)
? Voltage monitor for power-fail or low-battery
warning
? Maximum supply current of 50 μA
? 8-Pin MSOP and 8-Pin SOIC packages
? Temperature range: –40°C to 85°C
(–40°C to 125°C for TPS3705-33)
