0.4 to 2.7 GHz SP10T LTE Transmit/Receive Switch with MIPI RFFE Interface,Replace SKY13473.
SGM72110
SGM72110.pdf
SGM72110.pdfFEATURES
? Supply Voltage Range: 2.4V to 4.8V
? Advanced Silicon-On-Insulator (SOI) Process
? Frequency Range: 0.1GHz to 3.0GHz
? Low Insertion Loss: 0.6dB (TYP) at 2.7GHz
? MIPI RFFE Interface Compatible
? No External DC Blocking Capacitors Required
? Available in a Green UTQFN-2.4×2.4-20L Package

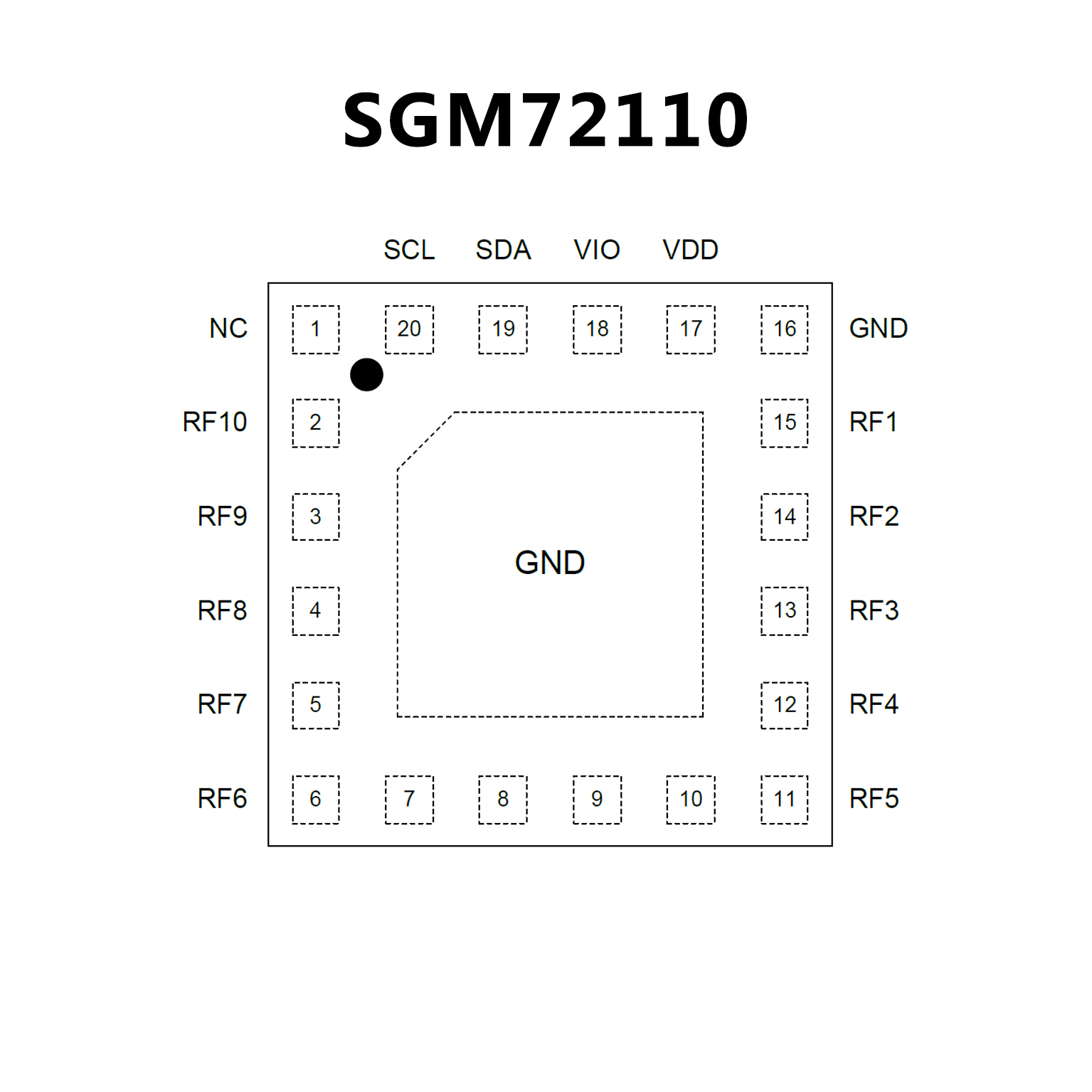

PIN CONFIGUTION
優勢替代
FEATURES
? Broadband frequency range: 0.4 to 2.7 GHz
? Low insertion loss
? High isolation and linearity
? Integrated, programmable MIPI interface
? Default USID = 1011
? Ten linear TRX ports with isolation greater than 20 dB
@ 2.7 GHz
? Small QFN (20-pin, 2.4 x 2.4 x 0.75 mm) package
(MSL1, 260 °C per JEDEC J-STD–020)

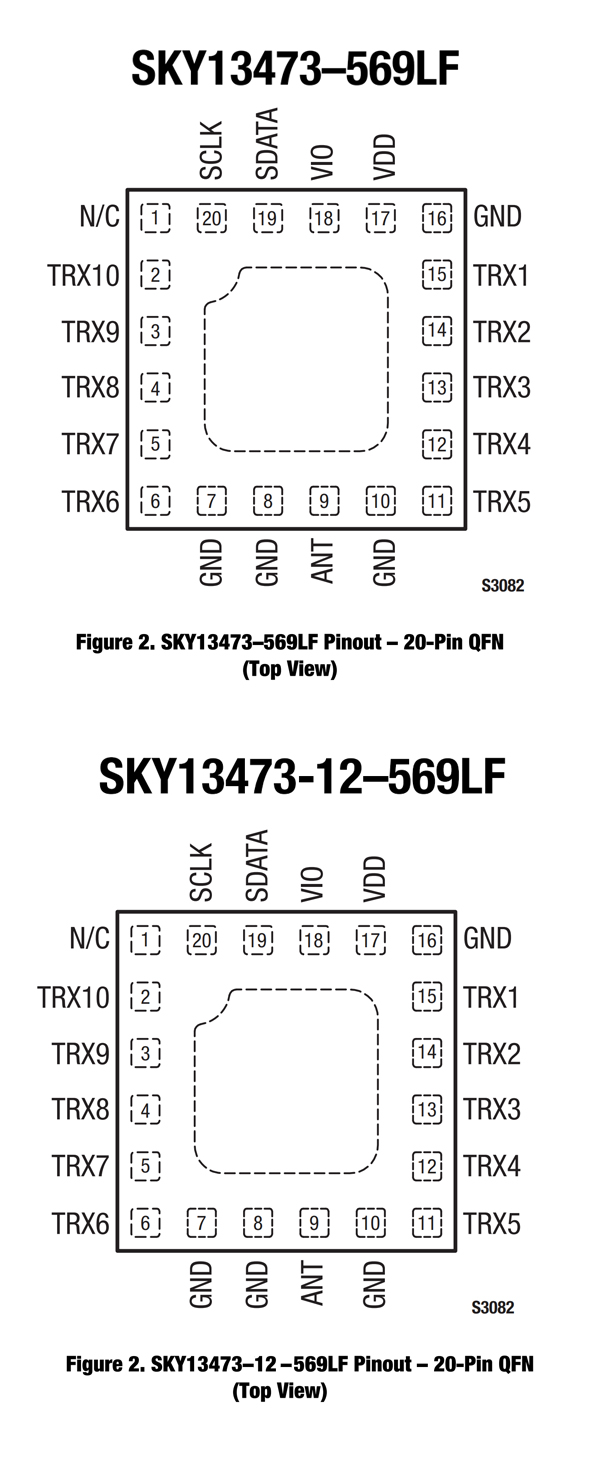

PIN CONFIGUTION
