SGM721XN5.pdf? Rail-to-Rail Input and Output
? Input Offset Voltage: 4mV (MAX)
? High Gain-Bandwidth Product: 11MHz
? High Slew Rate: 8.5V/μs
? Settling Time to 0.1% with 2V Step: 0.21μs
? Overload Recovery Time: 0.6μs
? Low Noise: 8.5nV/√Hz at 10kHz
? Supply Voltage Range: 2.1V to 5.5V
? Input Voltage Range: -0.1V to 5.6V with VS = 5.5V
? Low Power:
SGM721/3: 1.2mA (TYP)
SGM722/4: 1.1mA/Amplifier (TYP)
SGM723 Less than 1μA when Disabled
? -40℃ to +125℃ Operating Temperature Range
? Small Packaging:

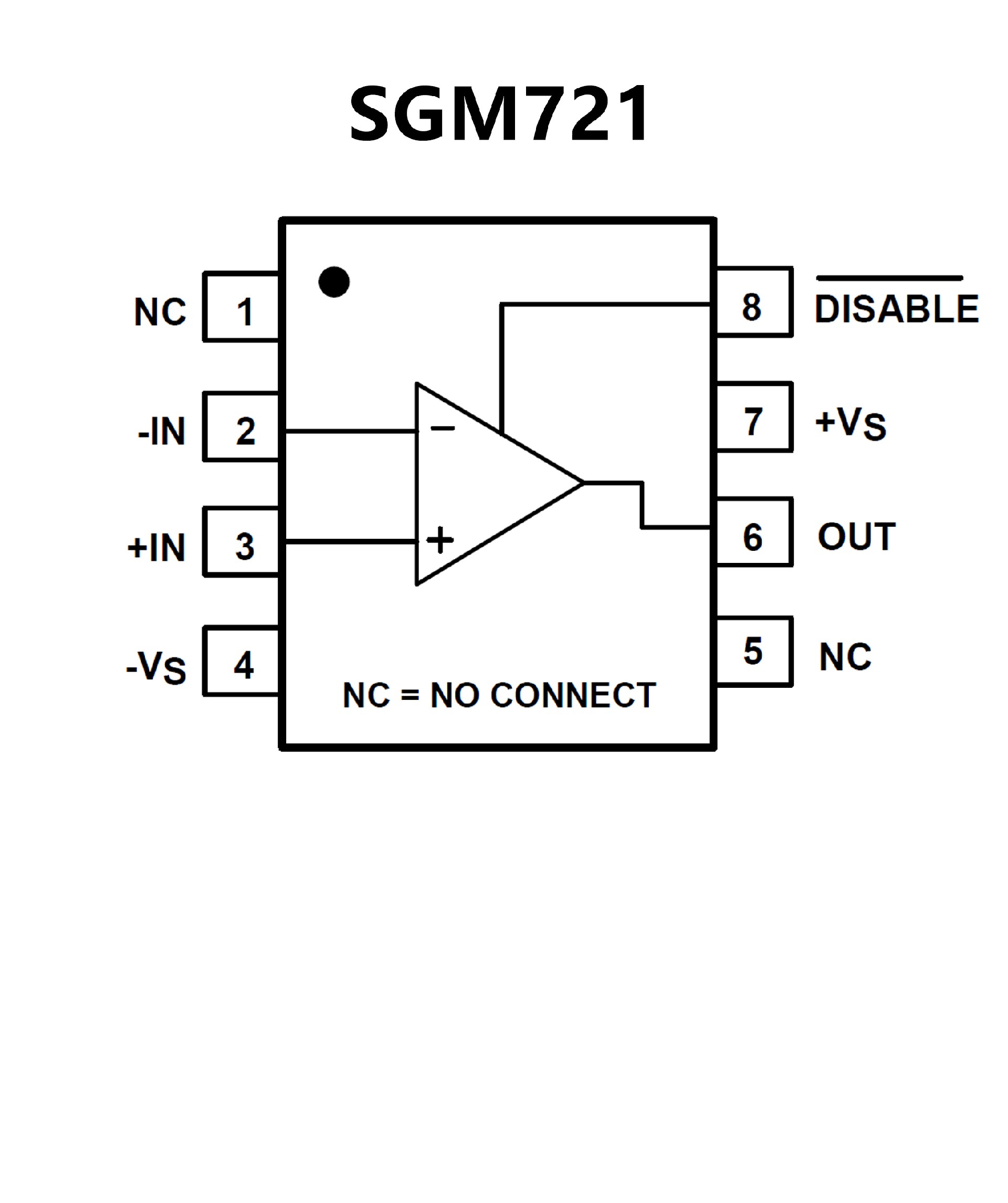

SGM721 Available in Green SC70-5, SOT-23-5 and
SOIC-8 Packages
SGM722 Available in Green MSOP-8, SOIC-8 and
TSSOP-8 Packages
SGM723 Available in Green SOT-23-6 and SOIC-8
Packages
SGM724 Available in Green TSSOP-14 and
SOIC-14 Packages

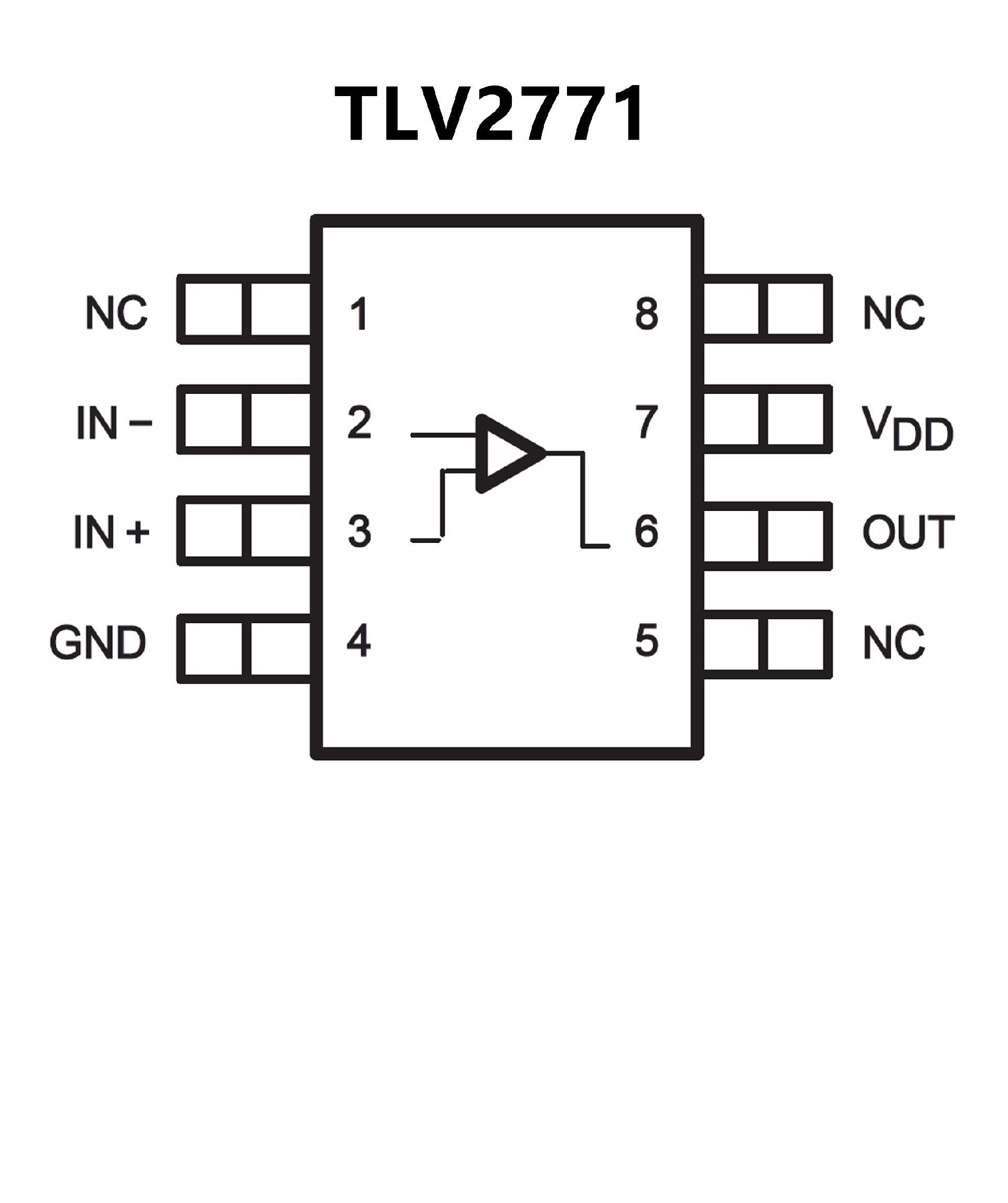

? High Slew Rate . . . 10.5 V/μs Typ
? High-Gain Bandwidth . . . 5.1 MHz Typ
? Supply Voltage Range 2.5 V to 5.5 V
? Rail-to-Rail Output
? 360 μV Input Offset Voltage
? Low Distortion Driving 600-Ω
0.005% THD+N
? 1 mA Supply Current (Per Channel)
? 17 nV/√Hz Input Noise Voltage
? 2 pA Input Bias Current
? Characterized From TA = ?55°C to 125°C
? Available in MSOP and SOT-23 Packages
? Micropower Shutdown Mode . . . IDD < 1 μA
? Available in Q-Temp Automotive
High Reliability Automotive Applications
Configuration Control / Print Support
Qualification to Automotive Standards
