Low Noise Operational Amplifier, SGM722 Replace LMV722.
SGM722
SGM722.pdf
SGM722.pdfFEATURES
? Rail-to-Rail Input and Output
? Input Offset Voltage: 4mV (MAX)
? High Gain-Bandwidth Product: 11MHz
? High Slew Rate: 8.5V/μs
? Settling Time to 0.1% with 2V Step: 0.21μs
? Overload Recovery Time: 0.6μs
? Low Noise: 8.5nV/√Hz at 10kHz
? Supply Voltage Range: 2.1V to 5.5V
? Input Voltage Range: -0.1V to 5.6V with VS = 5.5V
? -40℃ to +125℃ Operating Temperature Range
? Small Packaging: MSOP-8, SOIC-8 and TSSOP-8 Packages

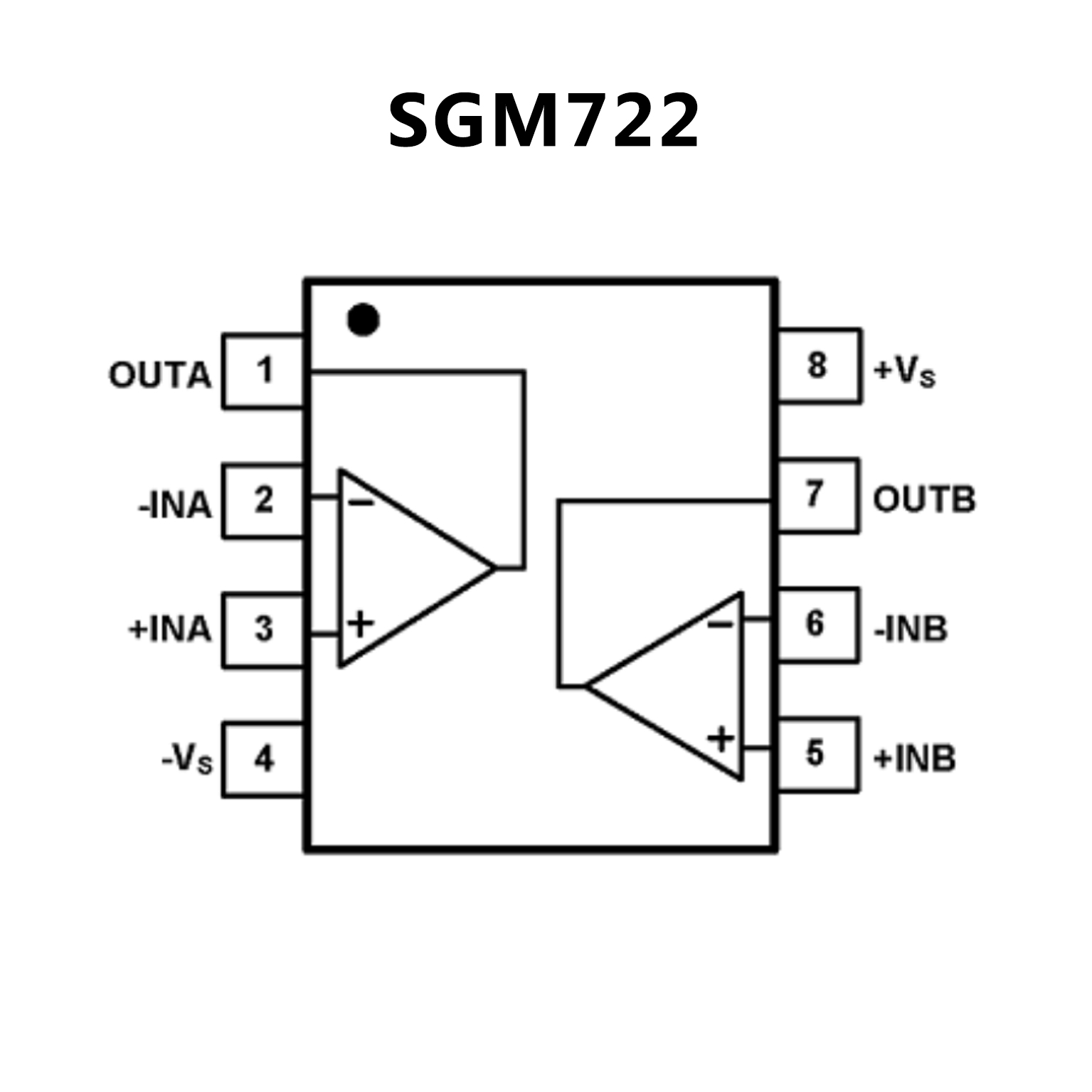

PIN CONFIGUTION
優(yōu)勢(shì)替代
FEATURES
? Power-Supply Voltage Range: 2.2V to 5.5V
? Low Supply Current: 930 mA/Amplifier at 2.2 V
? High Unity-Gain Bandwidth: 10 MHz
? Rail-to-Rail Output Swing
– 600-Ω Load: 120 mV From Either Rail at 2.2 V
– 2-kΩ Load: 50 mV From Either Rail at 2.2 V
? Input Common-Mode Voltage Range Includes Ground
? Input Voltage Noise: 9 nV/√Hz at f = 1kHz

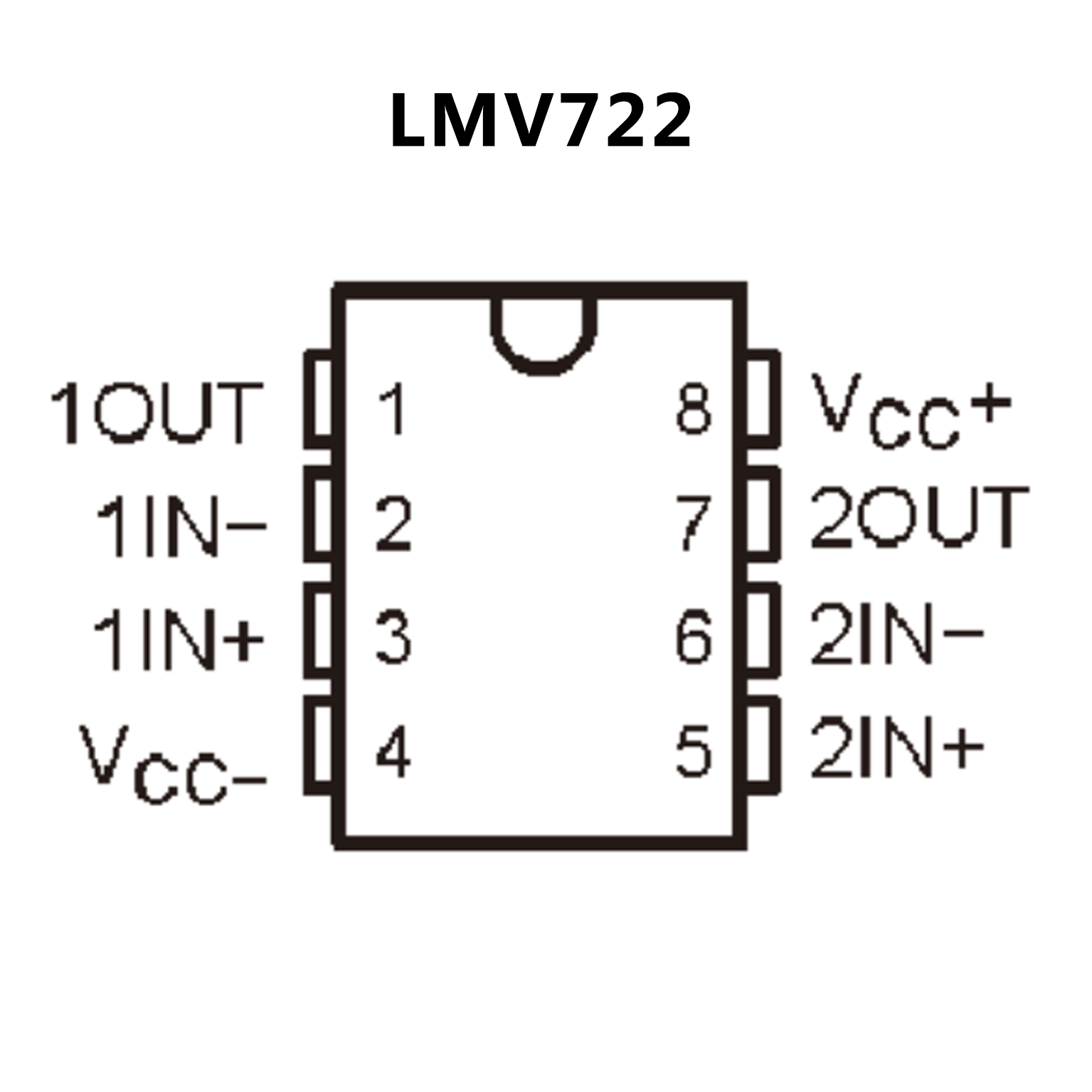

PIN CONFIGUTION
