11MHz, Rail-to-Rail I/O CMOS Operational Amplifiers,SGM722 Replace TSU992.
SGM722
SGM722.pdf
SGM722.pdfFEATURES
? Rail-to-Rail Input and Output
? Input Offset Voltage: 4mV (MAX)
? High Gain-Bandwidth Product: 11MHz
? High Slew Rate: 8.5V/μs
? Settling Time to 0.1% with 2V Step: 0.21μs
? Overload Recovery Time: 0.6μs
? Low Noise: 8.5nV/√Hz at 10kHz
? Supply Voltage Range: 2.1V to 5.5V
? Input Voltage Range: -0.1V to 5.6V with VS = 5.5V
? Low Power:
SGM722: 1.1mA/Amplifier (TYP)
? -40℃ to +125℃ Operating Temperature Range
? Small Packaging:
SGM722 Available in Green MSOP-8, SOIC-8 and
TSSOP-8 Packages

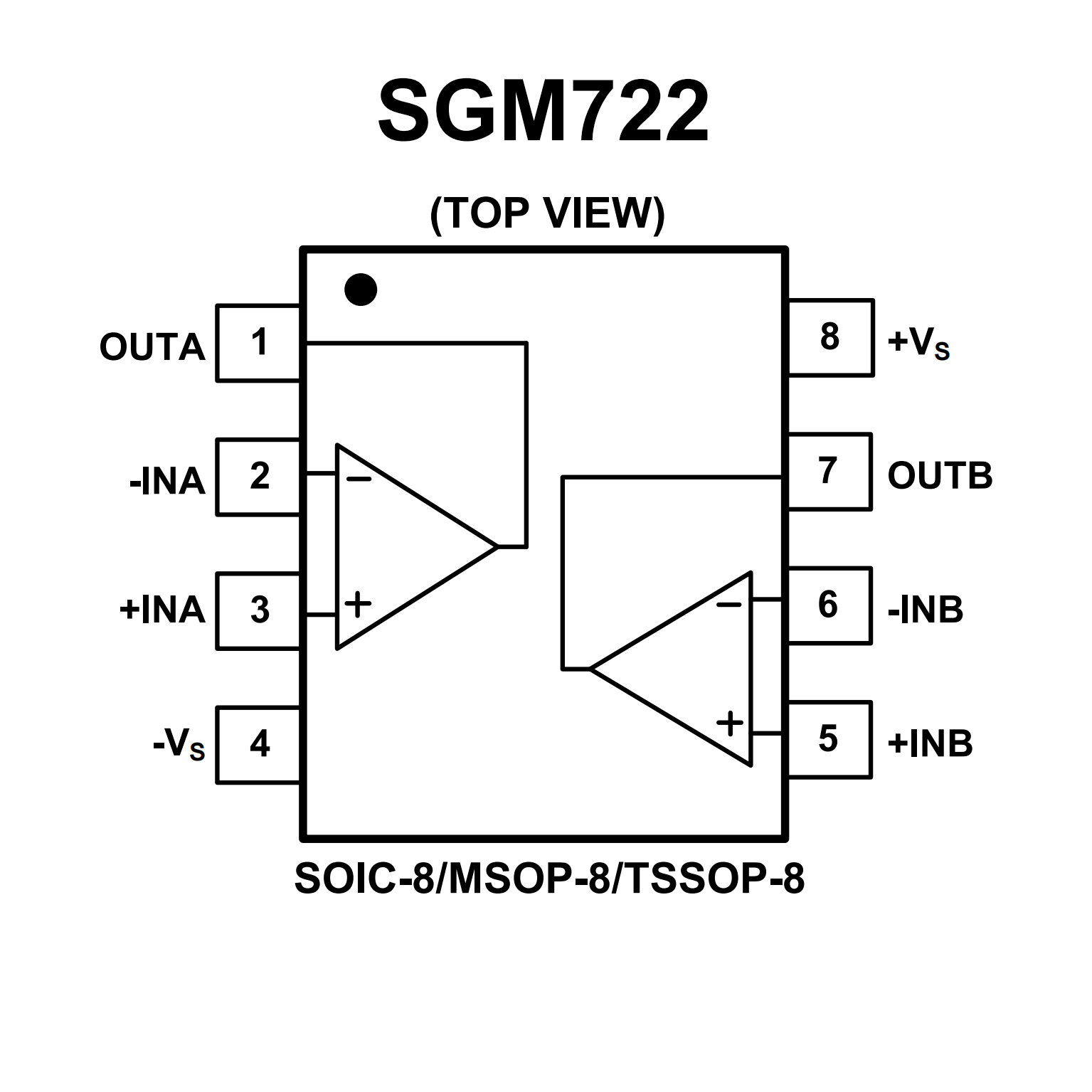

PIN CONFIGUTION
