SGM7220.pdf? Supply Voltage Range: 2.7V to 5V
? Supports USB Type-C Specification 1.1
? Enable Control: Active Low (EN Pin)
? Backward Compatible with USB Type-C
Specification 1.0
? Supports up to 3A of Current Advertisement and
Detection
? Mode Configuration
Host Only - DFP (Source)
Device Only - UFP (Sink)
Dual Role Port - DRP
Try.SNK
? Channel Configuration (CC)
Attachment of USB Port Detection
Cable Orientation Detection
Role Detection
Type-C Current Mode (Default, Medium or High)
? VBUS Detection
? I2C or GPIO Control
? Role Configuration Control through I2C
? Low Current Consumption
? -40℃ to +125℃ Operating Temperature Range
? Available in Green UTQFN-1.6×1.6-12L Package
? USB Type-C Cable and Connector
Specification Release 1.2 compatible
? Global power saving and active mode
? Pin or I2C controllable
? Support auto CC ports configuration
? Support SRC/SNK/DRP power mode
? Support DRP with Try.SNK or Try.SRC
? Support different current model controls and
identifications (Default, 1.5A and 3.0A)
? Accurate internal CC termination resistance
and current source with high precision
? High voltage EOS protection and DC 25V
tolerance on CC1, CC2 and VBUSD pins
? Wide single power supply range: 2.7 ~ 5.5V

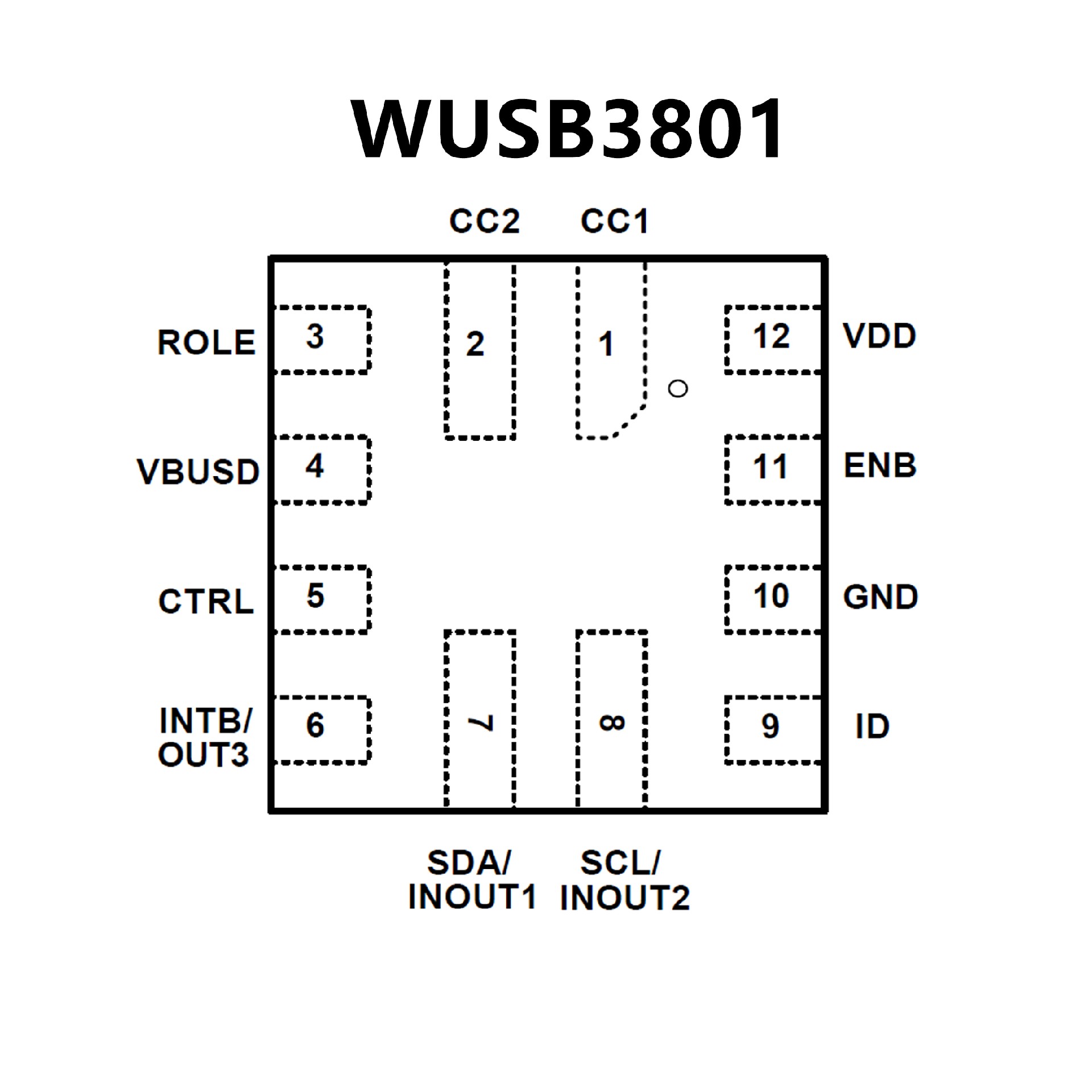

? QFN1616-12L packaging available
(1.6x1.6x0.35mm)
