SP4T Antenna Tuning Switch,SGM72204A Replace MXD8545A.
SGM72204A
SGM72204A.pdf
SGM72204A.pdfFEATURES
? Frequency Range: 0.1GHz to 2.7GHz
? Low On-Resistance: 1.0Ω (TYP)
? Low Turn-Off Capacitance: 130fF (TYP)
? Peak-Voltage Handling: 45V (TYP)
? RF Input Power: 43dBm
? Supply Range: 2.4V to 4.5V
? No External DC Blocking Capacitors Required
? Available in a Green UTQFN-1.1×1.5-10L Package

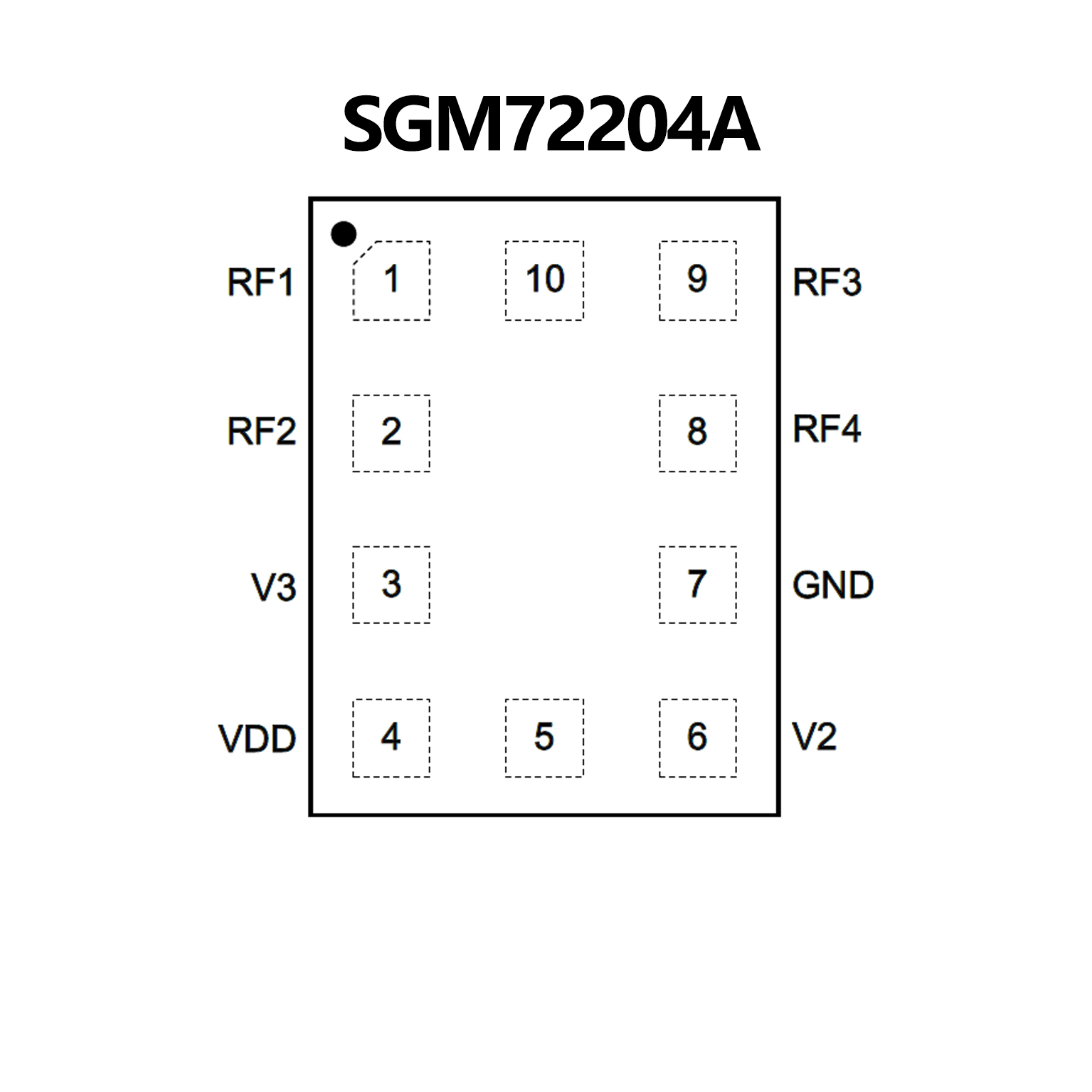

PIN CONFIGUTION
優(yōu)勢(shì)替代
FEATURES
? GSM/WCDMA/LTE band and mode switching
? Antenna tuning switch
? Broadband frequency range: 0.1 to 3.0 GHz
? Low insertion 0.50dB @ 2.7 GHz
? High P0.1dB of 43.3dBm
? Positive low voltage control: VC = 1.0 to 3.0 V,VDD = 2.5 to 3.3 V,
Small QFN (10-pin,1.1mm x 1.5mm x 0.38mm) package，MSL1

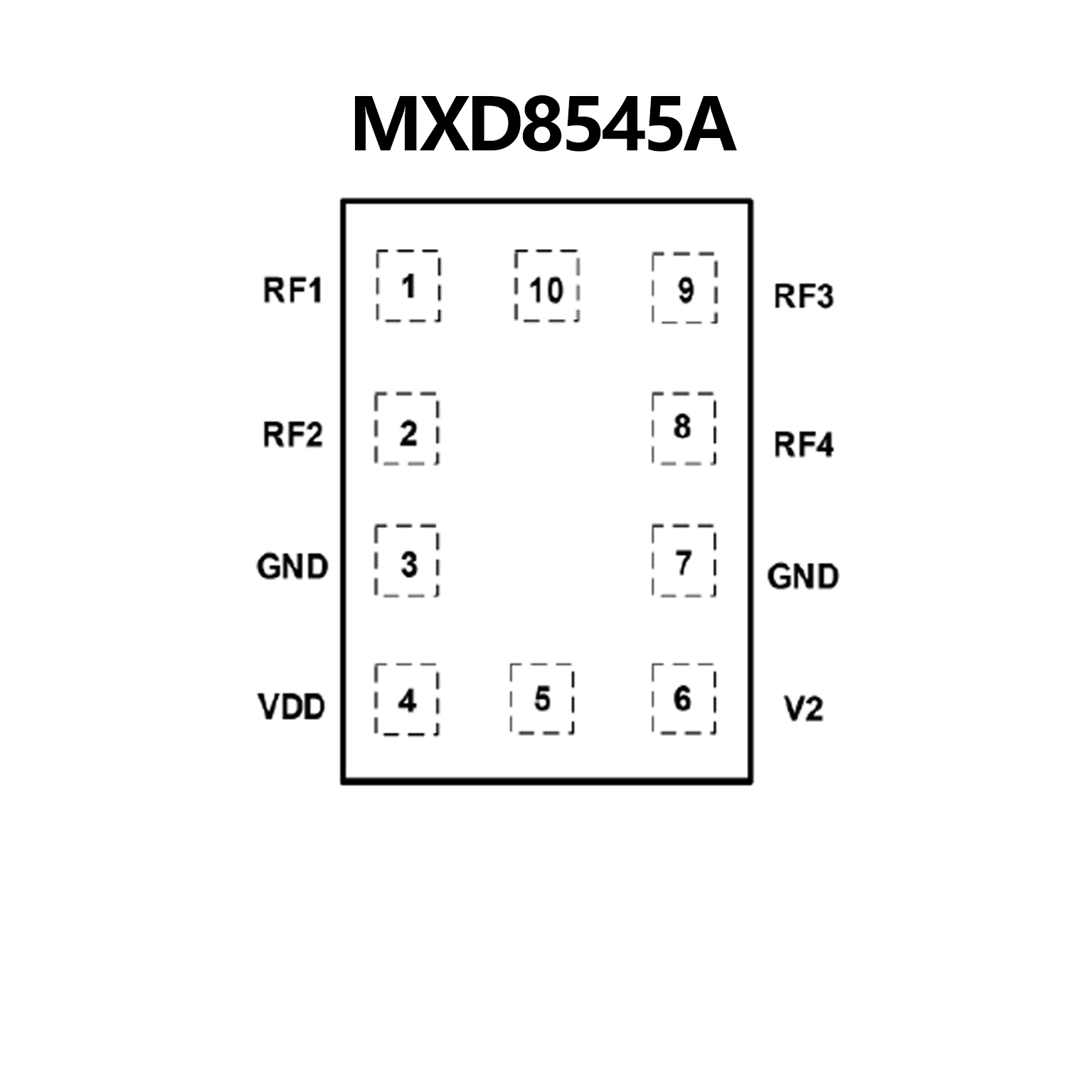

Functional Block Diagram and Pin Function
Figure 1.
PIN CONFIGUTION
