700 - 2700 MHz SPDT Switch,SGM72204A Replace RF1694.
SGM72204A
SGM72204A.pdf
SGM72204A.pdfFEATURES
? Frequency Range: 0.1GHz to 2.7GHz
? Low On-Resistance: 1.0Ω (TYP)
? Low Turn-Off Capacitance: 130fF (TYP)
? Peak-Voltage Handling: 45V (TYP)
? RF Input Power: 43dBm
? Supply Range: 2.4V to 4.5V
? No External DC Blocking Capacitors Required
? Available in a Green UTQFN-1.1×1.5-10L Package

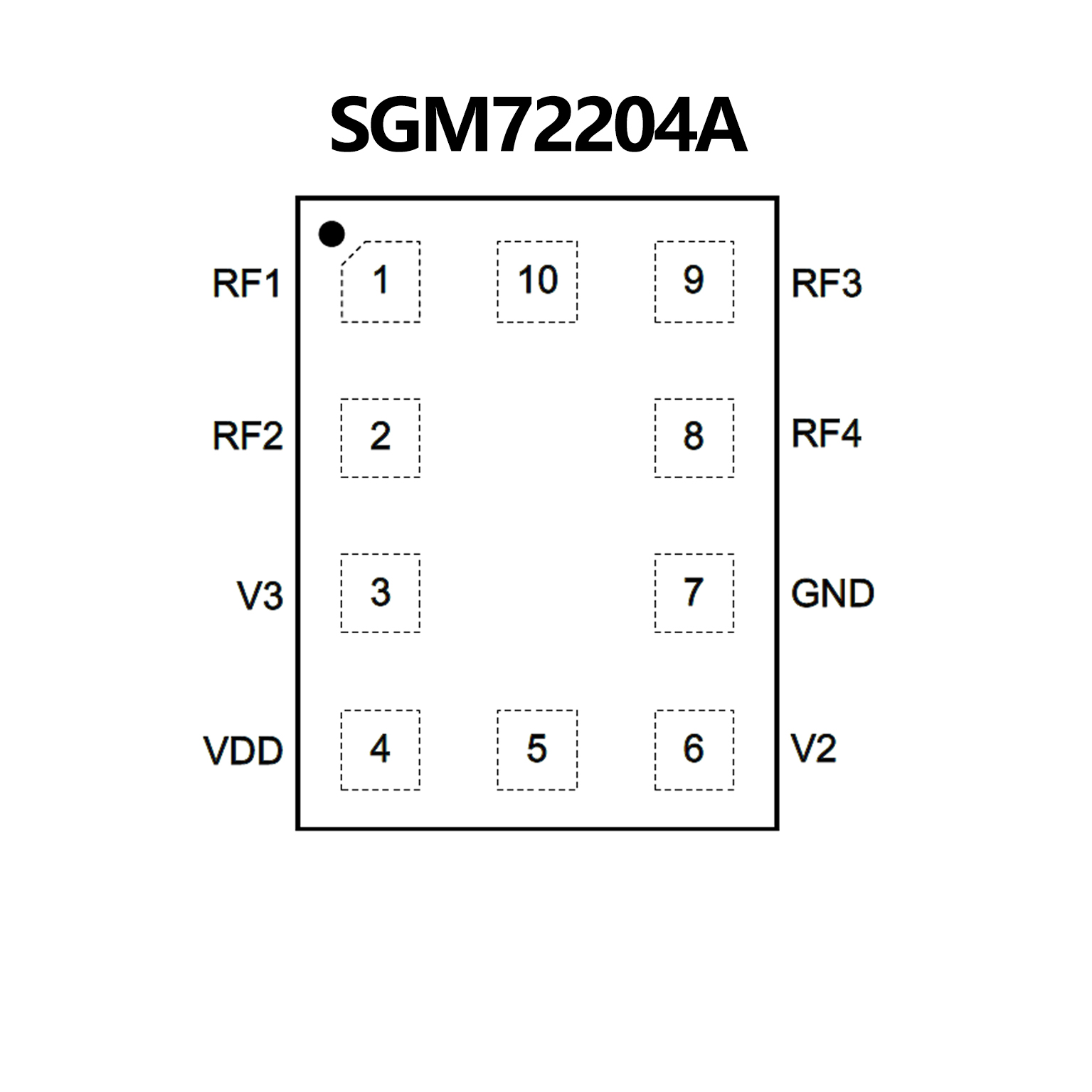

PIN CONFIGUTION
優勢替代
FEATURES
? Ultra-Low On-resistance, 0.6Ω
? Very Linear Performance, 75dBm IP3
? Off Ports, ‘Open Type’
? Two pin GPIO control Interface for
standard SP4T operation
? Very Small 1.1mm x 1.5mm,
Laminate Package
? Very low profile, 0.44mm
? 2.4V to 5.8V Supply Range
(VBATT Connect)
PIN CONFIGUTION
