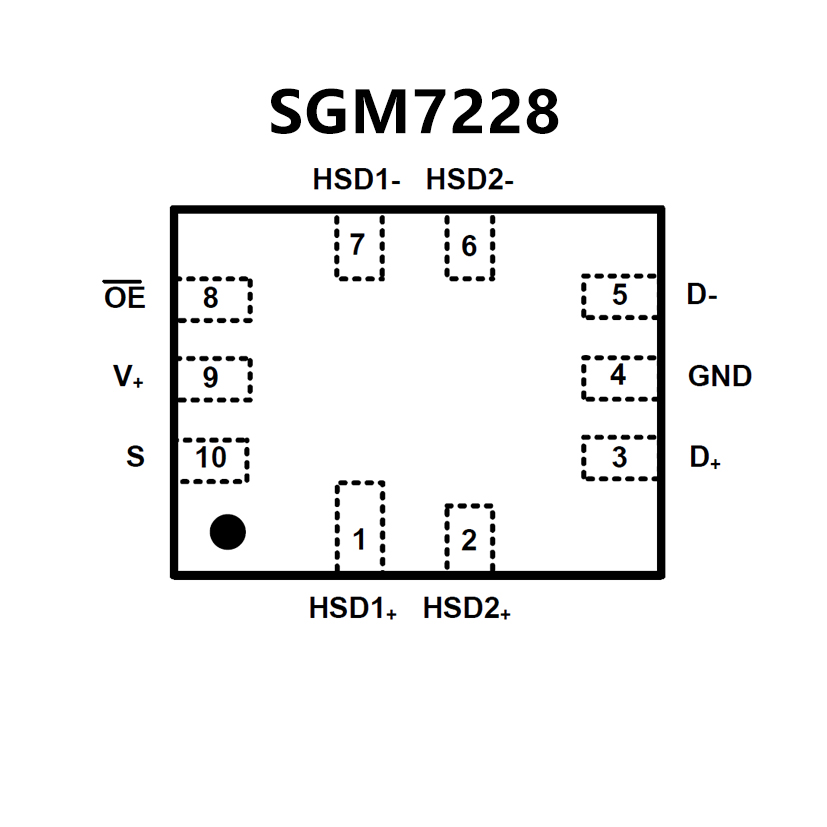

SGM7228YWQ10G.pdf? Low Cost
? RON is Typically 6Ω at 3.0V
? Low Bit-to-Bit Skew: 50ps (TYP)
? Voltage Operation: 1.8V to 4.3V
? Fast Switching Times:
tON 10ns
tOFF 22ns
? Low Crosstalk: -40dB at 250MHz
? Power-Off Protection when V＋ = 0V,
D+/D- Pins can Tolerate up to 5.25V
? High Off-Isolation: -35dB at 250MHz
? Rail-to-Rail Input and Output Operation
? Break-Before-Make Switching
? Extended Industrial Temperature Range:
-40℃ to +85℃
? Small Package:
TQFN-1.8×1.4-10L

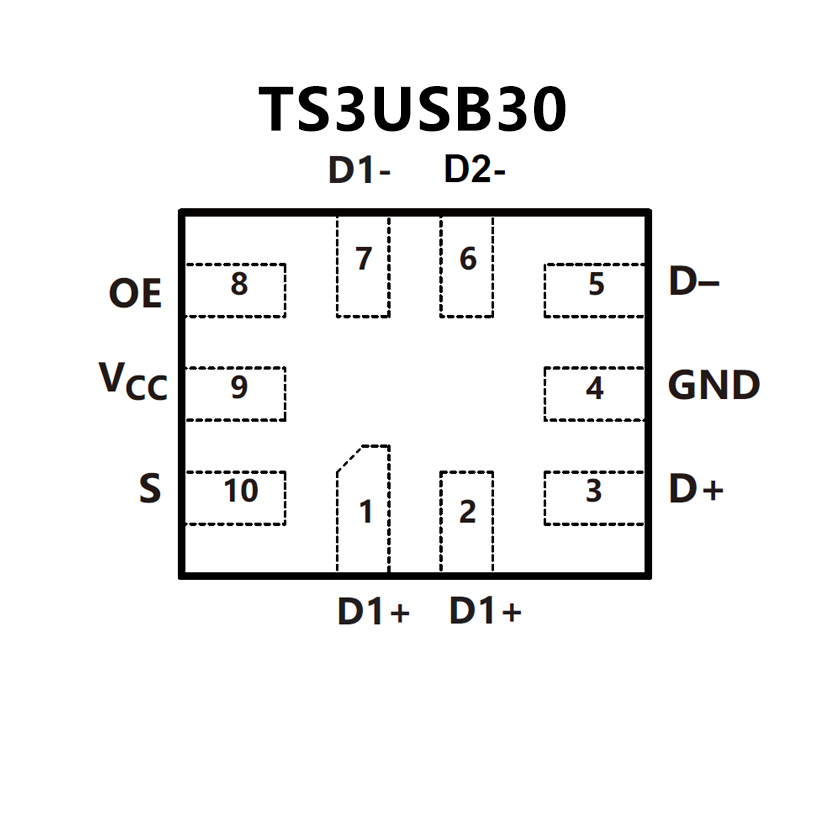

? VCC Operation at 3 V and 4.3 V
? 1.8-V Compatible Control-Pin Inputs
? IOFF Supports Partial Power-Down-Mode Operation
? Ron = 10 ? Maximum
ΔRon <0.35 ? Typical
? Cio(ON) = 7 pF Typical
? Low Power Consumption (1 μA Maximum)
? ESD Performance Tested Per JESD 22
6000-V Human Body Model (HBM)
(A114-B, Class II)
1000-V Charged-Device Model (C101)
250-V Machine Model (A115-A)
? –3-dB Bandwidth = 955 MHz Typical
? Packaged in 10-pin UQFN (1.4 mm × 1.8 mm)
