High-Speed USB 2.0 (480Mbps) DPDT Analog Switch,SGM7229YUWQ10GTR Replace DZ320.
SGM7229YUWQ10G
SGM7229YUWQ10G.pdf
SGM7229YUWQ10G.pdfFEATURES
? Supply Voltage Range: 1.8V to 5.5V
? On-Resistance: 6Ω (TYP) at 3V
? Fast Switching Times at 3.3V:tON = 30nstOFF = 18ns
? Crosstalk: -20dB at 250MHz
? Off-Isolation: -26dB at 250MHz
? Rail-to-Rail Input and Output Operation
? Break-Before-Make Switching
? -40℃ to +85℃ Operating Temperature Range
? Available in Green UTQFN-1.8×1.4-10L andMSOP-10 Packages

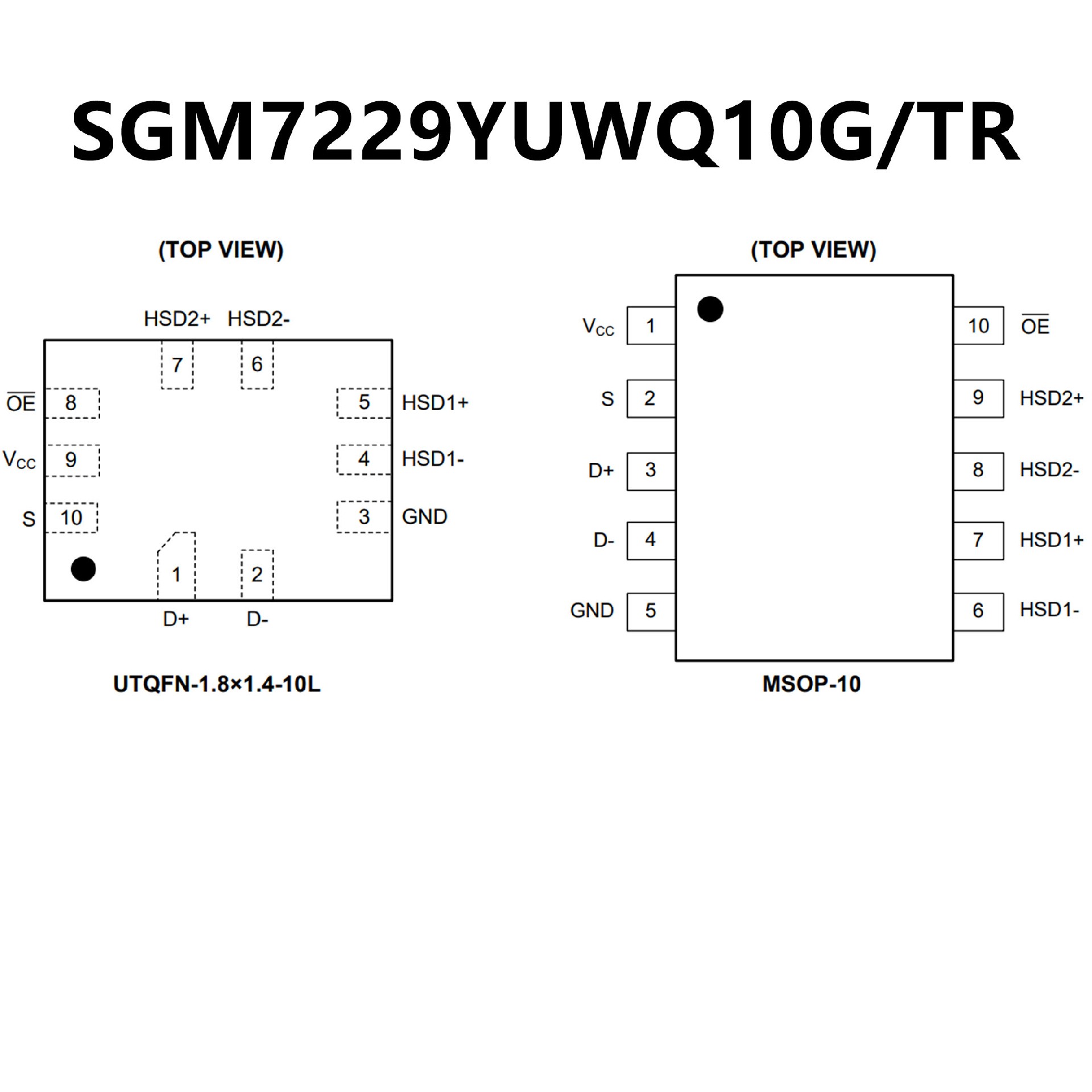

PIN CONFIGUTION
優勢替代
