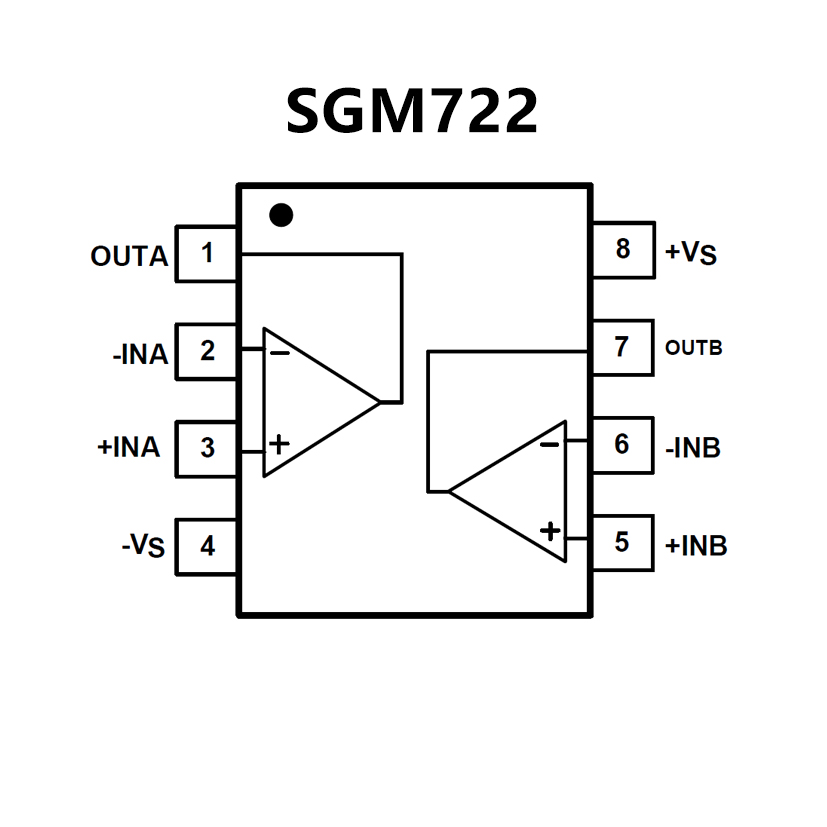

SGM722XMS.pdf? Rail-to-Rail Input and Output
? Input Offset Voltage: 4mV (MAX)
? High Gain-Bandwidth Product: 11MHz
? High Slew Rate: 8.5V/μs
? Settling Time to 0.1% with 2V Step: 0.21μs
? Overload Recovery Time: 0.6μs
? Low Noise: 8.5nV/√Hz at 10kHz
? Supply Voltage Range: 2.1V to 5.5V
? Input Voltage Range: -0.1V to 5.6V with VS = 5.5V
? Low Power:
SGM721/3: 1.2mA (TYP)
SGM722/4: 1.1mA/Amplifier (TYP)
SGM723 Less than 1μA when Disabled
? -40℃ to +125℃ Operating Temperature Range
? Small Packaging:
SGM721 Available in Green SC70-5, SOT-23-5 and
SOIC-8 Packages
SGM722 Available in Green MSOP-8, SOIC-8 and
TSSOP-8 Packages
SGM723 Available in Green SOT-23-6 and SOIC-8
Packages
SGM724 Available in Green TSSOP-14 and
SOIC-14 Packages

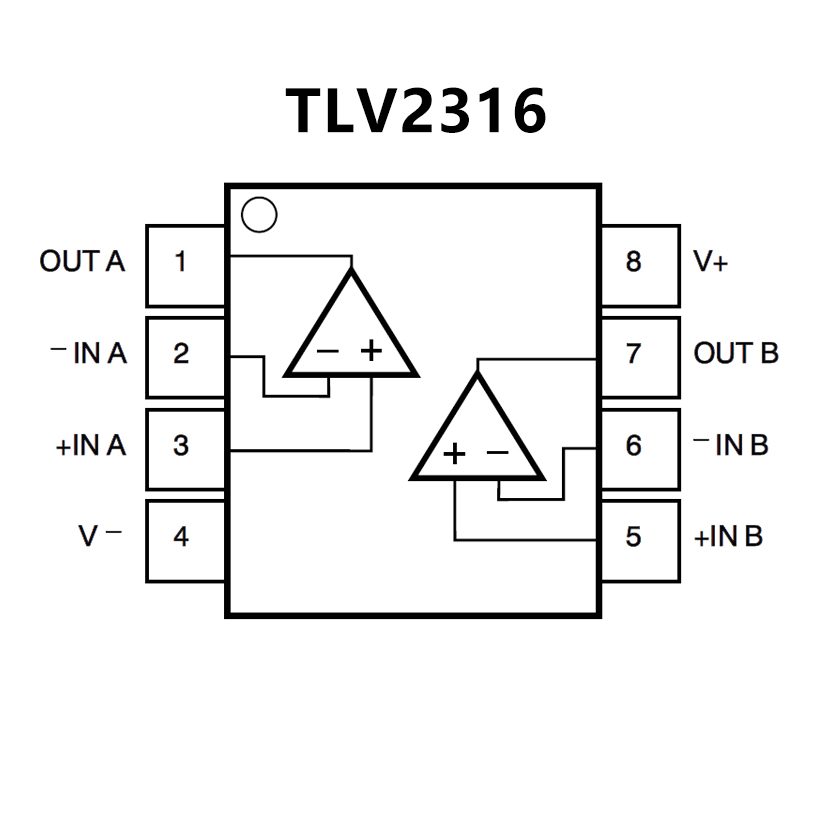

? Unity-Gain Bandwidth: 10 MHz
? Low IQ: 400 μA/ch
Excellent Power-to-Bandwidth Ratio
Stable IQ Over Temperature and Supply
Range
? Wide Supply Range: 1.8 V to 5.5 V
? Low Noise: 12 nV/√Hz at 1 kHz
? Low Input Bias Current: ±10 pA
? Offset Voltage: ±0.75 mV
? Unity-Gain Stable
? Internal RFI/EMI Filter
? Extended Temperature Range: –40°C to +125°C
