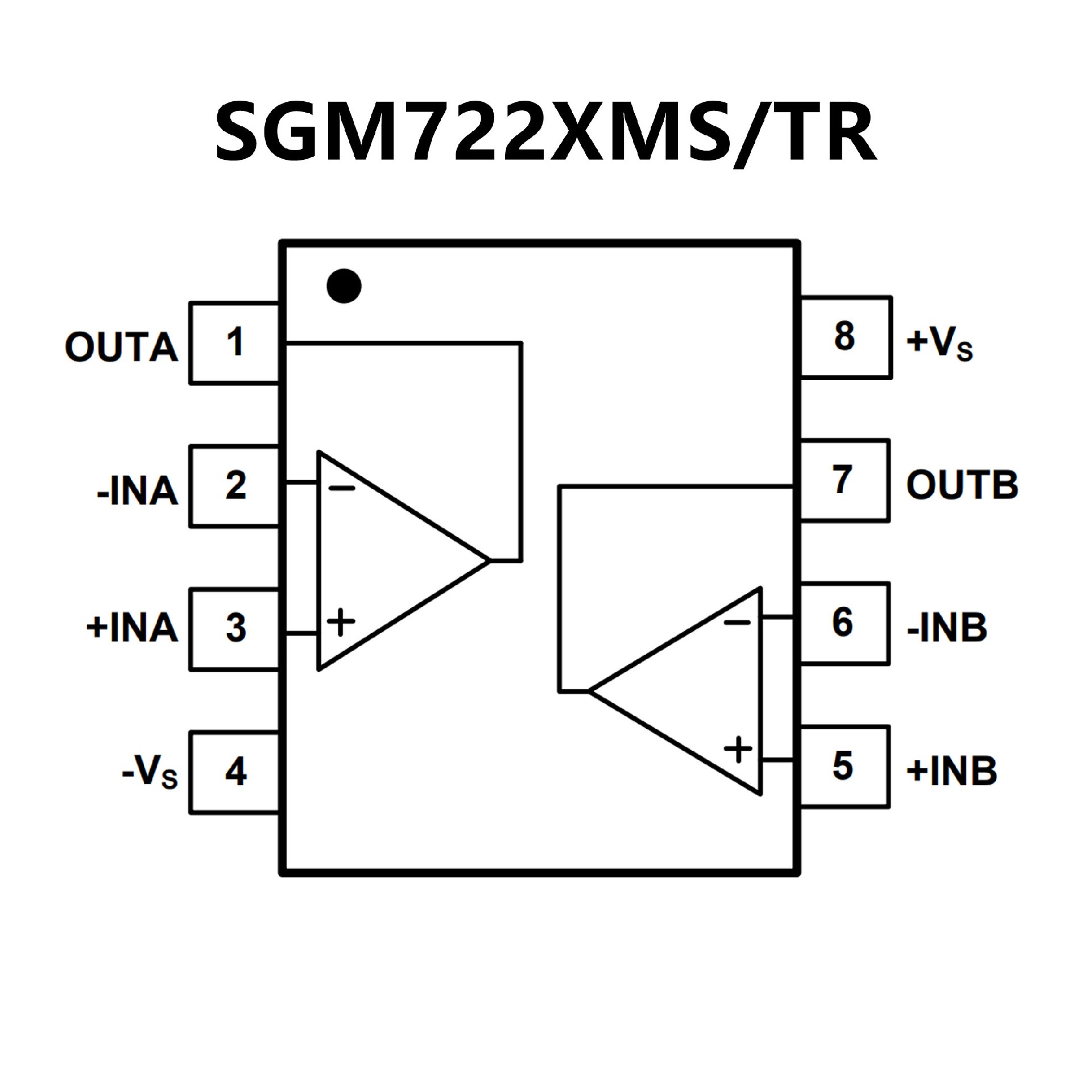

SGM722XMSTR.pdf? Rail-to-Rail Input and Output
? Input Offset Voltage: 4mV (MAX)
? High Gain-Bandwidth Product: 11MHz
? High Slew Rate: 8.5V/μs
? Settling Time to 0.1% with 2V Step: 0.21μs
? Overload Recovery Time: 0.6μs
? Low Noise: 8.5nV/√Hz at 10kHz
? Supply Voltage Range: 2.1V to 5.5V
? Input Voltage Range: -0.1V to 5.6V with VS = 5.5V
? Low Power:SGM721/3: 1.2mA (TYP)SGM722/4:
1.1mA/Amplifier (TYP)SGM723 Less than 1μA when Disabled
? -40℃ to +125℃ Operating Temperature Range
? Small Packaging:
SGM721 Available in Green SC70-5, SOT-23-5 andSOIC-8 Packages
SGM722 Available in Green MSOP-8, SOIC-8 andTSSOP-8 Packages
SGM723 Available in Green SOT-23-6 and SOIC-8Packages
SGM724 Available in Green TSSOP-14 andSOIC-14 Packages
? 200μA Supply Current per Amplifier
? 3.7 MHz Bandwidth
? Output Swing to Within 10 mV of Either Rail
? Input Voltage Range Exceeds the Rails
? 3 V/μs Slew Rate
? 25 nV/√Hz Input Voltage Noise
? Replaces KM4170 and KM4270
? FAN4174 Competes with OPA340 and
TLV2461; Available in a SOT23?5 Package

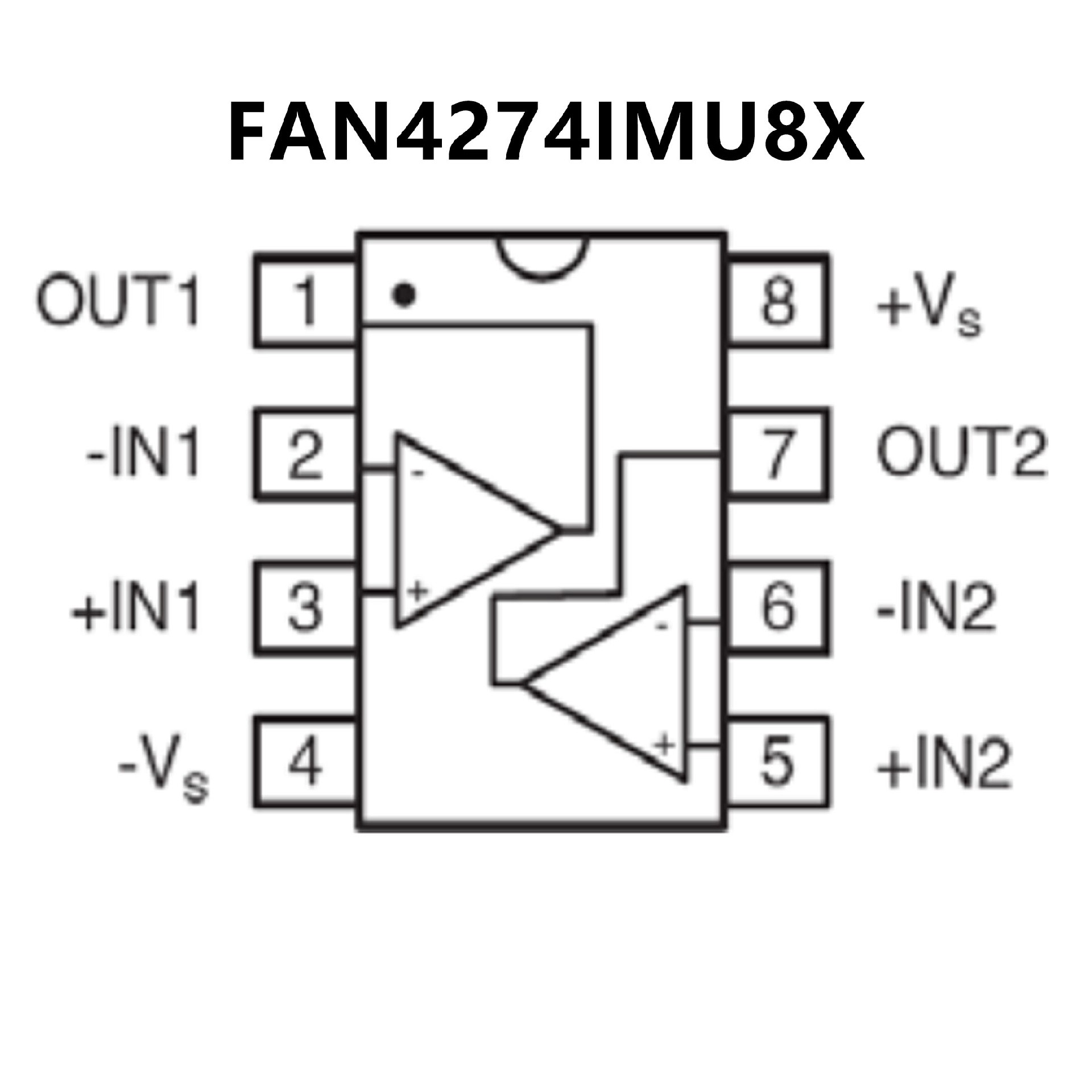

? FAN4274 Competes with OPA2340 and
TLV2462; Available in MSOP?8 Package
? Fully Specified at +5 V Supplies
? These are Pb?Free Devices
