SGM7303.pdf? 3-lane, 2:1 switches that support D-PHY and C-PHY
? Data rate support: up to 3.5Gsps C-PHY, up to 4.5Gb/s
D-PHY.
? Bandwidth: 6.0 GHz Typical
? Low Crosstalk: -30 dB@2.25 GHz
? Input Signals 0 to 1.3V
? RON: 5.0Ω Typical LP & HS MIPI
? ?RON: 0.1Ω Typical LP & HS MIPI
? RON_FLAT: 0.3Ω Typical LP & HS MIPI
ICCZ: 1μA Maximum
ICC: 15μA Typical
? Skew of Opposite Transitions of the Same Output: 2ps
Typical
? VDD Operating Range: 1.5V to 3.6V
? ESD Tolerance: 2kV HBM
? Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2)
? Halogen and Antimony Free. “Green” Device (Note 3)
? For automotive applications requiring specific change control
(i.e. parts qualified to AEC-Q100/101/200, PPAP capable,
and manufactured in IATF 16949 certified facilities), please
contact us or your local Diodes representative.
? Packaging (Pb-free & Green):

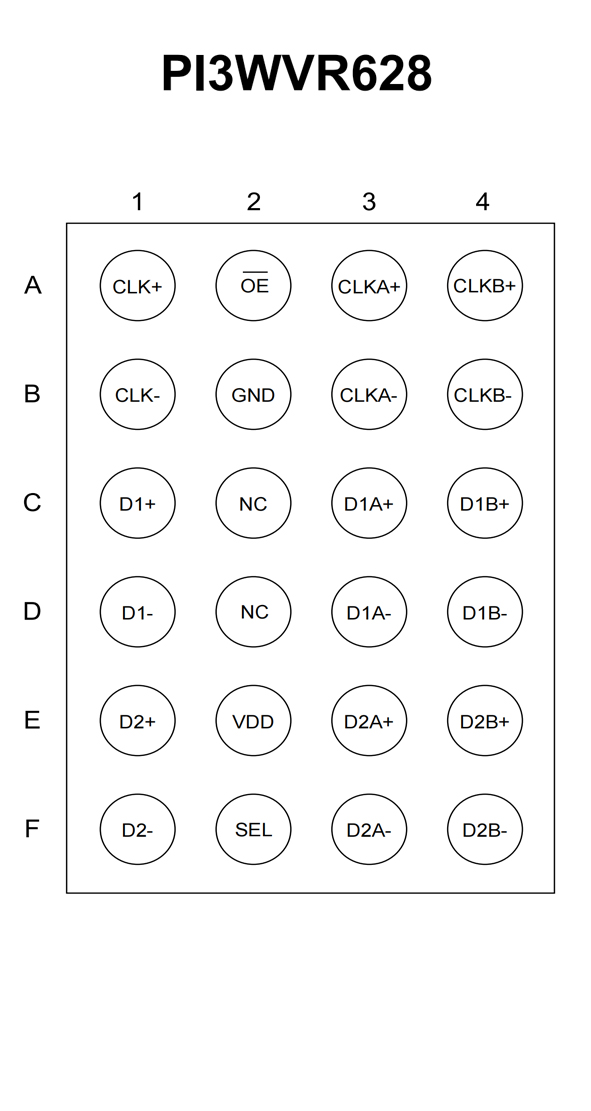

24-Pin, X1-LGA2417-24 (1.7mm x 2.4mm) (XB)
