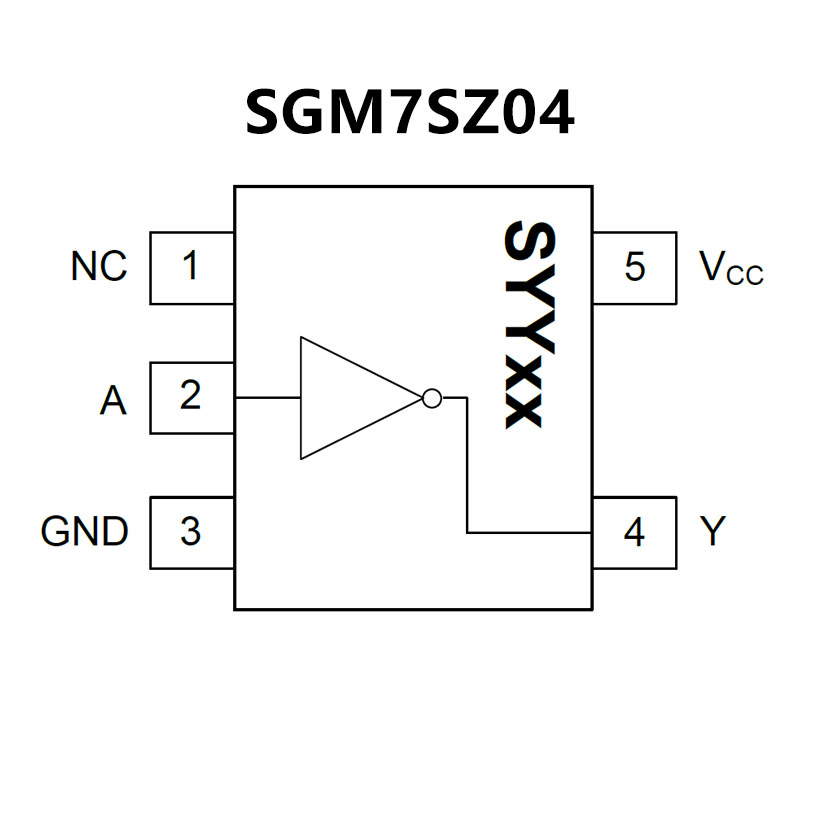

SGM7SZ04XN5G.pdf? Ultra-High Speed: tPD = 4.2ns (TYP) into 50pF
at VCC = 3.3V
? High Output Drive: ±24mA at VCC = 3V
? Broad VCC Operating Range: 1.65V to 5.5V
? Matches Performance of LCX Operated at
VCC = 3.3V
? Power Down High-Impedance Input/Output
? Over-Voltage Tolerant Input Facilitates 5V to 3V
Translation
? Available in Green UTDFN-1.45×1-6L,
SC70-5and SOT-23-5 Packages
? ESD Protection Exceeds JESD 22
2000-V Human Body Model (A114-A)
200-V Machine Model (A115-A)
1000-V Charged-Device Model (C101)
? Available in the Texas Instruments
NanoFree? Package
? Supports 5-V VCC Operation
? Input and Open-Drain Output Accept
Voltages up to 5.5 V
? Maximum tpd of 4.5 ns at 3.3 V at 125°C
? Low Power Consumption, 10-μA Maximum ICC
? ±24-mA Output Drive at 3.3 V for open-drain
devices
? Ioff Supports Partial-Power-Down Mode and Back-
Drive Protection
? Latch-Up Performance Exceeds 100 mA Per
JESD 78, Class II
? Can Be Used For Up or Down Translation
? Schmitt Trigger Action on All Ports
