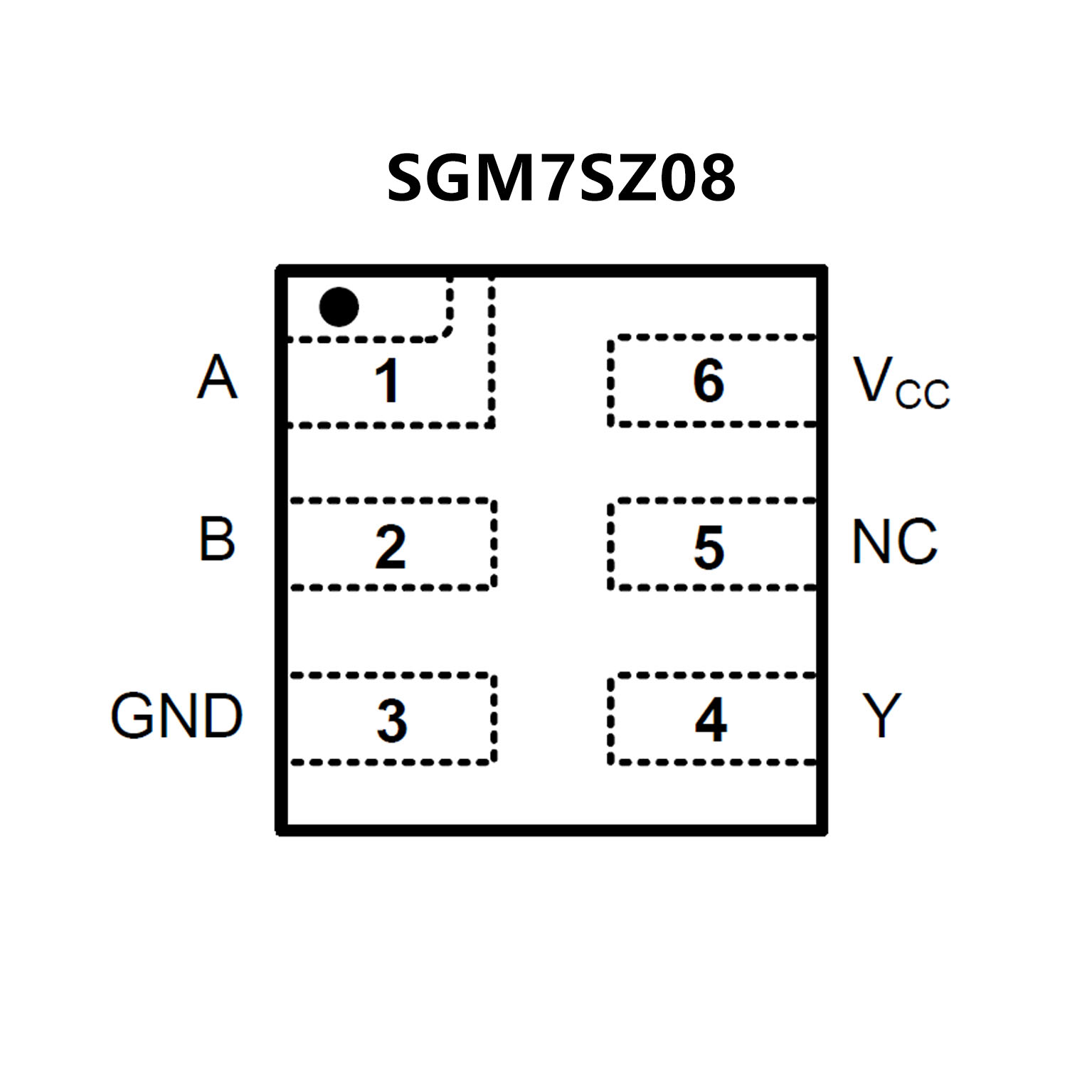

SGM7SZ08.pdf? Ultra-High Speed: tPD = 3.6ns (TYP) into 50pF
at VCC = 3.3V
? High Output Drive: ±24mA at VCC = 3V
? Broad VCC Operating Range: 1.65V to 5.5V
? Matches Performance of LCX Operated at VCC = 3.3V
? Power Down High-Impedance Inputs/Output
? Over-Voltage Tolerant Inputs Facilitate 5V to 3V
Translation
? Available in Green SOT-23-5, SC70-5, XTDFN-1×1-6L
and UTDFN-1.45×1-6L Packages

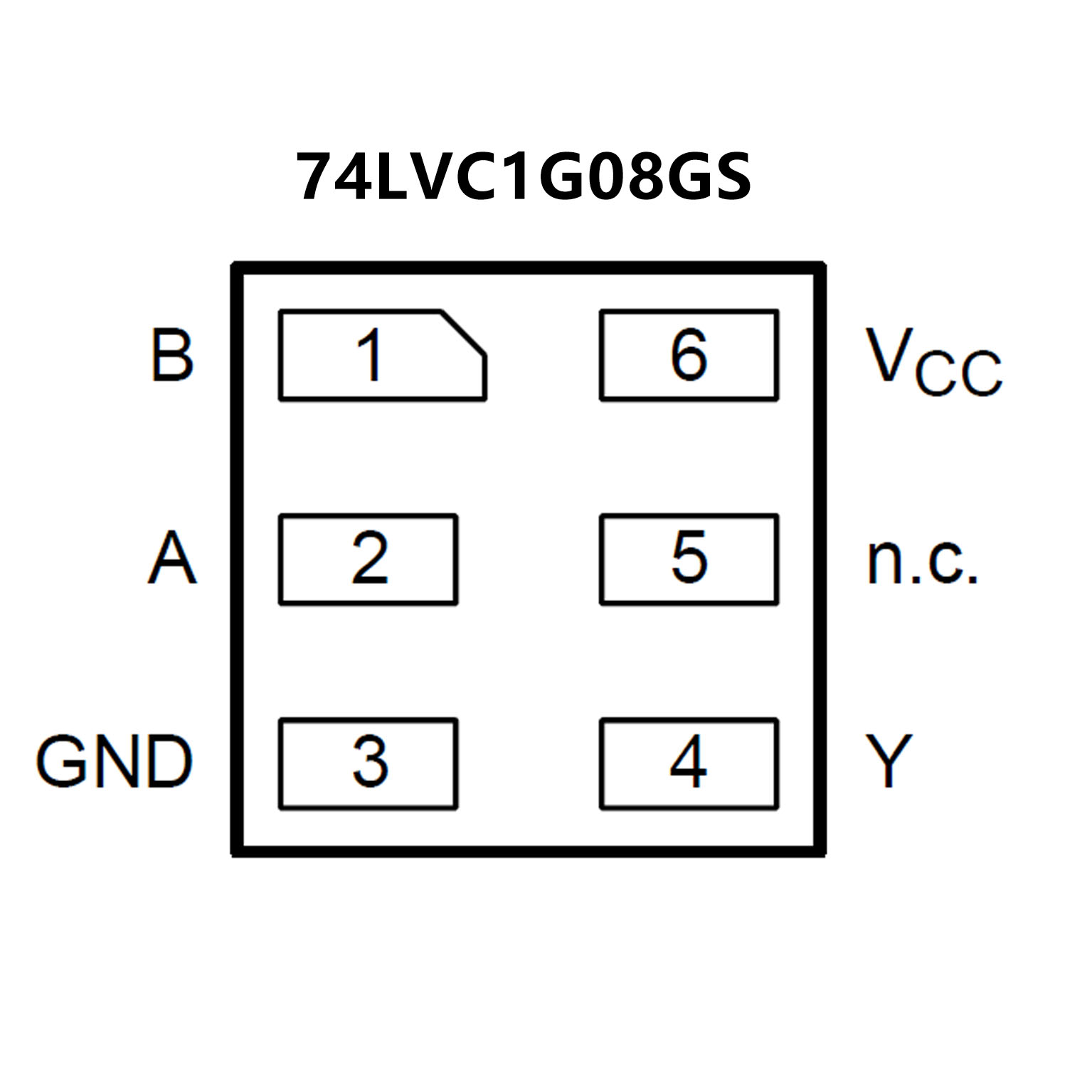

? Wide supply voltage range from 1.65 V to 5.5 V
? High noise immunity
? ±24 mA output drive (VCC = 3.0 V)
? CMOS low power dissipation
? Direct interface with TTL levels
? Overvoltage tolerant inputs to 5.5 V
? IOFF circuitry provides partial Power-down mode operation
? Latch-up performance ≤ 250 mA
? Complies with JEDEC standard:
JESD8-7 (1.65 V to 1.95 V)
JESD8-5 (2.3 V to 2.7 V)
JESD8C (2.7 V to 3.6 V)
JESD36 (4.5 V to 5.5 V)
? ESD protection:
HBM JESD22-A114F exceeds 2000 V
MM JESD22-A115-A exceeds 200 V
? Multiple package options
? Specified from ?40 °C to +85 °C and ?40 °C to +125 °C
