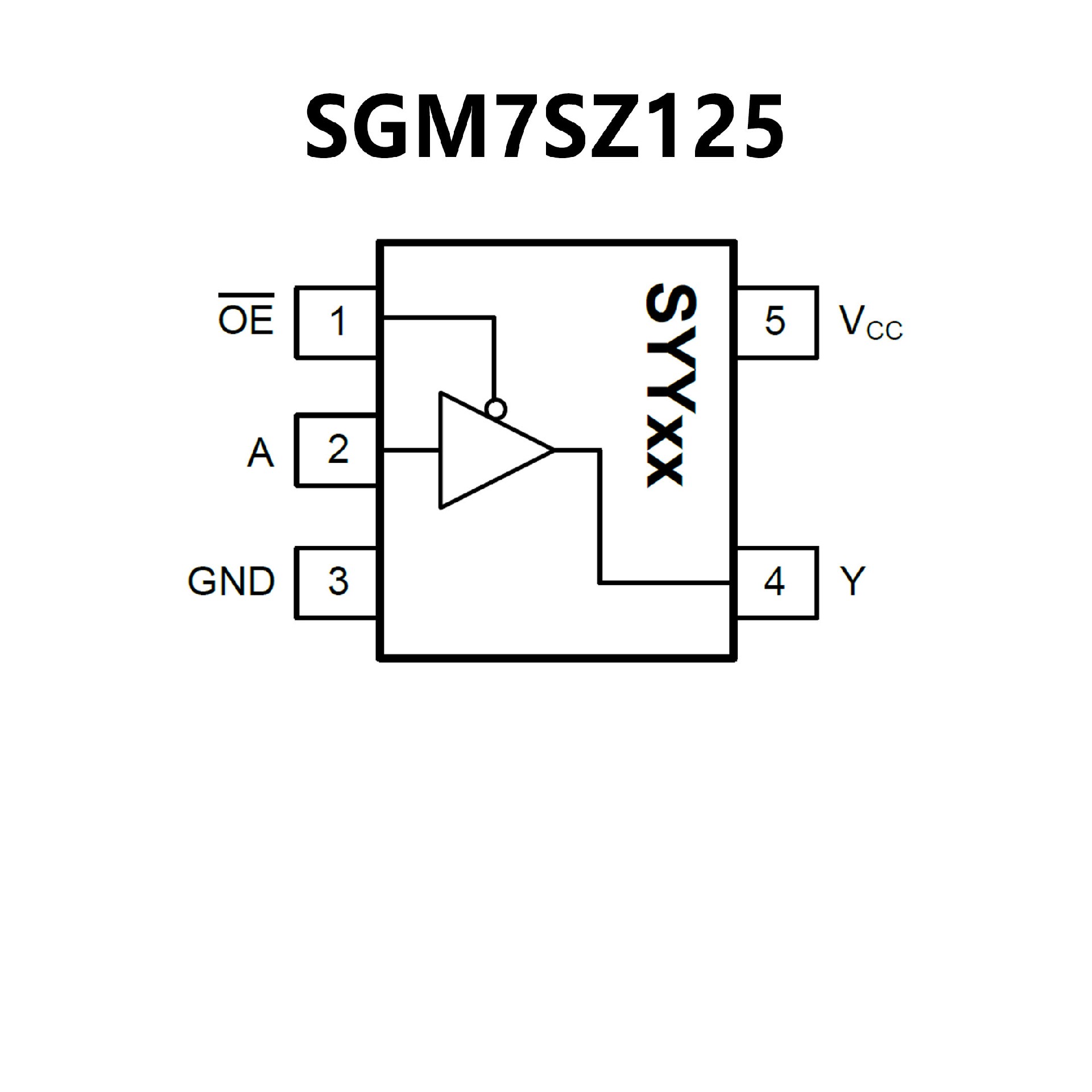

SGM7SZ125.pdf? Ultra-High Speed: tPD = 3.5ns (TYP)
into 50pFat VCC = 3.3V
? High Output Drive:
±24mA at VCC = 3V
? Broad VCC Operating
Range: 1.65V to 5.5V
? Matches Performance of LCX
Operated atVCC = 3.3V
? Power Down High-Impedance
Inputs/Output
? Over-Voltage Tolerant Inputs
Facilitate 5V to 3VTranslation
? Available in Green SOT-23-5
and SC70-5 Packages

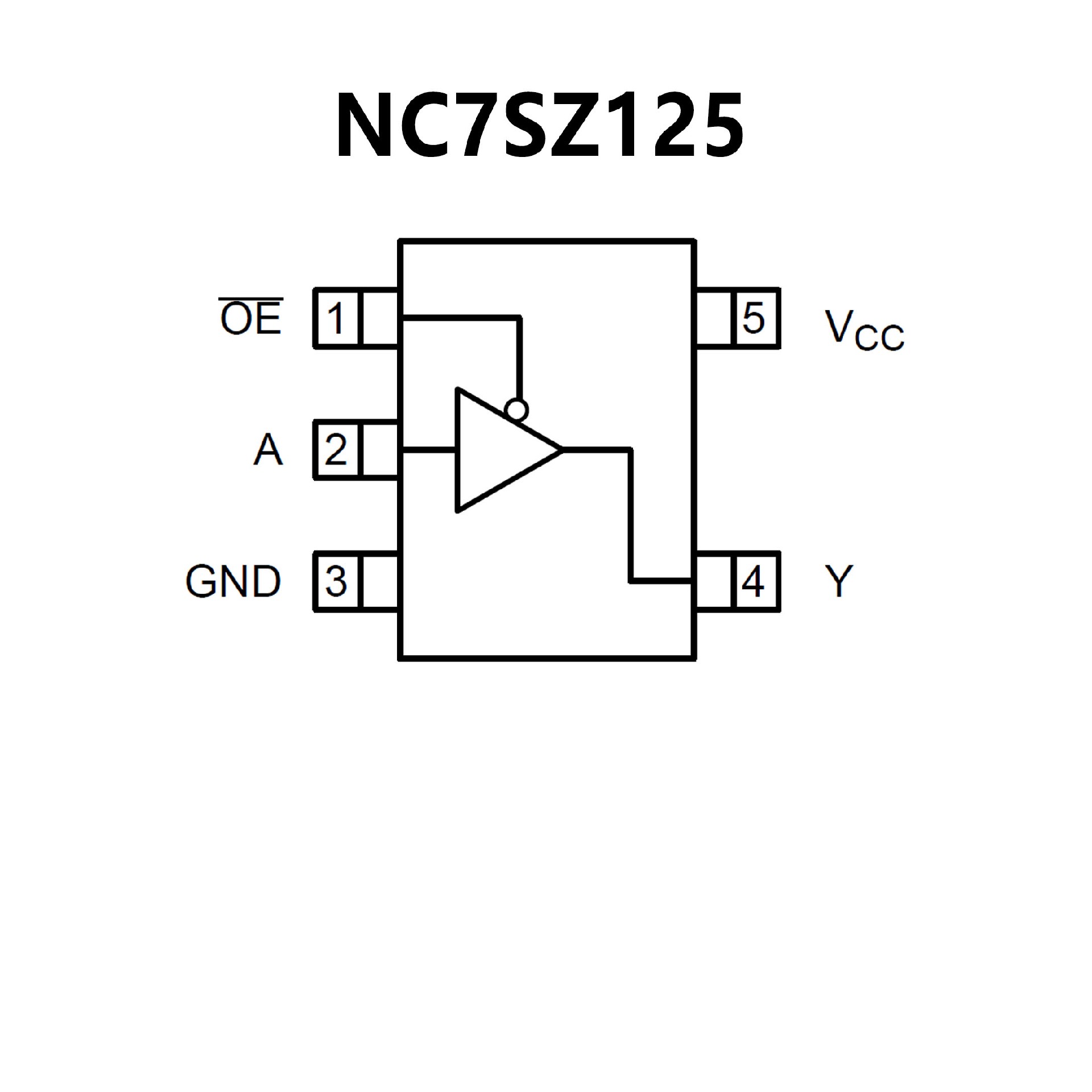

? Ultra?High Speed: tPD = 2.6
ns (Typical) into 50 pF at 5 V VCC
? High Output Drive: ±24 mA at 3 V VCC
? Broad VCC Operating Range: 1.65 V to 5.5 V
? Matches Performance of LCX
when Operated at 3.3 V VCC
? Power Down High?Impedance
Inputs / Outputs
? Over?Voltage Tolerance Inputs
Facilitate 5 V to 3 V Translation
? Proprietary Noise / EMI
Reduction Circuitry
? Ultra?Small MicroPak? Packages
? Space?Saving SC?74A and
SC?88A Packages
? These Devices are Pb?Free, Halogen
Free/BFR Free and are RoHSCompliant
