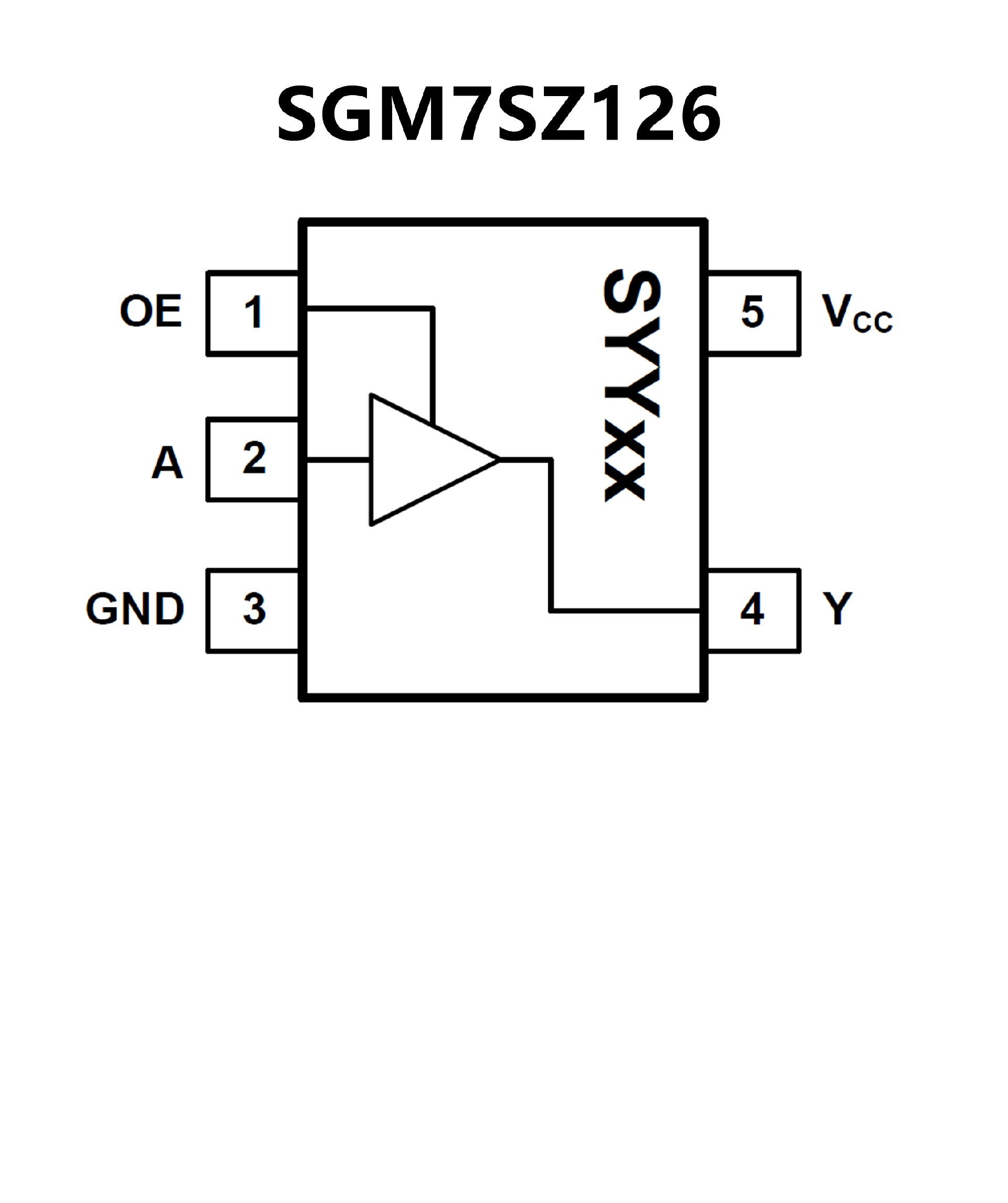

SGM7SZ126.pdf? Ultra-High Speed: tPD = 3.4ns (TYP) into 50pF
at VCC = 3.3V
? High Output Drive: ±24mA at VCC = 3V
? Broad VCC Operating Range: 1.65V to 5.5V
? Matches Performance of LCX Operated at VCC = 3.3V
? Power Down High-Impedance Inputs/Output
? Over-Voltage Tolerance Inputs Facilitate 5V to 3V
Translation
? Available in Green SOT-23-5 and SC70-5 Packages

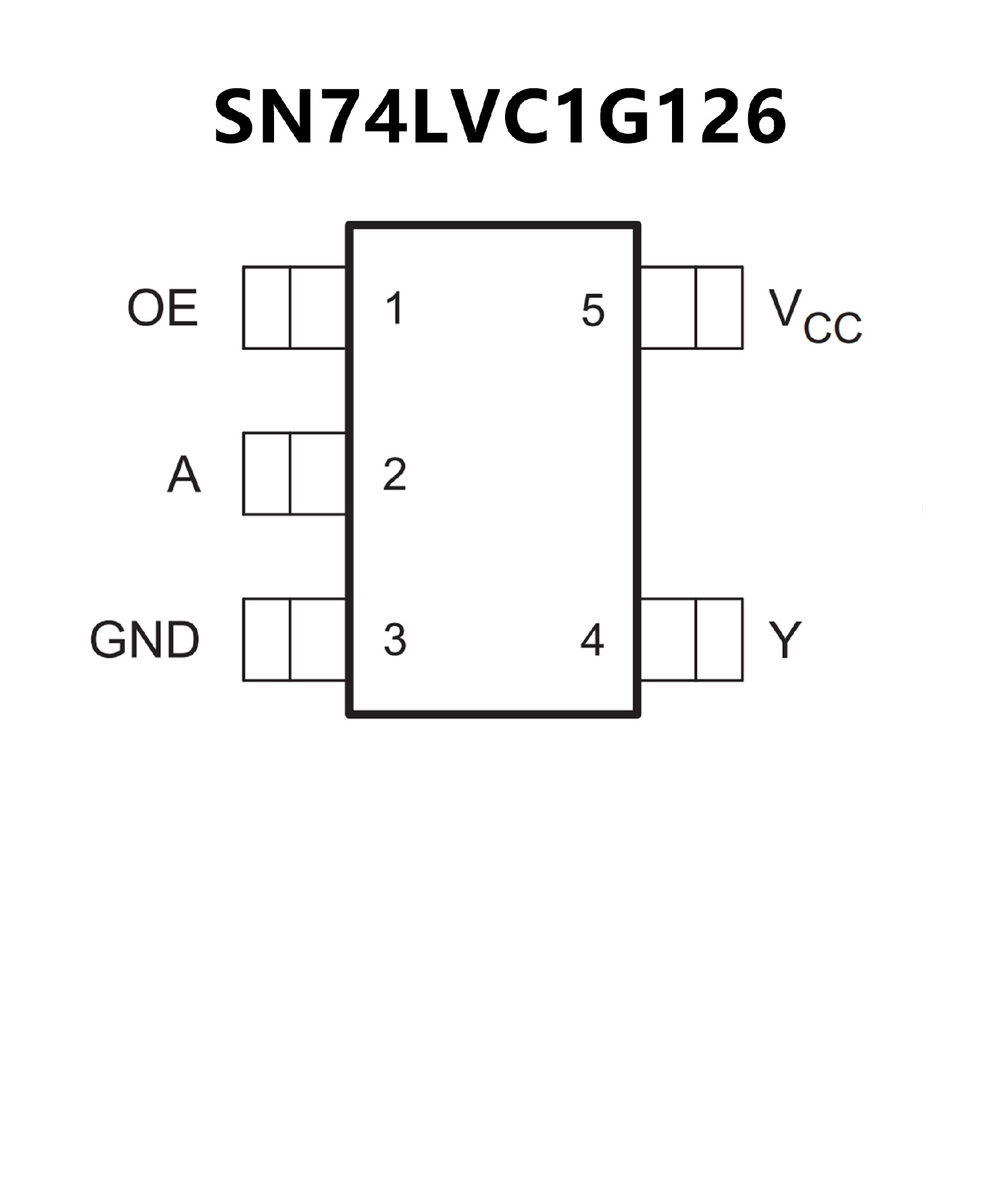

? Available in the Texas Instruments
? NanoFree? Package
? Supports 5-V VCC Operation
? Inputs Accept Voltages to 5.5 V
? Provides Down Translation to VCC
? Max tpd of 3.7 ns at 3.3 V
? Low Power Consumption, 10-μA Max ICC
? ±24-mA Output Drive at 3.3 V
? Ioff Supports Live Insertion, Partial-Power-Down
Mode, and Back Drive Protection
? Latch-Up Performance Exceeds 100 mA
Per JESD 78, Class II
? ESD Protection Exceeds JESD 22
2000-V Human-Body Model
200-V Machine Model
1000-V Charged-Device Model
