Octal Buffers/Line Drivers with 3-State Outputs,SGM7SZ244XTS20GTR-Replace-AiP74HC244TA.
SGM7SZ244XTS20G
SGM7SZ244XTS20G.pdf
SGM7SZ244XTS20G.pdfFEATURES
? Wide Operating Voltage Range: 1.8V to 5.0V
? High-Current Outputs Drive Up to 15 LSTTL
Loads
? 3-State Outputs Drive Bus Lines or Buffer
Memory Address Registers
? Low Power Consumption, ICC: 25μA (MAX)
? Typical tPD = 8.9ns at 5.0V
? ±20mA Output Drive at 5.0V
? Low Input Current: ±8μA (MAX)
? -40℃ to +125℃ Operating Temperature Range
? Available in a Green TSSOP-20 Package
PIN CONFIGUTION
優(yōu)勢替代
FEATURES
? Input levels:
For AiP74HC244: CMOS level
For AiP74HCT244: TTL level
? Octal bus interface
? Non-inverting 3-state outputs
? Specified from -40℃ to +105℃
? Packaging information: DIP20/SOP20/TSSOP20

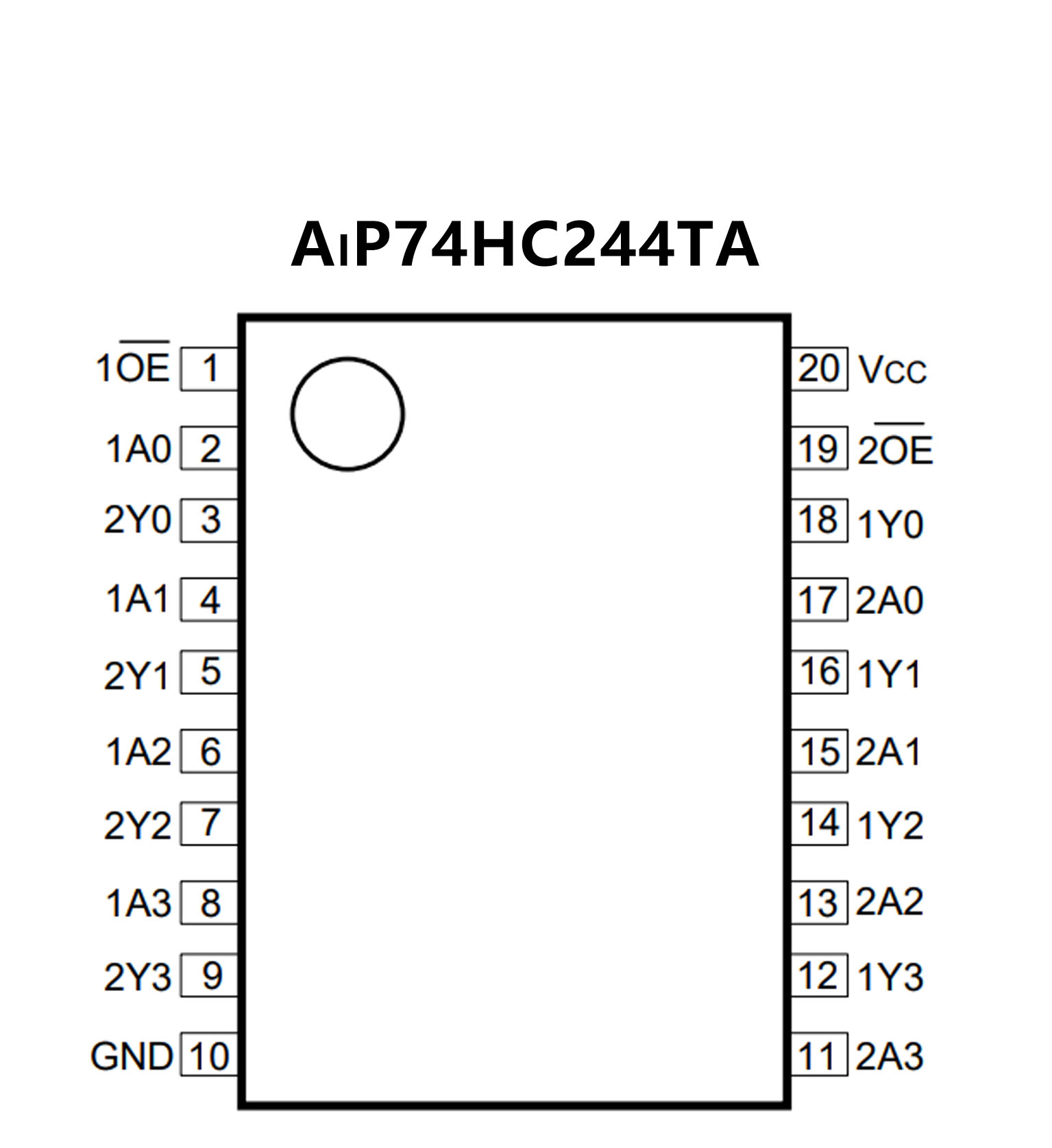

PIN CONFIGUTION
