SGM7SZ245.pdf? Wide Operating Voltage Range: 1.8V to 5.0V
? High-Current 3-State Outputs Drive Bus
LinesDirectly or Up to 15 LSTTL Loads
? Low Power Consumption, ICC: 13μA (MAX)
? Typical tPD = 8.9ns at 5.0V
? ±20mA Output Drive at 5.0V
? Low Input Current: ±8μA (MAX)
? Available in Green TSSOP-20,
TQFN-5.5×3.5-24Land TQFN-3×3-20L Packages

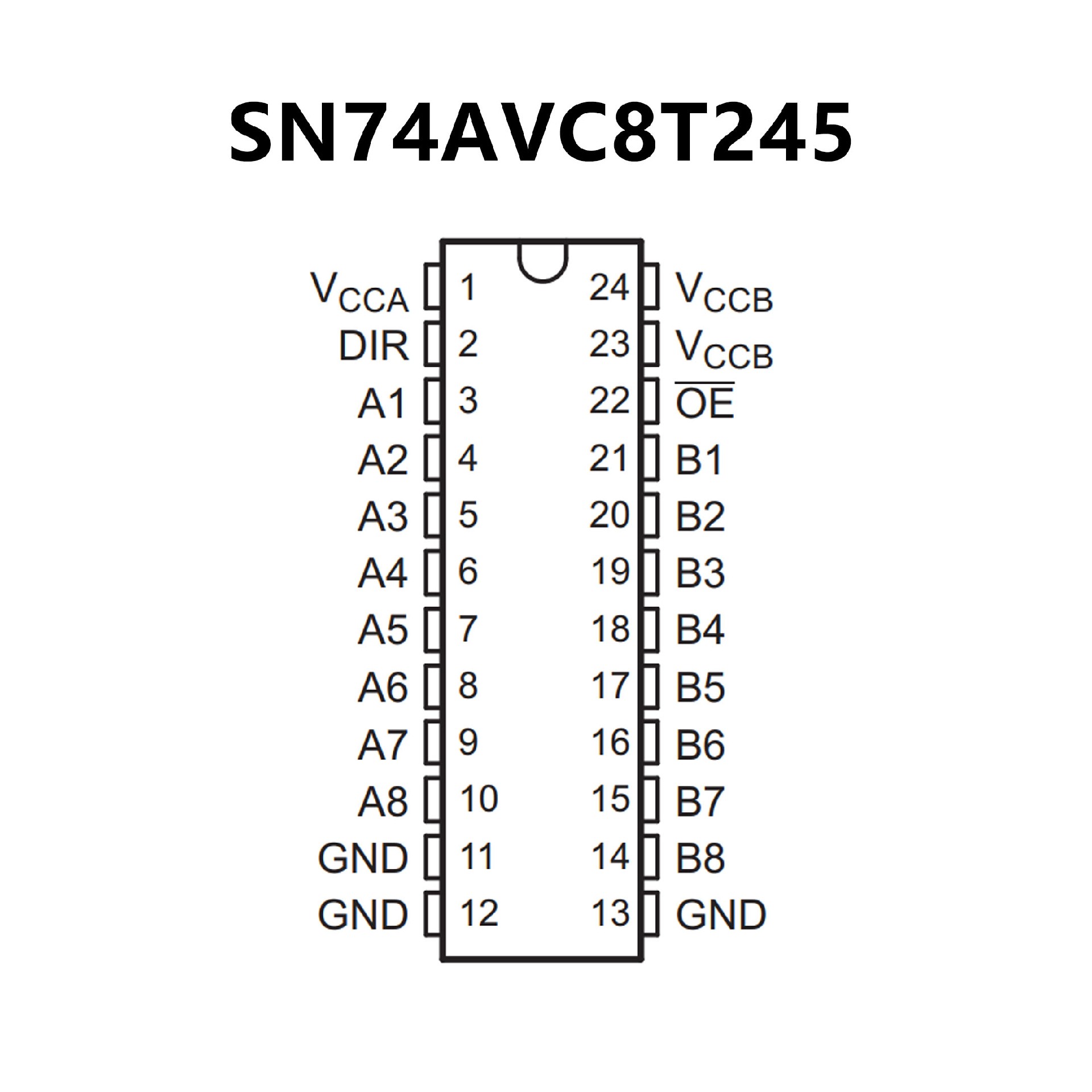

? Latch-Up Performance Exceeds 100 mA Per
JESD 78, Class II
? ESD Protection Exceeds JESD 22
8000-V Human-Body Model (A114-A)
200-V Machine Model (A115-A)
1000-V Charged-Device Model (C101)
? Control Inputs VIH/VIL Levels Are Referenced to
VCCA Voltage
? VCC Isolation Feature – If Either VCC Input Is at
GND, All I/O Ports Are in the High-Impedance State
? Ioff Supports Partial Power-Down Mode Operation
? Fully Configurable Dual-Rail Design Allows Each
Port to Operate Over the Full 1.4-V to 3.6-V
Power-Supply Range
? I/Os Are 4.6-V Tolerant
? Maximum Data Rates
170 Mbps (VCCA < 1.8 V or VCCB < 1.8 V)
320 Mbps (VCCA ≥ 1.8 V and VCCB ≥ 1.8 V)
