Octal Bus Transceiver with 3-State Outputs, 7SZ245XTQG20G/TR Replace 74HC245PW.
SGM7SZ245
SGM7SZ245.pdf
SGM7SZ245.pdfFEATURES
? Wide Operating Voltage Range: 1.8V to 5.0V
? High-Current 3-State Outputs Drive Bus Lines
Directly or Up to 15 LSTTL Loads
? Low Power Consumption, ICC: 0.1μA (TYP)
? Typical tPD = 12ns
? ±20mA Output Drive at 5V
? Low Input Current: ±0.1nA (TYP)
? Available in Green TSSOP-20, TQFN-5.5×3.5-24L
and TQFN-3×3-20L Packages

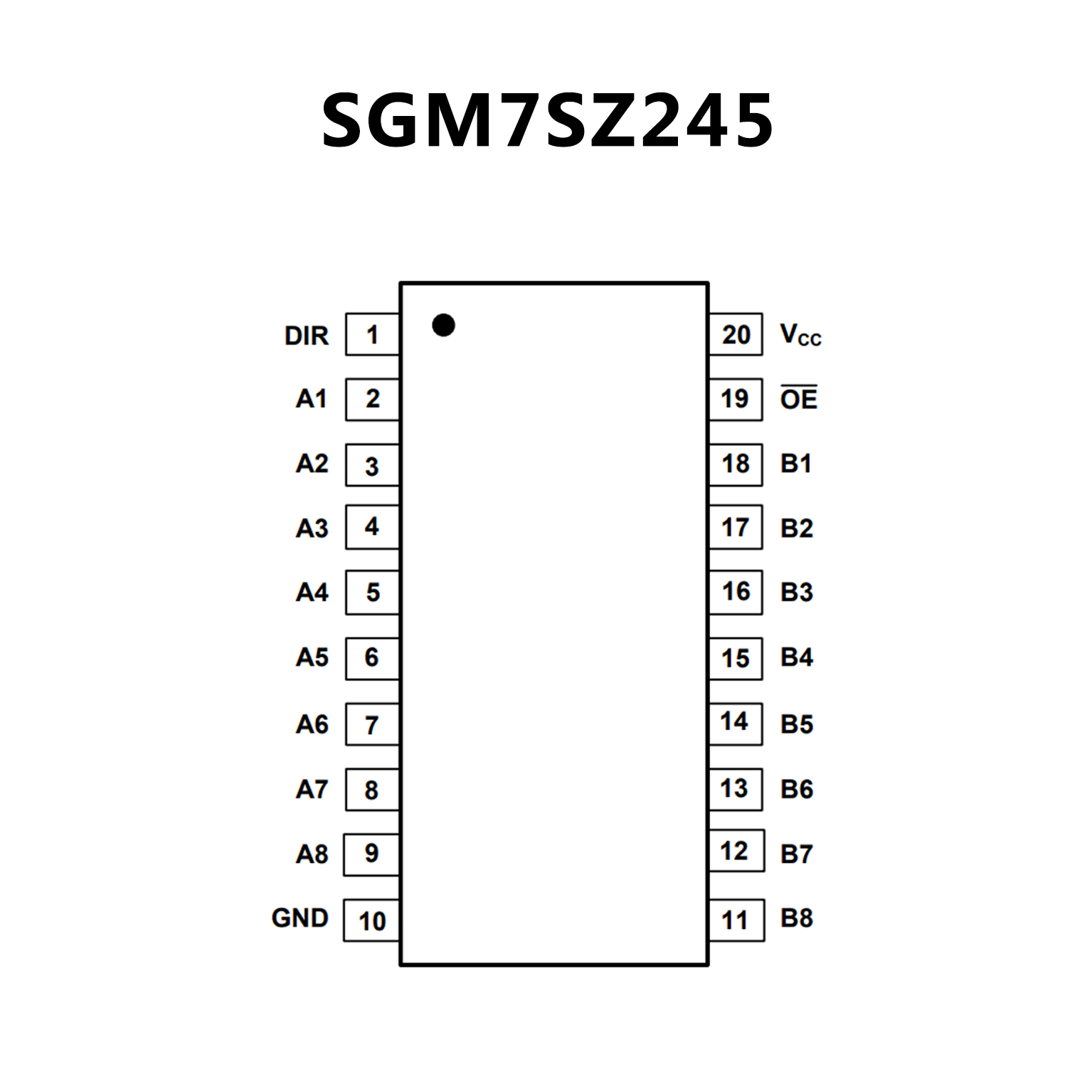

PIN CONFIGUTION
優(yōu)勢替代
FEATURES
? Complies with JEDEC standard JESD7A
? Input levels:
For 74HC245: CMOS level
For 74HCT245: TTL level
? Octal bidirectional bus interface
? Non-inverting 3-state outputs
? ESD protection:
HBM JESD22-A114F exceeds 2000 V
MM JESD22-A115-A exceeds 200 V
? Multiple package options
? Specified from -40 ℃ to +85 ℃ and from -40 ℃ to +125 ℃
PIN CONFIGUTION
